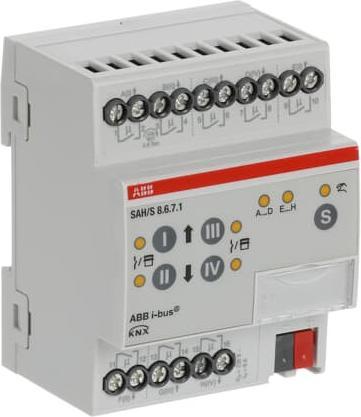

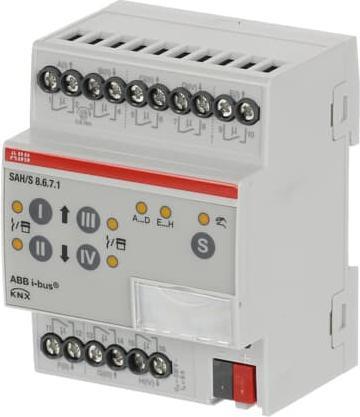

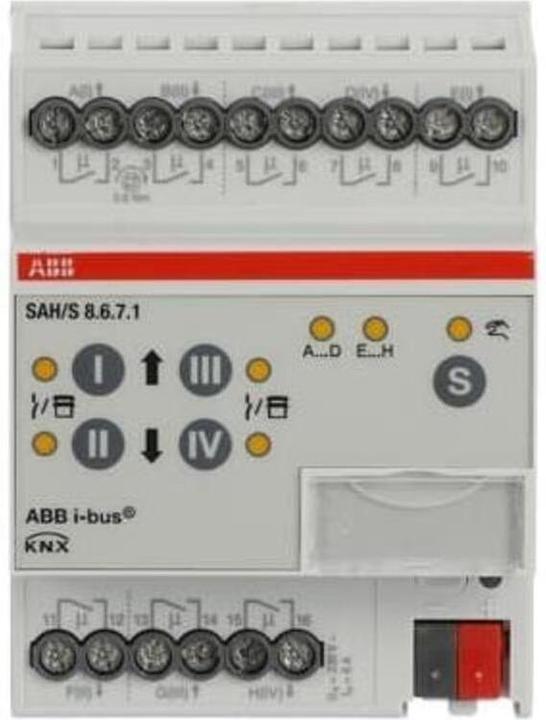

ABB SAH/S8.6.7.1

ABB Stotz S&J Switching/Shutter Actuator SAH/S8.6.7.1

Manufacturer: ABB Stotz S&J
Designation: 8-channel Switching/Shutter Actuator 6A
Type: SAH/S8.6.7.1
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: DIN Rail
Width in Division Units: 4
Local/Manual Operation: yes
With LED Display: yes
Max. Switching Power: 1200 W
Max. Switching Power LED: 250 W
Output Power: 1200 W
Suitable for C-Load: no
Max. Number of Switching Outputs: 8
Max. Switching Current: 6 A
Rated Current: 6 A
Rated Operating Voltage: 230 V
Multiple Phases Connectable: yes
With Bus Coupling: yes
Bus Module Removable: no
Min. Depth of Device Box: 63.5 mm
Modular Expansion Capability: no
Protection Class (IP): IP20

The 6A Combi Actuator features 8 independent switching relays, allowing for individual control of electrical consumers or paired 230V AC shutters via ABB i-bus®. Manual operation of the outputs is possible, and the manual operation of the device can be locked. The switching or operating state of the output is displayed. This is a KNX device and does not require an additional power supply.
EAN: 4016779066310.
