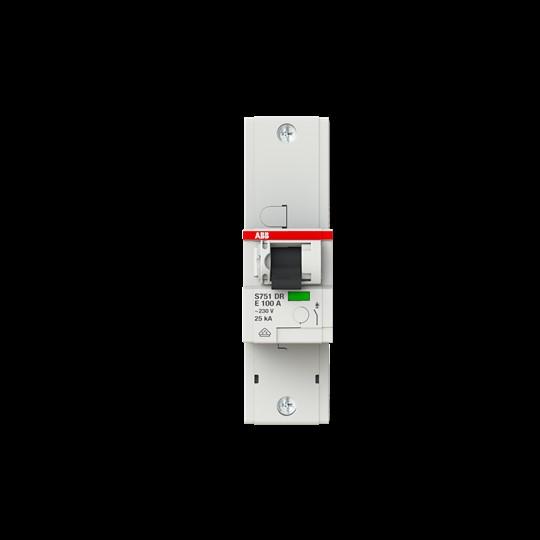

ABB S751DR-E100

Ratings
BrandMore from ABB
Currently out of stock
Free shipping starting at 50.–

Product details

The S750DR in 80 and 100A are selective main circuit breakers (SH switches) VDE certified according to IEC / EN 60947-2 and are used as group or backup circuit breakers instead of NH fuses or other overcurrent protection devices in main distributions or switchgear. They provide complete selectivity for upstream and downstream protective devices due to the unique energy limitation in case of a fault.

The S750DR does not require a neutral conductor connection; they are voltage-independent. No auxiliary power is needed for switching on or off, nor for the protective function. The design ensures reliable fulfillment of the protective function, regardless of network disturbances or network type.

The S750DR is designed for mounting on DIN rails. The 3-pole devices can be connected to a 40mm busbar system using the busbar adapter S750DR-QA.

Application: Purpose-built facilities, industry, safety-critical areas, and to ensure high system availability. For example, in buildings for gatherings of people (DIN VDE 0100-718) and in medically used areas (DIN VDE 0100-710).

Key specifications

Circuit breaker type
Miniature circuit breaker
Mounting type
Top-hat rail
number of poles
1
Length
92 mm
Width
35 mm

General information

Item number
31980422
Manufacturer
ABB
Category
Residual-current device
Manufacturer no.
2CDH781010R0822
Release date
24.10.2022

Colour

Colour
Multicoloured
Exact colour description
Multicoloured

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
Mounting type
Top-hat rail
number of poles
1
Rated current
100 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
690 V
Protection type (IP code)
IP20, IP40

Origin

Country of origin
Bulgaria

Scope of delivery

Items per sales unit
3 pcs.

Product dimensions

Length
92 mm
Width
35 mm
Height
130 mm
Weight
400 g
