Product details
Range = System M Pro
Series = S200
Number of poles = 1
Rated current = 3 A
Tripping characteristic = Type K
AC rated voltage = 230 V
breaking capacity = 6 kA
length = 88mm
width = 17.5mm
Depth = 69mm

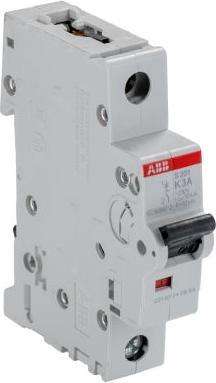

Type K, 1 pole, 6 kA - System Pro M Compact. The ABB S200 series of circuit breakers provides a compact solution to protection requirements. These miniature DIN rail mounted overload switches are current limiting and are equivalent to systems with fuses. Type K characteristics are specifically designed to protect motor control circuits and elements used therein. It has a very sensitive thermal curve, combined with a magnetic setting of 8 times the input current rating, high enough to avoid accidental tripping at inrush currents, but gives good protection against overcurrents. DIN rail mounting To BS EN 60898 Touch proof terminals.
