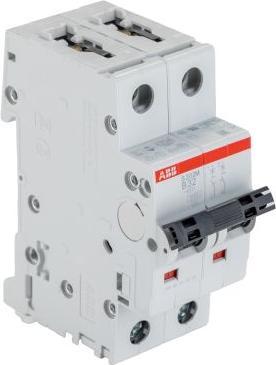

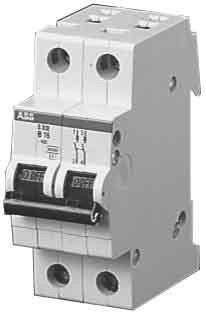

ABB S200 MCB 32A 4 Pole Type B 10kA

Ratings
BrandMore from ABB
Delivered between Sat, 4.4. and Fri, 17.4.
free shipping

number of poles2

Product details

The S 200 M series circuit breakers protect cables and lines from overload and short circuits in accordance with DIN VDE 0100-430 and DIN VDE 0100-530. They meet the construction standards DIN VDE 0641-11 or IEC/EN 60898-1, DIN VDE 0660-101 or IEC/EN 60947-2, as well as UL 1077 and CSA 22.2 No. 235. Their patented terminal block ensures easy and secure connection and handling via a pressure plate. For better visibility during wiring, the connection opening for wires is located above the connection opening for the phase rail. Conductor cross-sections of up to 35 mm² can be directly connected to the device via the terminal block with insulation in protection class IP20. The extensive range of accessories provides everything you need for your installation tasks. Numerous approvals make the S 200 M suitable for worldwide use. Each device undergoes three intensive tests for quality and performance before delivery.

Key specifications

Circuit breaker type
Miniature circuit breaker
Mounting type
Top-hat rail
Width
35 mm
Length
69 mm
number of poles
2

General information

Item number
9720054
Manufacturer
ABB
Category
Residual-current device
Manufacturer no.
2CDS272001R0325 - S202MB32
Release date
24.9.2018

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
Mounting type
Top-hat rail
number of poles
2
Tripping characteristic
B
Rated current
32 A
Rated voltage
440 V
voltage type
AC/DC
Rated insulation voltage Ui
440 V
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
69 mm
Width
35 mm
