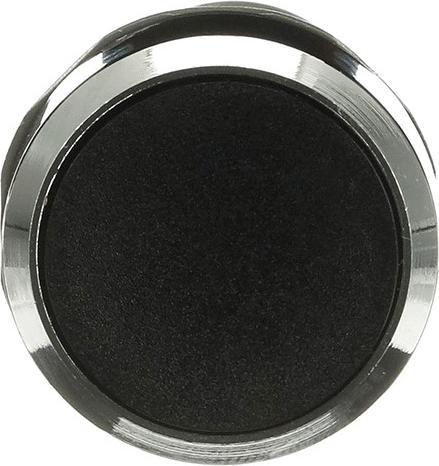

ABB Push button

ABB Stotz S&J Push Button CP2-30B-10

Manufacturer: ABB Stotz S&J
Designation: Push Button
Type: CP2-30B-10
Number of Command Positions: 1
Button Shape: Flat
Button Color: Black
Lens Shape: Round
Hole Diameter: 22 mm
Opening Width: 0 mm
Opening Height: 0 mm
Suitable for Lighting: No
Latching Switching Function: Yes
Momentary: No
Lamp Supply Voltage: 300 V
Number of Contacts as Normally Open: 1
Electrical Connection Type: Screw Connection
With Front Ring: Yes
Material of Front Ring: Metal
Front Ring Color: Chrome
Protection Class (IP): IP67/IP69K
Protection Class (NEMA): 4X

ABB Stotz S&J Push Button CP2-30B-10: Additional Details
Control and signaling devices, series: Plastic Compact. An efficient solution that reduces installation time and costs. The compact series has very high dust and water resistance. By reducing the number of order numbers to the necessary minimum, selection is made easier and time is saved. The all-in-one design allows for quick and easy installation. The following standards and approvals are met: IEC/EN 60947-1: Low-voltage switchgear and controlgear - Part 1: General Rules / IEC/EN 60947-5-1: Low-voltage switchgear and controlgear - Part 5-1: Control devices and switching elements - Electromechanical control devices / IEC/EN 60947-5-5: Low-voltage switchgear and controlgear - Part 5-5: Control devices and switching elements - Electrical emergency stop device with mechanical latching function. The complete list of all technical specifications and standards met can be found in our product data sheets.
