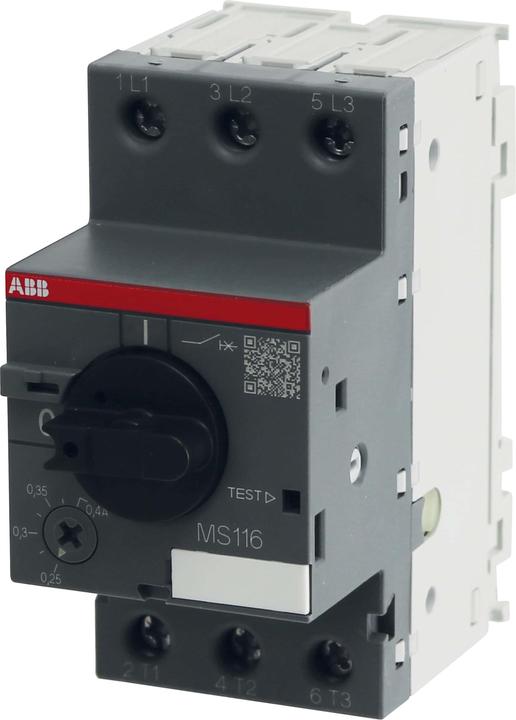

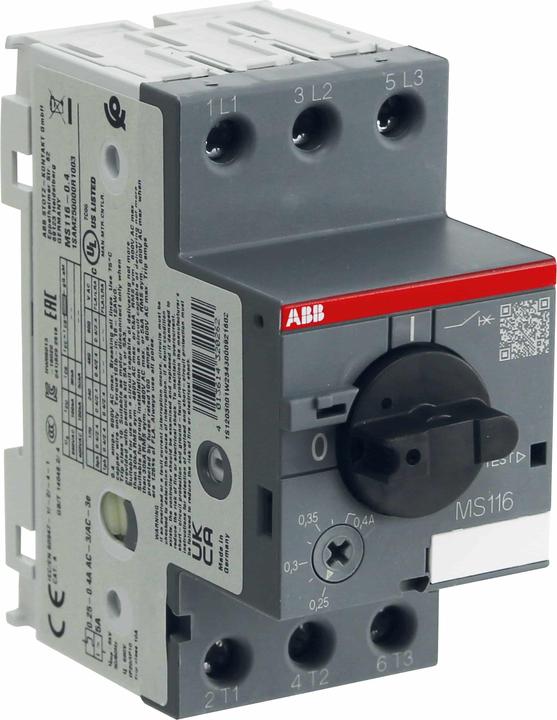

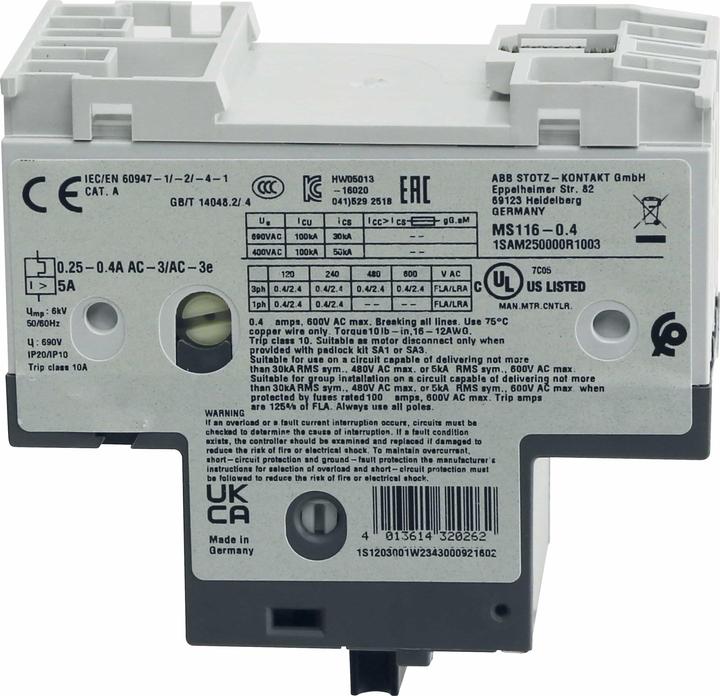

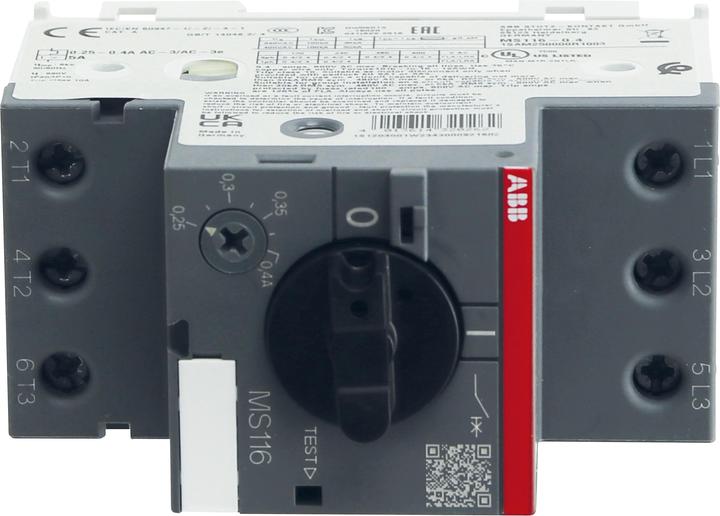

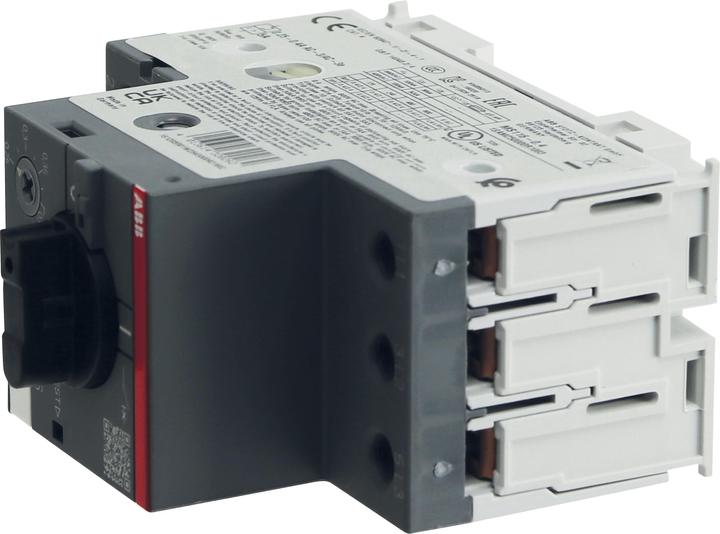

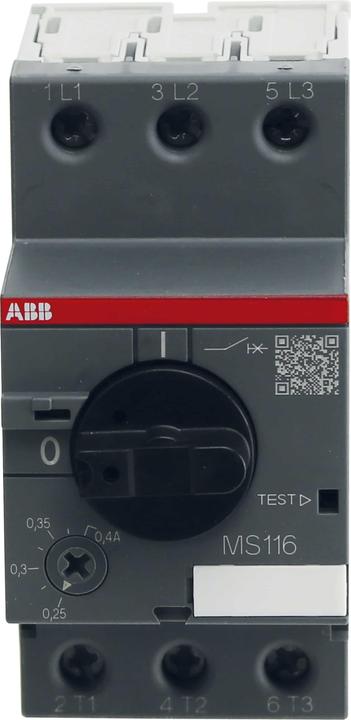

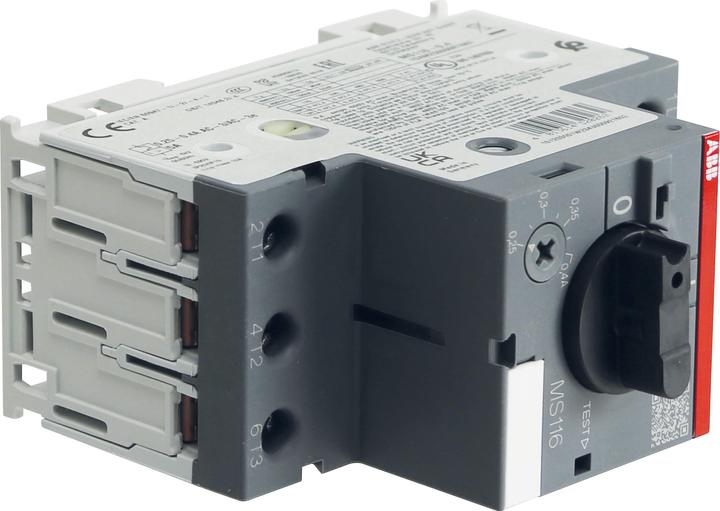

ABB Motor protection switch MS116 - 0.4

Ratings
BrandMore from ABB
Delivered between Wed, 15.4. and Thu, 16.4.
6 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

Motor starter type: Direct starter
Operating voltage: 690 V AC
Protection class: IP20
Phase: 1, 3
Number of poles: 3P
Motor starter mode of operation: Manual
Total length: 90 mm
Housing: Yes
Overall width: 45 mm
Total depth: 80.1 mm
Series: MS116

UL, CSA, ship approvals. MS 116 - Motor protection switch. Economical fuseless protection for drives up to 7.5 kW. Thermal and electromagnetic release. Lockable, can be used as isolator (according to IEC/EN 60947-1). Short-circuit proof up to 50 kA with phase failure sensitivity. Temperature-compensated. Clear switch position indication due to modern twist grip movement. Low storage costs, only 11 current ranges up to 16 A. Overall width 45 mm. Accessories: HKF1 - Auxiliary switch front mounting, HK1 - Auxiliary switch side mounting right, SK1 - Signal contact for general trip indication, side mounting right, IB116 - Insulated housing IP65, QES 4/3N - Insulated housing IP55, SMO 4 - Common terminal for N or PE, for housing QES 4/3 N, UA1-230 - Undervoltage release, side mounting left.

Key specifications

Circuit breaker type
Motor protection switch
number of poles
3
Length
90 mm
Width
45 mm

General information

Item number
9727298
Manufacturer
ABB
Category
Residual-current device
Manufacturer no.
1SAM250000R1003
Release date
24.9.2018

Circuit Breaker Features

Circuit breaker type
Motor protection switch
number of poles
3
Rated voltage
690 V
voltage type
AC
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
18.08 kg
Climate contribution
CHF 0.43

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
90 mm
Width
45 mm
Height
80.10 mm
