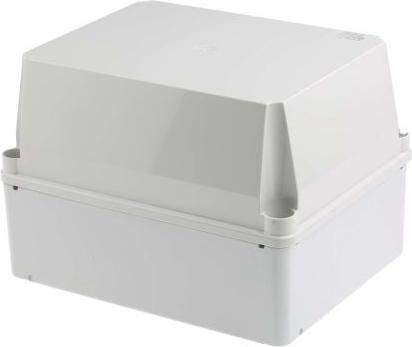

ABB IP65 high lid box, 220x170x150mm

Minimum order 2
Ratings
Delivered the day after tomorrow
Only 4 items in stock at third-party supplier
Supplied by

Product details

Length: 220 mm
Width: 170 mm
Height: 150 mm
Dimensions L x W x H: 220 x 170 x 150
Material: Thermoplastic
Protection class: IP55
Color: gray

This customizable box is made from a self-extinguishing thermoplastic and complies with UL94-V2. It also has resistance to excessive heat and fire up to a temperature of 650 °C according to IEC EN 60695-2-11. The housing is manufactured in accordance with IEC 60670-1 and IEC 60670-22. Waterproof junction box according to IP65. These gray waterproof junction boxes are made from a self-extinguishing thermoplastic that is halogen-free and RoHS compliant. The housing features smooth sides and is equipped with a patented lid and a seal according to protection class IP65.

Features and benefits:
High resistance to heat as well as chemicals and atmospheric substances. Patented lid with seal, produced in a single pressing process. Components can be attached to the back using self-tapping screws (3.5 x 9.5 mm). Box with smooth sides and screw-on lid. Housing color: Gray RAL 7035. Housing material: Self-extinguishing thermoplastic. Installation temperature: –25 °C to +60 °C. IP65 protection class. Impact-resistant according to IK08. RoHS compliant. Halogen-free.

Product application information:
These customizable boxes are designed for low-voltage products and systems and are intended for SMD mounting on walls and ceilings.

Key specifications

Junction box type
Distribution box
Height
150 mm
Width
170 mm
Protection type (IP code)
IP65
Length
220 mm
Item number
10321368

General information

Manufacturer
ABB
Category
Junction box
Manufacturer no.
1SL0862A00
Release date
15.1.2019
External links
Manufacturer's site (de)
Minimum order
2
Minimum order
2

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Plastic
Material
Thermoplastic resin

Junction Box Features

Junction box type
Distribution box

Safety

Protection type (IP code)
IP65

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Height
150 mm
Width
170 mm
Length
220 mm
