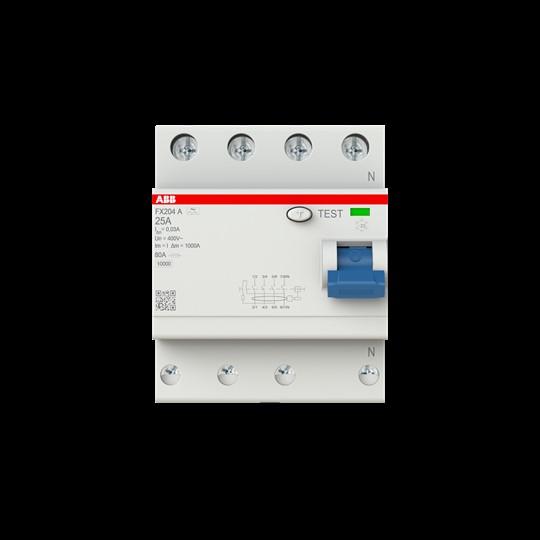

ABB FX204A-25/0.03

Residual current circuit breakers (RCCBs) provide protection for people and property, as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. The FX200 series RCCBs ensure protection against sinusoidal alternating currents and pulsating currents with a smooth direct fault current component of up to 6 mA to ground. They offer fault protection (protection against indirect contact) and additional protection (with I?n = 30 mA). They comply with product standards IEC/EN 61008-1, 61008-2-1, 61543 (VDE 0664 10, 11, 30).

Their patented connection terminals with Push-In technology ensure easy and secure contact and handling. Conductors of up to 25 mm² can be connected to the upper input-side screw terminal. On the output side, the PSX phase rails can be used for cross-wiring. For potential further wiring, conductor cross-sections of up to 10 mm² can be directly connected to the lower additional screw connection terminal at the device, which is rated at protection class IP20. Numerous approvals make the FX200 suitable for use in household and commercial applications.
