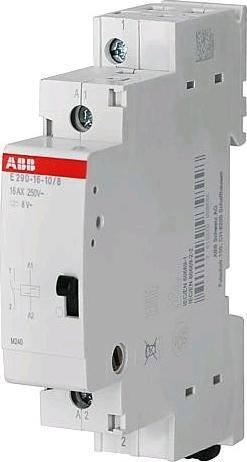

ABB E29016108 Current impulse switch

ABB Stotz S&J Pulse Switch E290-16-10/8

Manufacturer: ABB Stotz S&J
Designation: Pulse Switch 8VAC, 16A, 1NO
Type: E290-16-10/8
Function: electronic for central control
Mounting type: other
Width in division units: 1
Installation depth: 68 mm
Number of contacts as normally open: 1
Control voltage 1: 8 V
Control voltage type 1: AC
Frequency of control voltage 1: 50 Hz
Frequency of control voltage 2: 50 Hz
Rated switching current: 16 A
Supply voltage: 7.2..8.8 V
Voltage type of supply voltage: AC
Max. incandescent lamp load: 3000 W
Max. fluorescent lamp load: 3000 VA
Max. fluorescent lamp load (Duo circuit): 2500 VA
Max. fluorescent lamp load (parallel compensated): 3000 VA
Max. switching current (cos phi 0.6): 16 A
Suitable for manual operation: yes

ABB Stotz S&J Pulse Switch E290-16-10/8: further details

Pulse switches are electromagnetically operated devices that enable simple, energy-saving, and safe lighting control. Typically, pulse switches are controlled via push buttons in situations where the light needs to be operated from at least three different locations. With each control pulse sent to the coil-magnet system, the device returns to its previous position and holds it mechanically until the next control pulse. In the event of a power failure, the last switching position is mechanically maintained. This technology helps to significantly reduce electrical losses and the power consumption of the devices. Due to their very quiet switching noises, pulse switches are also suitable for use in public buildings, hotels, and private residences. Depending on the type, the devices can be controlled with common control voltages and are designed for a rated current of 16 A or 32 A.
