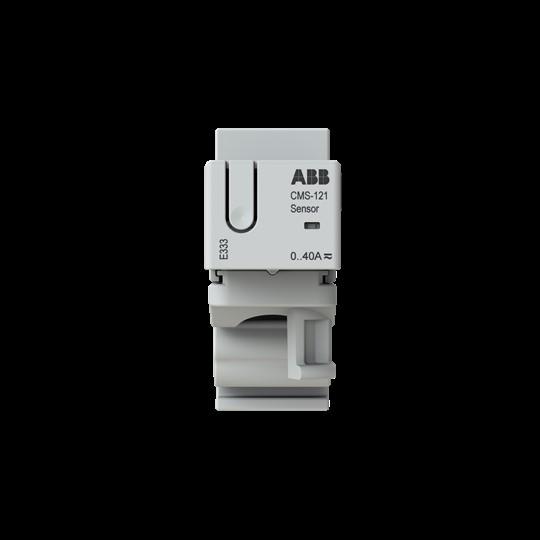

ABB CMS-121DR

ABB Stotz S&J Open-Core Sensors 40A CMS-121DR

Manufacturer: ABB Stotz S&J
Designation: Open-Core Sensors 40A
Type: CMS-121DR
Initial value measuring range current: 0.1 A
Final value measuring range current: 40 A
Frequency of rated current: 50 Hz
Type of analog output: other
Mounting type: other
Integrated configuration function: yes
With switching output: no

ABB Stotz S&J Open-Core Sensors 40A CMS-121DR: additional details
Current measuring sensors CMS for use with the ABB Energy Monitoring InSite SCU100 and CMS-700. The universally applicable sensors for cable mounting ensure precise and effective measurement with a mounting width of 18 mm. Due to their unique compactness, the CMS sensors are also ideal for retrofitting in existing installations. The sensors measure TRMS, AC, and DC currents (current, min/max, and hold values) and transmit these values via a 4-pole flat ribbon cable to the Control Unit. They comply with DIN EN 61010-1.
EAN: 7612271453091.
