ABB Built-in switch

Ratings
Delivered between Wed, 18.6. and Mon, 23.6.
Only 2 items in stock at third-party supplier
Supplied by

Product details

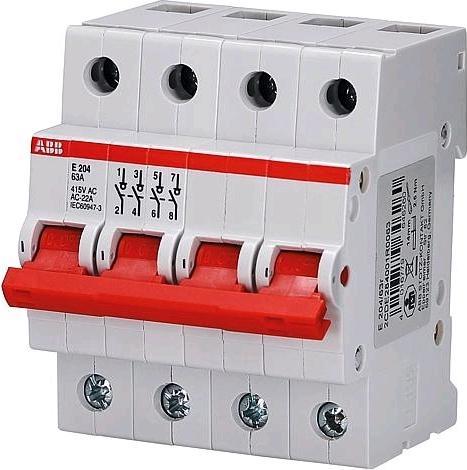

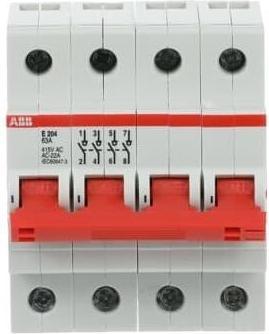

ABB Stotz S&J Built-in Switch E204/63R

Manufacturer: ABB Stotz S&J
Designation: Built-in switch 400V, 63A
Type: E204/63R
Switching function: Disconnect switch
Number of contacts as normally closed: 4
Number of poles: 4
Rated current: 63 A
Rated voltage: 400 V
Minimum rated voltage: 12 V
Short-circuit strength (Icw): 25 kA
Type of voltage: other
With signal lamp: no
Color of the dome: gray
Width in division units: 4
Installation depth: 70 mm
Degree of protection (IP): IP10
Printing/marking: none
Forced disconnection (according to DIN VDE 0113): yes

Further details: Load disconnect switch E 200 for DIN rail mounting according to DIN EN 60715 available with rated currents from 80 to 125 A and conditional rated short-circuit current of 25 kA. Additional auxiliary contacts S2C-H6R can be mounted. Quick removal without disassembly of the phase rail is possible, and the use of non-loosening screws is included. Locking device as an accessory prevents unauthorized ON/OFF switching. Certified according to approvals VDE, CCC, EAC, KEMA. EAN: 4016779646260.

Key specifications

Circuit breaker type
Circuit breaker
Length
70 mm
Width
70 mm
mounting style
Top-hat rail
number of poles
4
Item number
17823872

General information

Manufacturer
ABB
Category
Residual-current device
Manufacturer no.
2CDE284001R0063
Release date
10.12.2021
External links
Manufacturer's site (de)

Colour

Colour
Multicoloured
Exact colour description
Grey

Circuit Breaker Features

Circuit breaker type
Circuit breaker
mounting style
Top-hat rail
number of poles
4
Rated current
63 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
400 V
Protection type (IP code)
IP10

Origin

Country of origin
Bulgaria

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
70 mm
Width
70 mm
Height
85 mm
Weight
390 g
