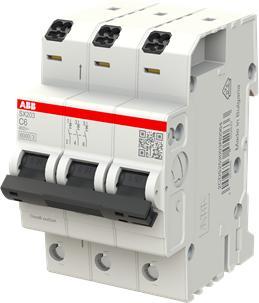

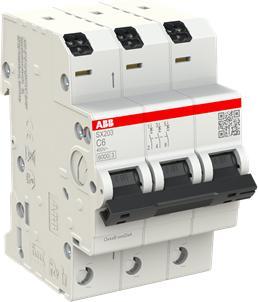

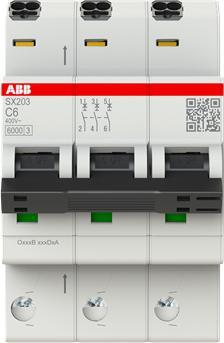

ABB Automatic circuit breaker

6 A
Ratings
BrandMore from ABB
Delivered between Tue, 19.8. and Thu, 4.9.

Product details

The SX 200 series circuit breakers protect cables and wires from overload and short circuits in accordance with DIN VDE 0100-430 and DIN VDE 0100-530. They comply with the construction regulations DIN VDE 0641-11 and IEC/EN 60898-1.

Their patented connection terminals with Push-In technology ensure easy and secure contact and handling. The upper outgoing Push-In terminal can accommodate conductors of up to 2 x 4 mm². On the input side, the PSX phase bars can be used for cross-wiring. For power supply, conductor cross-sections of up to 10 mm² can be directly connected to the device via the screw terminal in protection class IP20. For better visibility during power supply, the opening of the screw terminal is positioned above the flexible terminal for the phase bar.

Numerous approvals make the SX200 suitable for use in residential and commercial applications. Each device undergoes three intensive tests for quality and performance before delivery.

Key specifications

Item number
38753449

General information

Manufacturer
ABB
Category
Fuses
Manufacturer no.
2CDS253003R0064
Release date
14.1.2024

Colour

Colour
White
Exact colour description
White

Backup Features

Nominal current
6 A
breaking capacity
6000 A
Nominal voltage
400 V
voltage type
AC/DC

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Width
52.80 mm
Length
69 mm
Height
85 mm
Diameter
69 mm

30-day right of return if unopened
24 Months Warranty (Bring-in)
