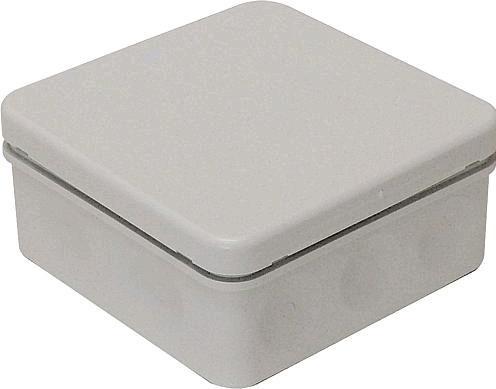

ABB AP10G Two-component box

ABB Stotz S&J Cable Junction Box IP 55 AP10/G

Manufacturer: ABB Stotz S&J
Designation: Cable junction box IP 55 105mm gray 6qmm 400V
Type: AP10/G
Max. conductor cross-section: 6 mm²
Filling: none
Shape: square
Mounting type: universal
Installation in soil: no
Installation underwater: no
For pipe diameter: other
Rear entry: yes
Length: 104 mm
Width: 104 mm
Depth: 104 mm
Stackable: no
Number of entries: 12
Type of housing entry: sealing membrane
Material: plastic
Halogen-free: yes
Surface protection: untreated
Color: gray
Protection class (IP): IP65
Protection class (NEMA): other

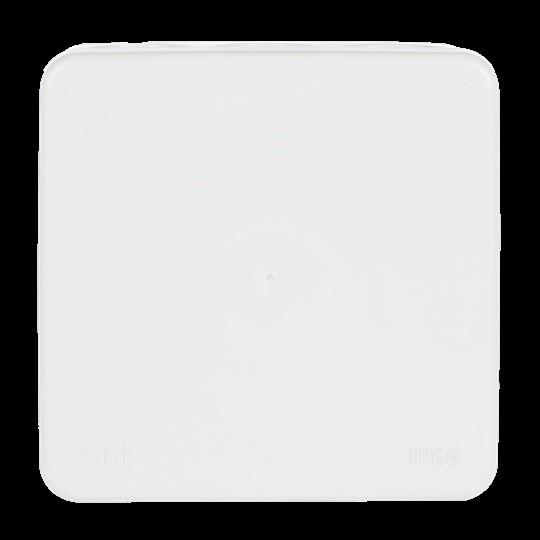

Cover design: blind cover
Transparent cover: no
Cover fastening: snap-on
Pourable: no
Supplied with potting compound: no
Seal-able: no
Rated insulation voltage Ui: 500 V
Function maintenance: none
With shielding: no
Weather-resistant: yes
Operating temperature: -25..60 °C
Explosion-proof version: no
For Ex zone gas: none
For Ex zone dust: none

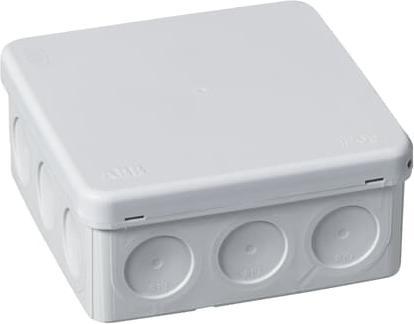

The connection/junction boxes from ABB are made from a two-component system. They feature ten side membrane cable entries that are easy to pierce and two additional ones at the bottom for cables up to 17 mm thick. The membrane reliably seals the cable entries. The boxes are securely closed with a snap-on cover. A screwdriver is inserted into the opening slots for opening. No screws are required. The installation temperature is between 15 and +60 °C.

Advantages: 12 self-sealing cable entries, extremely stable housing (PP), permanently elastic membrane entry (SEBS), optimal price/performance ratio, maximum connection space, protection class IP55, certified according to EN60670-21:2007 and EN60670-22:2006, UV-resistant and halogen-free, glow wire test according to IEC 659-2-11.
EAN: 6418677307287.
