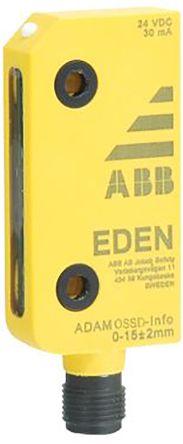

ABB Adam OSSD-Info M12-5 Non Contact Switch

Supply Voltage: 24 V DC
Housing Material: PBT
Connection Type: M12
Switch Type: Rectangular
Series: Eden
Connection Type: 5-pole, M12 connector
Series: OSSD
Switching Distance: 15 mm
Protection Class: IP67, IP69K
Operating Current: 30 mA
Actuator Included: Yes
Safety Category: EN ISO 14119:2013

IEC/EN 61508:2010 SIL3 PFHD 4.5 x 10^-9, EN 62061:2005 SIL3, EN ISO 13849-1:2008 PL e/Cat. 4, EN 14119:2013 Type 4. CE, cULus, TÜV. The Eden OSSD safety switch from ABB is a coded non-contact switch. With just one switch per safety device and up to 30 switches connected in series, a PLe safety level can be achieved. Installation time is reduced thanks to its compact design, flexible mounting options, and a wide mounting tolerance. The Eden OSSD safety switch enhances productivity through extensive display and information outputs, which facilitate troubleshooting and reduce downtime. It also offers a large detection range, improving tolerance to vibrations and minimizing the risk of unwanted stops. The safety switch has an IP 69K protection class and provides a wide operating temperature range, making it ideal for extreme environments.

Features and Benefits:

• Non-contact detection
• 0-15 mm OSSD outputs and inputs for serial connection
• High level of coding
• Automatic reset function
• Protection class IP69K

Application Area:
The non-contact Eden OSSD safety switch is suitable for use on doors and hatches, as well as for position control and area detection.
