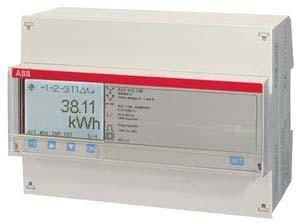

ABB A43 512-100 A43 512-100 Three-phase counter, RS-485 A43 512-100

Three-phase meter for measuring a three-wire or four-wire three-phase network via a direct connection up to a maximum of 80 A. The following values are displayed on a backlit display with up to 7 digits: active energy (Class 1) and reactive energy (Class 2) for import and export, power, currents, voltages (L-L, L-N), frequency, cos phi, power factor, and apparent power, both per phase and in total. Communication can occur via the integrated RS485 or infrared interface. The energy meter has 4 individually programmable inputs/outputs. The output can be used either as a pulse output or an alarm output (up to 25 alarm values). The inputs are used to control tariffs or to count external pulses. Additionally, the meter can record up to 4 tariffs. With the integrated clock, time-controlled functions can be executed. The energy meter measures currents and voltages up to the 16th harmonic and calculates the total harmonic distortion. The meter is calibrated according to MID and approved according to IEC. The installation width is 7 DIN modules.
