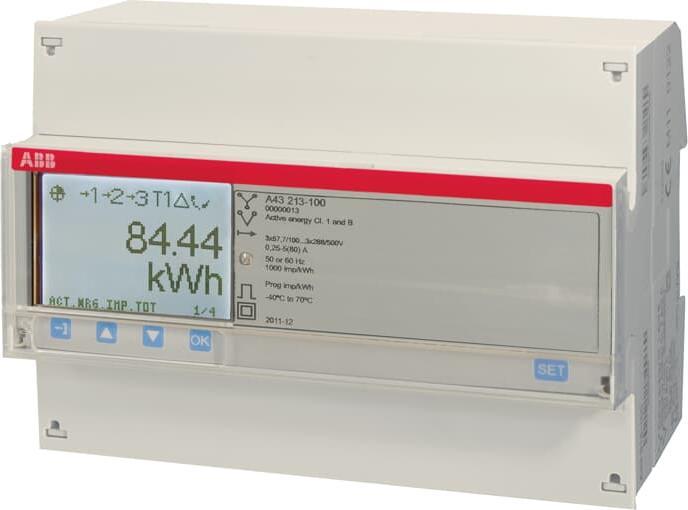

ABB A43 213-100 Three-phase meter, M-Bus

ABB Stotz S&J Three-Phase Meter A43 213-100

Manufacturer: ABB Stotz S&J
Designation: Three-Phase Meter M-Bus
Type: A43 213-100
Meter Type: Electronic
Rated Current (In): 80 A
Maximum Current (Imax): 80 A
Rated Voltage (Un) N-L: 57.7..288 V
Rated Voltage (Un) L-L: 100..500 V
Frequency: 50..60 Hz
Accuracy Class: B
Connection Type: Four-Wire
Design: Direct Measurement
Energy Type: Active and Reactive Power
Suitable for: Consumption/Supply
Tariff Design: Single Tariff
Load Profile Measurement: No
Reverse Current Prevention: Yes
Calibrated: Yes
Approval: Measuring Instruments Directive
Pulse Output: Electrical
Pulse Type: S0
Pulse Rate: 1..999999 Imp/kWh (kvarh)
Display Type: Digital
Mounting Type: REG
Width in Division Units: 7
Width: 123 mm
Depth: 65 mm
Height: 26.5 mm
Interface Type: M-Bus
EDL40 Signature: No
With Lock Code: No
Number of Digits: 7
Protection Class (IP): IP20
Protection Class (NEMA): Other

Three-phase meter for measuring a three-wire or four-wire three-phase network via a direct connection up to a maximum of 80 A. The following values are displayed on a white backlit display with up to 7 digits: Active Energy (Class 1) and Reactive Energy (Class 2) for import and export, power, currents, voltages (L-L, L-N), frequency, cos phi, power factor, and apparent power, both per phase and in total. Communication can occur via the integrated M-Bus interface or through the infrared interface for connecting a KNX module. The energy meter has an output that can be used either as a pulse output for active or reactive energy or as an alarm output. Up to 25 alarm values (thresholds with time delay) can be set. The meter is calibrated according to MID and approved according to IEC. The installation width is 7 DIN modules.
