Best Truvativ products in the Bottom brackets category
On this page you'll find a ranking of the best Truvativ products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Truvativ GXP PressFit
In PressFit bottom brackets, the bearing cups are pressed in instead of being screwed. The main difference between the various systems lies in how the bearings are secured within the frame. PressFit bearings are protected within nylon bearing cups, which are simply pressed into the bottom bracket shell of the frame. No snap rings are required for installation. The actual bearings are meticulously sealed to significantly increase their lifespan. This bottom bracket is compatible with PressFit bottom bracket shells that have a 41 mm inner diameter and a width of 92 mm or 89.5 mm.
2. Truvativ Bottom bracket Power Spline
The Truvativ Power Spline bottom bracket is a high-quality component designed for reliable performance in various cycling applications. With a spindle length of 113 mm and a BSA thread size of 73 mm, this bottom bracket offers an optimal fit for many frames. It is made from robust materials to ensure durability and stability, weighing only 327 g. The construction of the Power Spline system allows for efficient power transfer and contributes to the overall performance of the bike. This bottom bracket is ideal for cyclists who value quality and reliability and desire easy installation.
- BSA thread size for easy compatibility with many frames
- Lightweight construction at only 327 g
- Optimized power transfer through Power Spline technology.
Bottom brackets
−15%
only 1 of 2 remaining on sale
CHF18.70 was CHF21.90
Truvativ Bottom bracket Power Spline
3. Truvativ GXP Pressfit OS 84.5 for Specialized
Truvativ Pressfit bottom bracket OS 84.5 for Specialized
Pressfit bottom brackets use the same bearings as the current GXP bottom brackets, but with Pressfit, the bearing shells are pressed in instead of screwed. This bottom bracket is only compatible with Pressfit frames.
Size: 42 x 84.5 mm
Material: Aluminum / Chromium / Molybdenum
Application area: MTB
Mounting: Pressfit Specialized OSBB
Dimension: 42 x 84.5 mm
Inner bearing: GXP
Installation width: 84.5 mm
Ebike: True
Type: Bottom brackets.
4. Truvativ Power Spline 118 x 68E 73 BSA
The Truvativ Power Spline BSC/BSA bottom bracket is designed for bottom brackets with a Power Spline footprint.
Details:
- Bottom bracket housing BSC/BSA
- Axle length: 113, 118 mm
- Steel bearings
- E-Type
- Is your bike creaking when you pedal hard, is the movement of the bottom bracket no longer smooth, or is there play? The symptoms are clear: it’s time to replace your bottom bracket housing. Like all parts of your bike, the bottom bracket housing and especially its bearings are subject to wear.
- Replacing it is a straightforward process with good preparation, as the many different bearing, bottom bracket, and frame standards can be daunting for some. Therefore, we aim to guide you through this jungle of standards. The bottom bracket is the interface between your bottom bracket and your frame. So first, you need to determine which bottom bracket fits which frame.
- We recommend disassembling your original bottom bracket housing to accurately measure the dimensions of your frame's bottom bracket housing. This compatibility is only a guideline; there are also adapter housings that allow mixing of standards.
- Housing width 68, housing standard BSC/BSA, inner diameter 34.75, bearing quality steel, bottom bracket axle Power Spline.
5. Truvativ Pressfit Road 41 x 86.5mm
Pressfit bottom brackets use the same bearing technology as the current GXP bottom brackets and offer the same performance in terms of durability and longevity. Unlike GXP bottom brackets, which are typically screwed into the bike frame, Pressfit bottom brackets are pressed into the frame.
Material of bearing shells: Plastic
Installation: BB86
Housing diameter: 41 mm
Housing width: 86.5 mm
Bearing: Industrial bearings with steel balls (standard)
Compatibility: only for Pressfit frames.

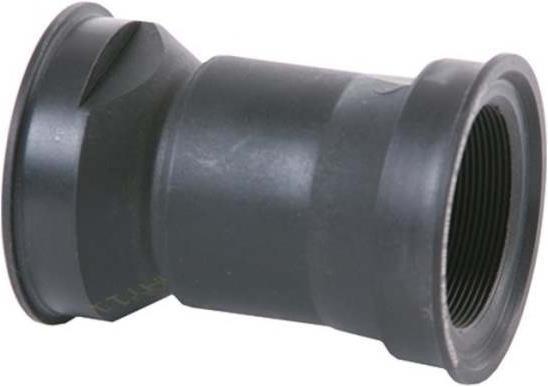

6. Truvativ PressFit 30 to BSA adapter 68/73mm
PressFit 30 (46mm) frame cups. Once press-fit in your frame, you can mount any threaded housing in standard reverse pitch (BSA/BSC). Comes with bushings and spacers. 48g.
If your bike creaks when you press hard on the pedals, or if the movement of the crankset has lost its fluidity or become loose, it's time to change your bottom bracket. Like all parts of your bike, the bottom bracket and its bearings are subject to wear.
Replacing it is a straightforward operation if well prepared. However, the variety of standards for bearings, bottom brackets, and frames can be overwhelming. We aim to guide you through this complexity. The bottom bracket is the interface between your crankset and your frame, so the first step is to identify which crankset you want to fit into which frame.
- Internal diameter of the bottom bracket
- Width of bottom bracket
- Standard mount
- Recommended bottom bracket axle
Characteristics:
- Case width: 68
- 73 Adapter Box Standard
- Internal case diameter: 46
- Bearing quality: Steel
- Bottom bracket axle: 24 mm/30 mm
- GXP 24 - 22 mm Crankset Standard
- Compatible with Rotor 24mm, Race Face X-type, Shimano Hollowtech II, and FSA MegaExo.
7. Truvativ PressFit 30 to BSA adapter 83mm
Sram Pressfit 30 to BSA Adapter for crankset. 83 mm.
Features:
- For 83 mm
- Truvativ 'BB30 Pressfit' bottom bracket adapter
- Allows the installation of BSA threaded bottom brackets in BB30 bottom bracket
- Adapter kit.

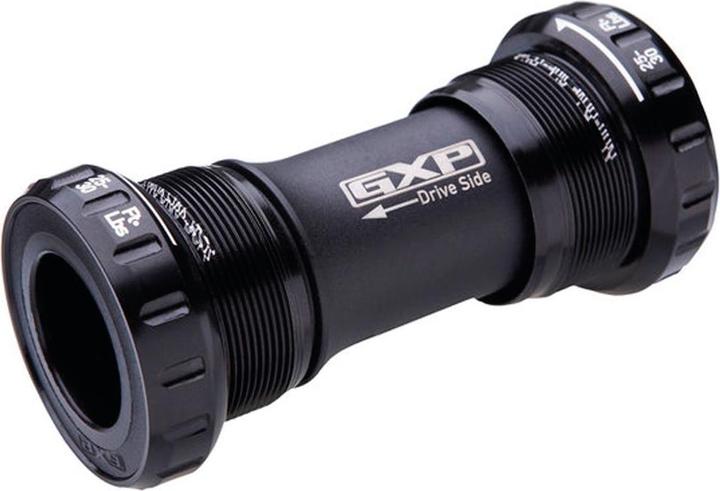

8. Truvativ GXP TEAM 83mm
Complete with left and right bearing, delivery includes spacers for frames from 68 mm to 73 mm. BSA/BSC English thread for Truvativ crankset and Sram, Firex/Stylo GXP.

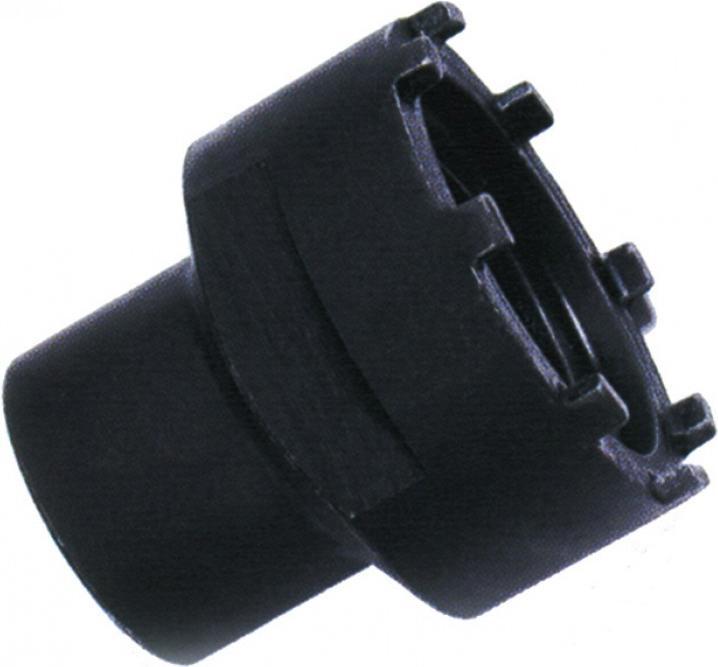

9. Truvativ ISIS Drive Tool Tool
Truvativ ISIS Drive Tool
- Inside bearing tool
10. Truvativ ISIS Giga Pipe Team SL 118 x 68/68E/73 BSA
The Truvativ Giga Pipe Team SL bottom bracket is a high-quality component designed for use in mountain bikes. With an axle length of 118 mm and a shell width of 68 mm, this bottom bracket provides an optimal fit for BSA frames. It features an ISIS drive system that ensures efficient power transfer. The construction includes three sealed ball bearings, which guarantee smooth operation and durability. Weighing approximately 240 g, the Giga Pipe Team SL is lightweight and does not add unnecessary weight to the overall bike. Made in Taiwan, this bottom bracket combines quality and performance to meet the demands of discerning cyclists.
- Compatible with BSA frames and ISIS drive system
- Equipped with three sealed ball bearings for enhanced durability
- Lightweight construction at just 240 g.
