Best Mavic products in the Bike rims category
On this page you'll find a ranking of the best Mavic products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Mavic CXP Pro rim
Aerodynamics plus top performance in one with the CXP Pro from Mavic. With its 23 mm high aero profile, it slices through the wind, while the Maxtal alloy saves weight. The SUP-welded and eyeleted CXP 33 is also exceptionally stable and durable.
Maxtal: The aluminum alloy exclusively manufactured for Mavic offers a higher strength-to-weight ratio than conventional 6106 aluminum. As a result, the rim is 30% more resilient and achieves a lower system weight.
SUP: Machine-processed welding seam process. The rim joint is welded and then machined to create a uniform braking surface. This process results in an extremely stable rim joint, which eliminates typical brake shudder and allows for perfect lacing and centering.
UB Control: Subsequently CNC-turned braking surface. This ensures better braking performance and prevents unpleasant brake shudder.
• Weight: 470 g
• Details:
- Conventional rim drilling
- Profile height: 16 mm
- Available in 32 and 36 holes
- Simple eyeleted construction
• Material specifications: Aluminum
• Application area: Road bike
• Design: V-rim
• Material type: Aluminum
• Rim construction: Hollow chamber rims
• Compatible tire size: 28 inches
• Suitable for rim brakes
• Number of spokes / hole count: 32/36
• Valve hole diameter: 6.5 mm
• Internal width: 15 mm
• Eyeleted construction
• Tire type: Wire tire/Clincher
• Valve hole: French (SV)
• Width: 19 mm.

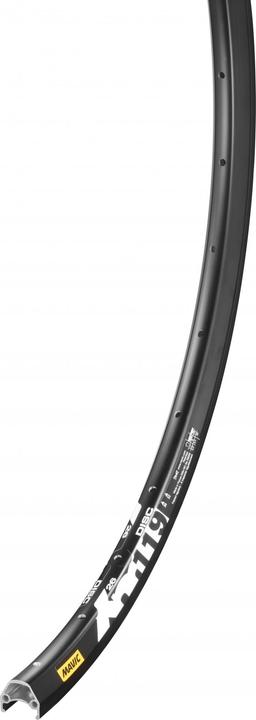

2. Mavic XM 119 Disc 26"
The disc brake rim with the best price-performance ratio. With its rim profile specifically adapted to disc brake loads, it is wide enough for large volume tires. The Mavic XM 119 Disc is one of the highest quality entry-level rims on the market. The subsequently machined brake flanks provide better braking performance and prevent unpleasant brake chatter.
• Weight: 480 g
• Construction: Hollow chamber
• Details:
- Conventional rim drilling
- 6061 aluminum
- Non-eyeleted version
- Rim tape width (tubeless): 25 mm
- Recommended spoke nipple length: 14 mm
- Recommended tire width: 35 mm - 69 mm (1.3-2.7")
- Internal rim diameter (ERD): 595.6 mm
- Disc only
• Material: Aluminum
• Application: MTB
• Design: Deep section rim
• Internal width: 19 mm
• Width: 24 mm
• Tire type: Wire bead/Clincher.

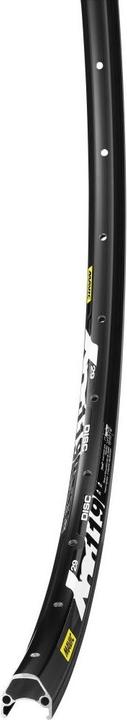

3. Mavic XM 119 Disc 29 inch
With a rim profile specially adapted to disc brake loads, the Mavic XM 119 Disc is wide enough for large-volume tyres. It is one of the highest quality entry-level rims on the market. The UB-Control (Usiné Brut Control) features overturned brake flanks that provide a better braking effect and prevent unpleasant jerking.
- Range of application: MTB
- Type: Drop centre rim
- Weight: 550 g
- Details:
- Conventional rim bores
- 6061 aluminium
- Designed for clincher tyres with spoke eyelets
- Single eyelet design
- Recommended spoke nipple length: 14 mm
- Recommended tyre width: 35 mm (1.3-2.7")
- Inner rim diameter (ERD): 595.6 mm
- Disc only
- Construction: Hollow chamber
- Material: Aluminium rims
- Suitable for disc brakes
- Diameter valve bore: 8.5 mm
- Mouth width: 19 mm
- Valve bore: Auto (AV)
- Tyre type: Clincher.

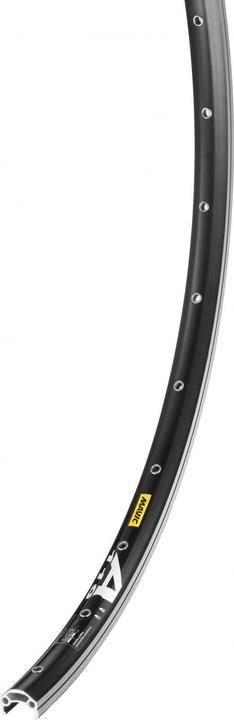

4. Mavic A 119 29"
The all-road rim with the best price/performance ratio. The profile of this plugged rim has been optimized by CAD software to achieve the best possible quality/price ratio. The external wear indicator gives newcomers to cycling a particularly safe feeling. Control features subsequently over-turned brake flanks to ensure better braking efficiency and prevent unpleasant brake judder.
- Weight: 540 g
- Size: 622-19c
- Recommended tyre width: 28 - 47 mm
- Recommended spoke nipple length: 12 mm
- Available with 32 or 36 holes
- Application: MTB
- Type: drop centre rim
- Material type: aluminium
- Rim construction: hollow chamber rims
- Suitable for rim brakes
- Valve hole diameter: 8.5 mm
- Mouth width: 19 mm
- Tyre type: clincher
- Equipped with brake wear indicator
- Valve hole: car (AV)
- Compatible tyre size: 29 inch.

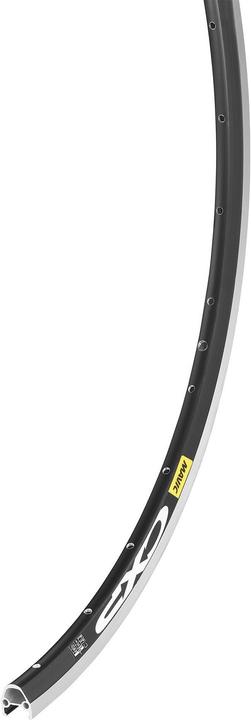

5. Mavic CXP rim
The CXP rim from Mavic is a high-quality bicycle rim specifically designed for use in road cycling. With its aerodynamic design and a width of 21 mm, it offers optimal performance and stability. The rim is made from lightweight aluminum and weighs only 510 g, making it an ideal choice for performance-oriented cyclists. The hollow chamber construction provides additional strength while simultaneously reducing the overall weight. The CXP rim features a pinned joint, which facilitates easy installation and maintenance. It is suitable for wire tires and supports a tire width of 19 mm to 28 mm, allowing for flexible adaptation to various riding conditions. Additionally, the rim is equipped with 32 holes for spokes, ensuring high stability and reliability.
- Aerodynamic design for improved performance
- Hollow chamber construction for low weight and high stability
- Suitable for wire tires with a flexible width of 19 mm to 28 mm
- Pinned joint for easy installation and maintenance.
6. Mavic XM 119 Disc 27.5 inch
With its rim profile specially adapted to disc brake loads, which is wide enough for large-volume tires, the Mavic XM 119 Disc is one of the highest quality entry-level rims on the market.
- Weight: 525 g
- Material type: Aluminium
- Conventional rim holes
- Profile height: 16 mm
- Available in 32 and 36 holes
- Single eyelet design
- Rim construction: hollow chamber
- Material specifications: Aluminum
- Use: MTB
- Type: drop center rim
- Width: 24 mm
- Compatible tire size: 27.5 inch
- Suitable for disc brakes
- Number of spokes / Number of holes: 32
- Diameter valve hole: 8.5 mm
- Mouth width: 19 mm
- Valve hole: Car (AV)
- Tire type: clincher tire.

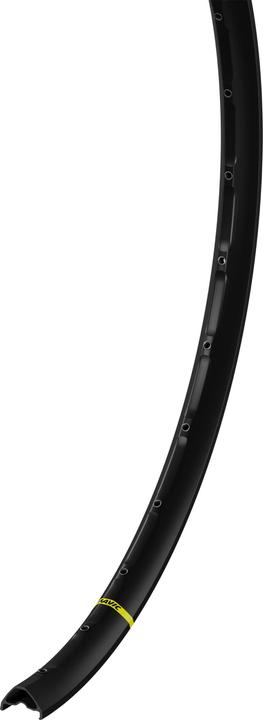

7. Mavic XC 425 Black
The XC 425 offers both low weight and a wider profile, making it ideal for quick accelerations and grip in all situations. This sleeved rim provides simplicity and reliability. The hookless profile and tubeless compatibility (thanks to the appropriate tape) enhance tire profile, comfort, and puncture protection.
• Weight: 535 g
• Rim effective diameter: 597 mm
• Application area: MTB
• Design: Deep-section rim
• Rim construction: Hollow chamber rim
• Valve hole diameter: 6.5 mm
• Tire type: Wire tire/Clincher
• Width: 25 mm
• Compatible tire size: 29 inches
• Suitable for disc brakes
Main information
• Material type: Aluminum.

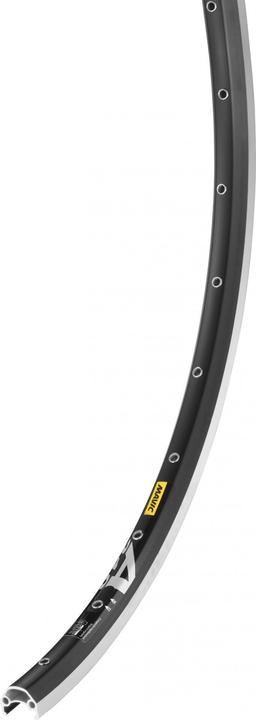

8. Mavic A 319 Wheel rim
The Mavic A 319 rim is a versatile and robust bicycle rim specifically designed for use with rim brakes. With a rim diameter of 622 mm and a width of 19 mm, it offers excellent stability and support for wire tires. This rim is ideal for trekking bikes and is suitable for both daily use and longer rides. The aluminum construction ensures a lightweight of only 595 grams, while the double-eyelet holes provide additional strength and durability. The Mavic A 319 rim is a reliable choice for cyclists who value quality and performance.
- Suitable for rim brakes, ideal for trekking bikes
- Double-eyelet holes for increased stability
- Lightweight aluminum construction
- Versatile for various types of bicycles.

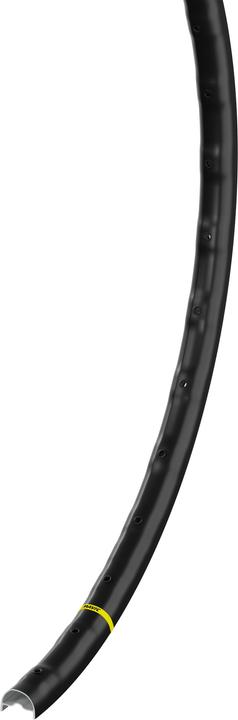

9. Mavic XC 1025
The XC 1025 is the latest version of Mavic's "XC" rims and represents the most advanced evolution to date. This welded rim offers both a lightweight design and a wider 25 mm profile, and it is equipped with ISM 4D technology (Inter Spoke Milling), which strategically removes material from the rim where it is not needed while retaining it around the spokes where the tension is applied. This technology makes the rim lighter for faster accelerations without compromising durability. Optimized to the limits of material potential, the XC 1025 is likely the best cross-country aluminum rim on the market.
• Design: V-rim
• Effective rim diameter: 597 mm
• Weight: 510 g
• Application: MTB
• Rim construction: Hollow chamber rims
• Width: 25 mm
• Compatible tire size: 29 inches
• Suitable for disc brakes
• Tire type: Wire bead/Clincher
Key Information
• Material type: Aluminum.
10. Mavic EX 1028
Designed for the unique demands of enduro and downhill riding, the EX 1028 offers a super strong, reliable yet lightweight package for a perfect custom gravity wheel. The XM 1030 is the latest version of Mavic gravity rims and is the strongest and most durable rim profile ever developed. This welded rim offers both lightweight construction and a wider 28mm profile. It features a hooked profile and is designed to absorb big impacts, from hard-hitting rocks to hard landings and heavy compressions.
Hammer your way through rough terrain with confidence. The wider 28mm rim (inside) is designed to absorb heavy impacts. The triangular rim shape absorbs hard impacts so you can enjoy the descents to the fullest.
Developed, tested, and proven to meet the standards of downhill racers, this rim is ready for hardcore bike park shredders or big mountain enduro riders. It provides increased grip and excellent stability with a 28mm wide rim profile that is optimized for modern gravity tires.
Main information:
- Weight: 620 g
- Recommended rim tape: Mavic UST rim tape (not included with rim)
- Recommended nipple length: 14 mm
- Effective rim diameter: 597 mm
- Range of use: Downhill & Freeride
- Type of construction: V-rim
- Rim construction: Hollow rims
- Suitable for disc brakes
- Number of spokes / holes: 32
- Tire type: Clincher
- Width: 28 mm
- Compatible tire size: 29 inch
- Material type: Aluminum.
