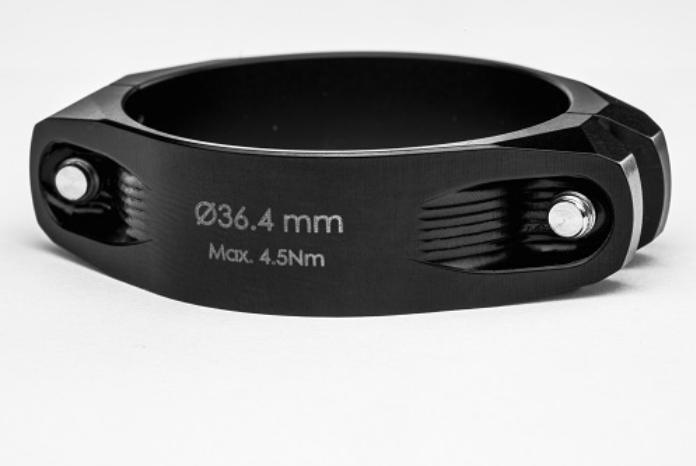

Vecnum tooLOC seat clamp Ø 36.4mm

The intelligent, gentle seat clamp is designed for all seat posts, specifically developed for the requirements of lowerable seat posts. It is gentle on the seat post and frame due to load-optimized force transmission. The evenly distributed clamping forces ensure that the guide tube is not compressed, which is particularly important for carbon frames. Additionally, lower clamping forces are required for reliable and twist-proof clamping. The lightweight construction features Torx T25 titanium bolts and is produced to high standards in Germany.

Details:

• Seat clamp specially developed for lowerable seat posts, vario seat posts, and telescopic seat posts
• No distortion of the guide tube
• Only low tightening torque required
• Gentle on the carbon frame due to less surface pressure
• Load-appropriate clamping force transmission to the frame and seat post
• No twisting or lowering of the seat post due to insufficient clamping effect
• Torx 25 titanium screws (compatible with any Minitool for brake disc mounting)
• Maximum clamping effect with minimum weight

Scope of delivery:

1 x tooLOC saddle clamp
2 x titanium screws Torx 25

Technical data:

Seat tube diameter: 36.4mm
Inner diameter: 31.6mm
Overall height: 14mm
Weight: approx. 12.1g
Material: 7075 aluminium
Material screws/mass: Titanium/M4/Torx TX25
Max torque: 4.5 NM.
