Shimano WH-R501

Front wheel, 28"
5Ratings
Delivered between Tue, 13.5. and Thu, 15.5.
More than 10 items in stock at supplier

Product details

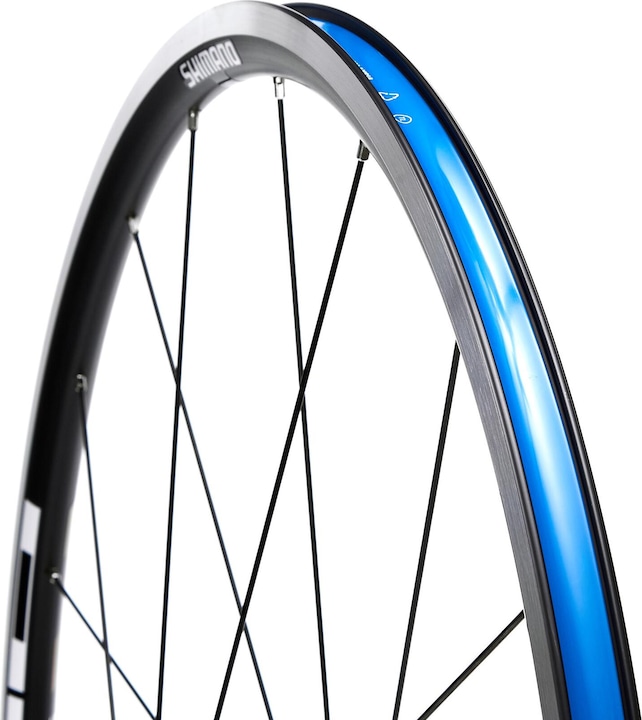

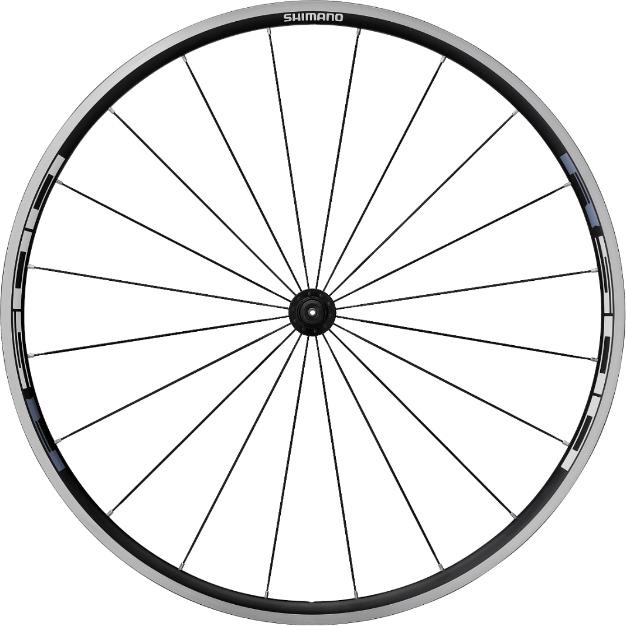

The Shimano WH-R501 front wheel is designed as a robust and reliable option for beginners. It features a black aluminum rim and hubs with 20 stainless steel spokes that are radially spoked. The high-quality cone bearings ensure proven Shimano quality, and the wear indicator allows for timely replacement.

  • Application: Road bike
  • Axle system: VR 9x100 mm
  • Axle standard: Quick release
  • Model: Front hub
  • Axle diameter: 9 mm
  • Material: Aluminum
  • Ball bearing: Sealed
  • For quick release
  • Number of spokes: 20
  • Installation width: 100 mm

Rims:

  • Material: Aluminum
  • Size: 28 inch
  • Height: 24 mm
  • Brake system: Rim brake
  • Mouth width: 15 mm
  • Type: Hollow chamber
  • Valve bore: 6.5 mm
  • Tyre type: Clincher
  • Width: 20.8 mm
  • Tread height: Low (< 30 mm)
  • ETRTO (width x diameter): 15 mm
  • Equipped with brake wear indicator

Included in delivery: 1 Shimano WH-R501 VR

Spokes:

  • Type: Round spokes
  • Lacing: Radial
  • Spoked: Yes
  • Material: Stainless steel

Front wheel:

  • Designed for brake type: Rim brake

Wheelset:

  • Max. total load: 120 kg.

Key specifications

BIke wheel type
Front wheel
Ability brake type
Rim brake
Suitable tyre type
Wired-on tire
Width
20.80 mm
jaw width
15 mm
Axle system
VR 9x100 mm
Weight
822 g
Item number
9160733

General information

Manufacturer
Shimano
Category
Wheels
Manufacturer no.
B00G9APVYU
Release date
10.7.2018

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Aluminium

Wheel properties

Bike area of use
Racing bikes
Lacing
Radial
Wheel size
28"
Model year
2011

Wheel properties

BIke wheel type
Front wheel
Ability brake type
Rim brake
Max. load
120 kg

Rim properties

Rim model
WH-R501-A
Material rim
Aluminium
Rim height
24 mm
Suitable tyre type
Wired-on tire
Width
20.80 mm
jaw width
15 mm
Valve hole diameter
6.50 mm

Hub + freewheel Features

Axle system
VR 9x100 mm
Axis standard
Quick release skewer
Installation width front
100 mm
Installation width rear
100 mm
Diameter axle front
9 mm
Cassette compatibility
10-speed, 8-speed, 9-speed
Freewheel
Shimano

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 Shimano WH-R501 VR

Product dimensions

Weight
822 g

Package dimensions

Length
66.20 cm
Width
65.20 cm
Height
13.20 cm
Weight
2.45 kg
