Shimano Ultegra FC-R8000

175 mm
1Ratings
Delivered between Thu, 11.9. and Mon, 15.9.
More than 10 pieces in stock at supplier
free shipping

Product details

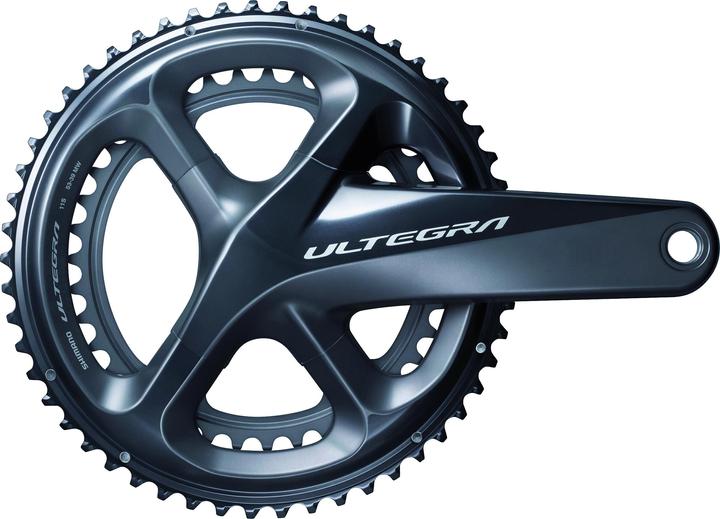

The Shimano Ultegra FC-R8000 HOLLOWTECH II crankset showcases the strong four-arm design that carries the genes of the Dura-Ace R9100. Despite its enormous stiffness, which ensures optimal power transfer, the new R8000 crank is even lighter than its predecessor, weighing only 674 g (50-34T). The spacing of the chainrings has been revised to meet the demands of increasingly popular road bikes with disc brakes. This creates more clearance for the frame and significantly improves shifting performance in conjunction with the new derailleurs.

The large chainrings provide maximum stiffness with minimal weight thanks to Shimano's HOLLOWGLIDE technology, which features a hollow structure. This stiffness directly benefits the rider through high front shifting performance. The R8000 cranks are available in the gearing option of 50-34.

• Intended use: Road bike
• Details:

  • Shell width: 68/70 mm
  • Type: Hollowtech II
  • Compatible chain: HG-EV 11-speed, HG-X 11-speed
  • Low weight with high stiffness
  • Wide range of gear ratios
  • Optimized design

• Material specifications: Aluminum chainrings
• Number of chainrings: 2 chainrings
• Gear ratio: 50/34 teeth crank
• Bolt circle diameter: 110 mm
• Bolt circle type: Standard
• Chainline: 43.5 mm
• Rear shifting compatibility: 11-speed
• Design: 4-arm
• Axle interface: 24 mm.

Key specifications

Number of chainrings
2 x
Item number
6869773

General information

Manufacturer
Shimano
Category
Bike cranks
Release date
18.10.2017
Sales rank in Category Bike cranks
68 of 2484

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Aluminium

Crank properties

Bike area of use
Racing bikes
Number of chainrings
2 x
Number of teeth
50 + 34
Model year
2018
Chainring mount
4-arm
Crank model
Ultegra FC-R8000

Compatibility

Cassette compatibility
11-speed
Type of bottom bracket
24 mm
Bolt circle
110 mm
Bolt circle type
Standard
Chainline
43.50 mm
Q factor
146mm
Box width
70 mm

Origin

Country of origin
Cambodia

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Crankset

Product dimensions

Length
175 mm
Weight
689 g

Package dimensions

Length
27 cm
Width
21.80 cm
Height
21.50 cm
Weight
1.40 kg
