Park Tool PCS-9.2

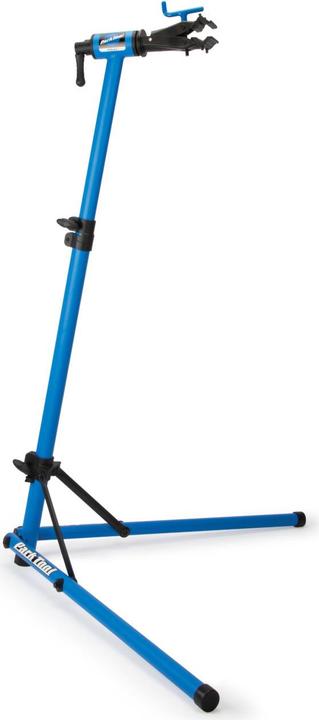

The high stability, reliable handling, and compact size distinguish the foldable Park Tool repair stand PCS-9.2. The ratio between the base and the extension is just right, providing a large range of motion for maintenance, care, and assembly work on your bike. For optimal setup, the tilt and height of the telescopic tube on the stand can be infinitely adjusted up to a clamping height of about one and a half meters.

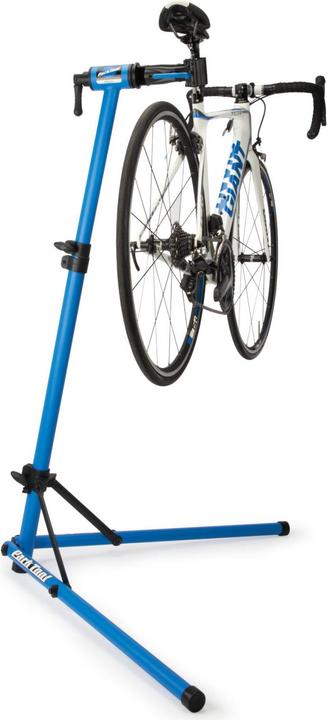

Both can be securely fixed with sturdy clamping screws, while the diagonal braces combined with the ovalized support tubes ensure stable torsional and standing safety. This allows your bike to be comfortably clamped in the slim clamping head at the seat post or frame, enabling it to be rotated vertically into the desired position. After completing your work, the Park Tool stand can be folded back to a space-saving transport size by loosening the clamping screws and collapsing the extending support tubes. Ideal for the workshop or as a mobile assembly station.

Details:
• Foldable, stable repair stand

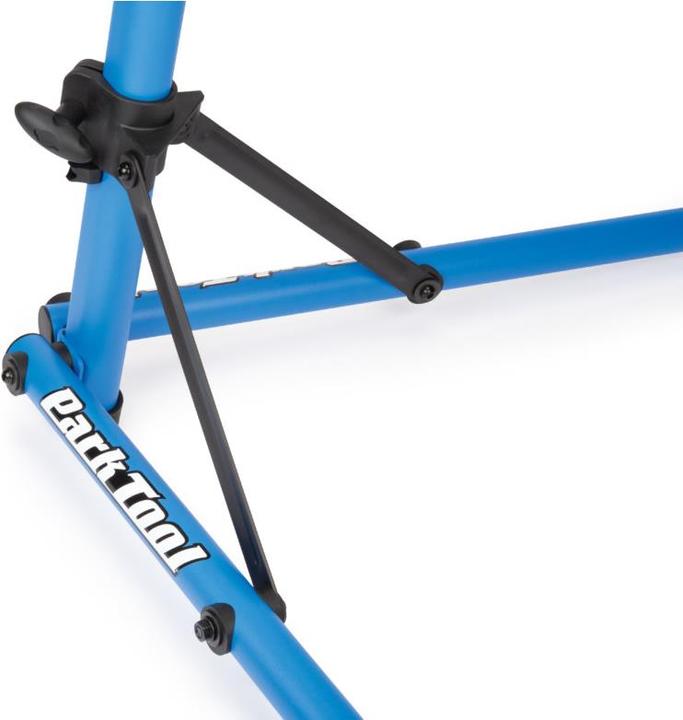

• Three-point system for high stability on almost any surface
• Max. load capacity: 36 kg (centered over the legs)
• Powder-coated steel frame
• Infinitely adjustable working height: 99 – 145 cm
• Tool-free position and tilt adjustment
• Telescopic extension with stable clamping screw at double clamping

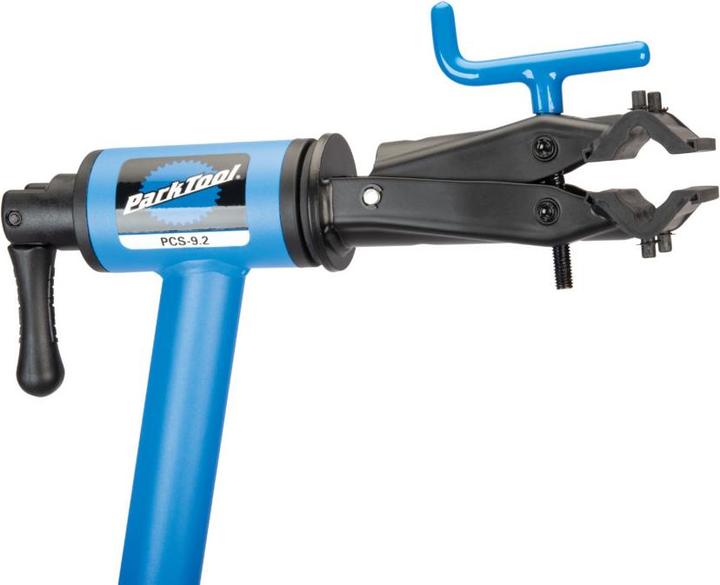

• Clamping jaw on the arm rotates 360°

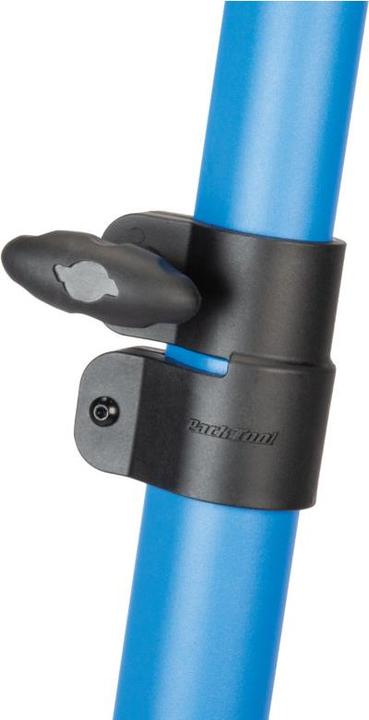

• Locking via clamping lever
• Also suitable for square and aero tubes
• Secure fixation with threaded tension crank
• Handy vinyl-coated rotary knob
• Clamping jaw adjustable for tube diameters of 24 – 76 mm
• With plastic clamping shells
• Clamping jaw width: approx. 90 mm
• Clamping pressure finely adjustable

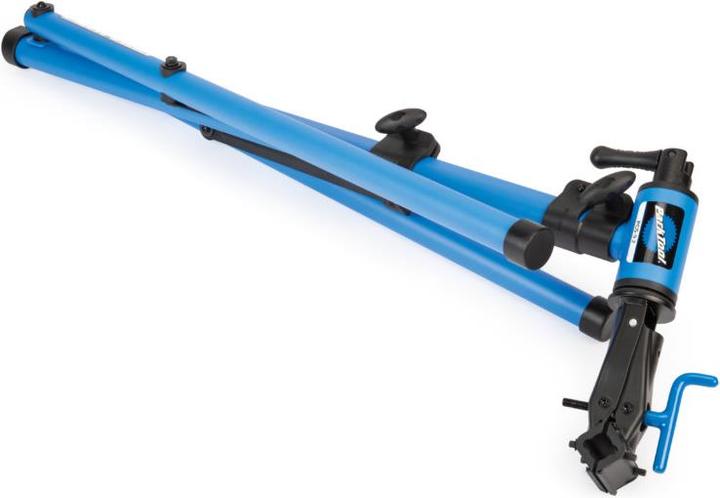

• Compact size: folds down to 104 cm in length
• Base area: approx. 92 x 92 x 115 cm
• Weight: approx. 6.5 kg
• Material: steel, nylon composite, plastic.
