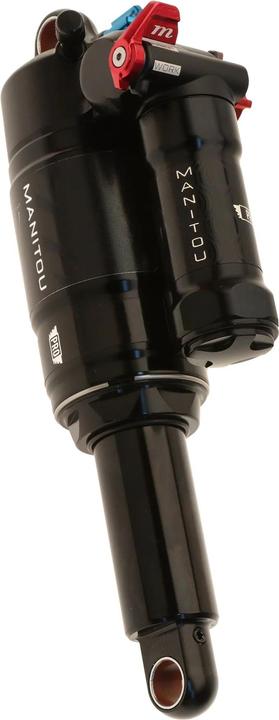

Manitou Mara Pro Piggyback MY2024

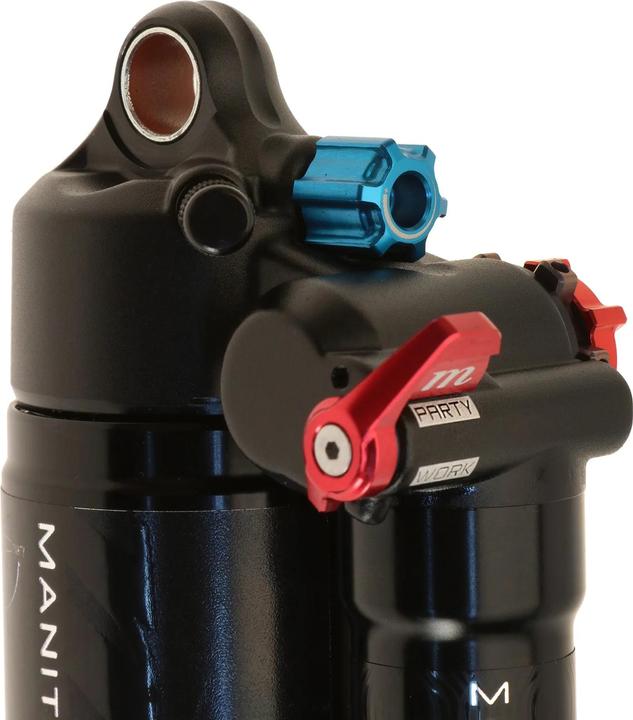

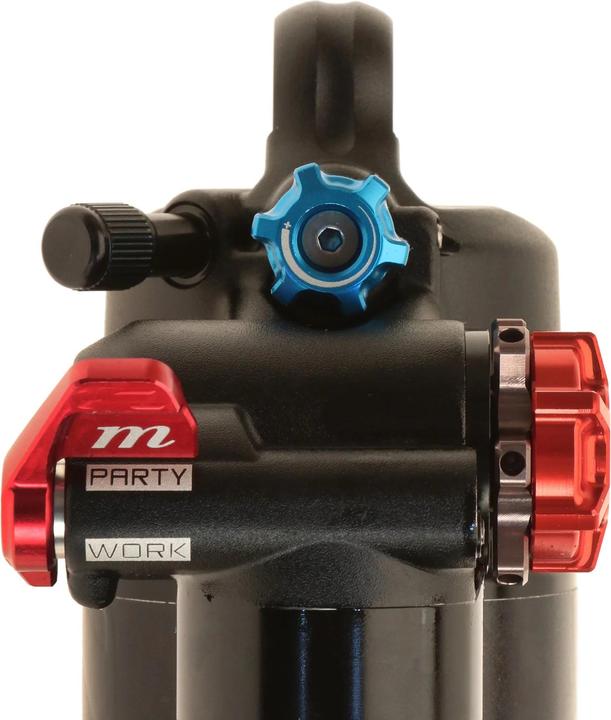

The rear Mara Pro PB shock absorber is available in stroke lengths of 4575 mm and features two separate damping circuits that can be activated or bypassed using the work/party mode lever. With the two distinct settings, the rider has two uncompromising options: for climbing and descending. The work mode is a preset, independent damping circuit designed for climbing. The party mode offers an externally adjustable high and low-speed compression setting. It provides a wide range of tuning options for various riders and conditions. In conjunction with the second-generation Balance Groove Air Cans, a new compression piston and updated shim stacks have been developed. Together, they ensure improved compliance over small bumps as well as support that can be adjusted with the external pressure adjusters and internal air volume settings.

Specification:
Weight: 425 g
Mounting type: Eyelet and Trunnion
Air can: Balance Groove King Can
Negative spring: Balance Groove
Compression: Work and Party mode
External adjustments: Air pressure, rebound, HS and LS compression, work/party mode
Internal adjustments: Positive and negative air volume with King Can, 2.5 mm spring travel spacer
Other: Multiple reservoir lengths
Other: DH specification 70-75 mm

Key features:

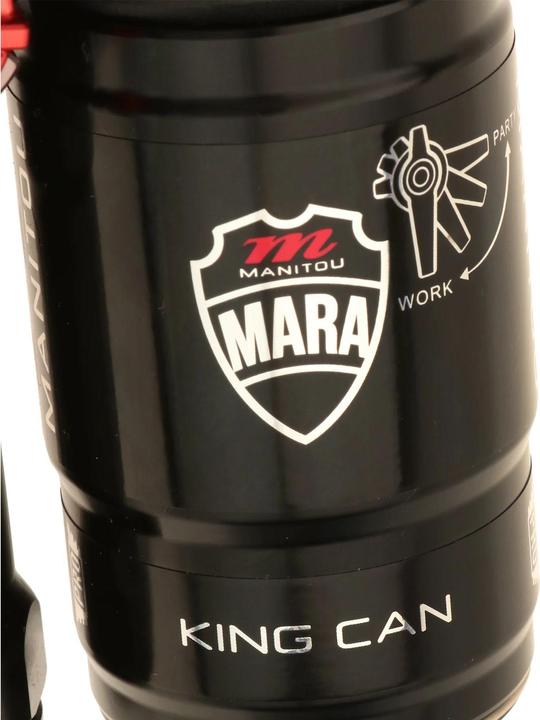

The King Can allows for positive and negative adjustment of the air volume in the outer shell of the air chamber. The work mode has two separate damping circuits. The work mode is preset and optimized for a firm pedal platform. The party mode offers external high and low-speed compression adjustments for a wide tuning range to accommodate different riding disciplines and frame designs.
Stroke lengths: 45-65 mm
Shorter reservoir for better frame compatibility.
