Manitou Dorado Pro

Manitou Dorado Pro

Legends never die

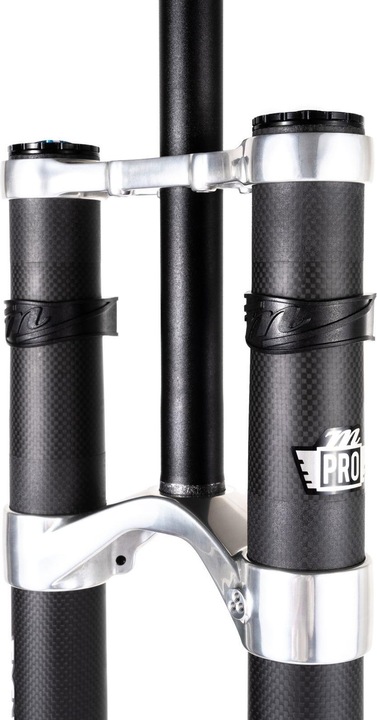

The brand new Dorado Pro is back in a big way and ready to shake up the suspension world. With a reverse design, a carbon upper structure, 37mm stanchions, and a revamped interior, the new Dorado Pro represents the pinnacle of suspension technology. The new stiffer chassis is combined with a completely new sealed version of our TPC+ damper and an improved Dorado air spring with IRT volume adjuster. The combination of these technologies in an ultimate platform offers more than enough adjustment options to satisfy any seasoned suspension tuner, while also being simple enough for any rider to easily set up their fork.

Specifications

Wheel size: 27.5", 29"
Weight: 2970 g
Offset: 47 mm flat crown (27.5 inches), 57 mm drop crown (29 inches)
Ride height: 582 mm (27.5 inches), 602 mm (29 inches)
Travel: 180, 190, 203 mm internally adjustable

Spring: Dorado Air with Infinite Rate Tune (IRT)
Compression damping: Sealed cartridge TPC+ with hydraulic bottom-out (HBO)

Rebound damping: Sealed cartridge TPC

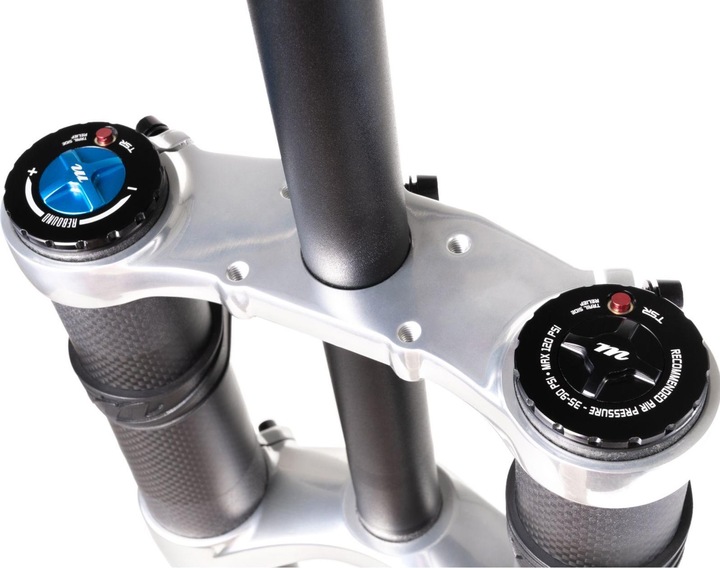

Adjustments: Air, IRT, rebound, high-speed and low-speed compression
Steerer tube: 1-1/8" straight
Crown: Forged
Lower leg material: Carbon
Leg diameter: 37 mm
Leg material: 6000 series aluminum
Brake post mount: 203 mm (max. 223)
Axle: 110 mm x 20 mm BOOST thru-axle
Maximum tire size: 67 mm
Extras: TSR knobs with threads
Options: Fender
E-Pac: No.
