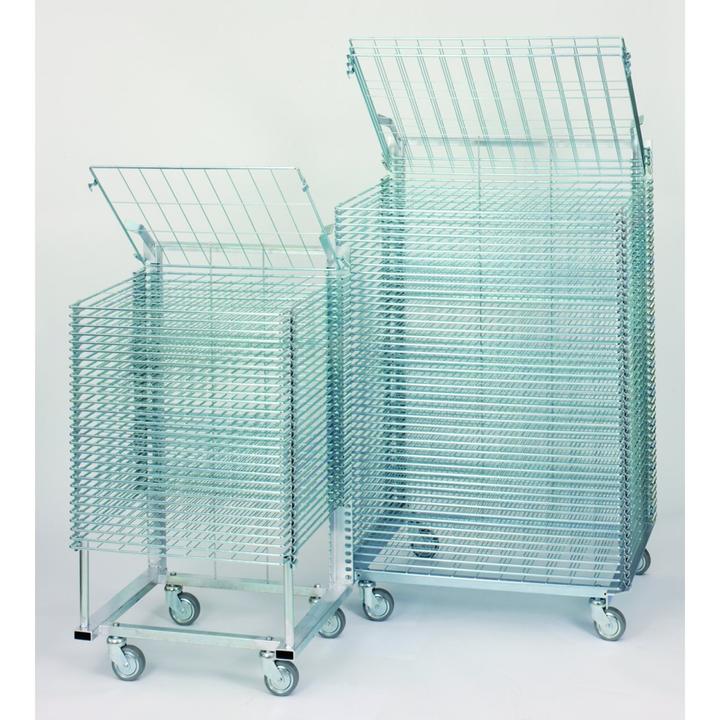

Tschudi Büromaschinen Stack dryer / drying rack, format 100 x 140 cm, 25 / 50 trays 50 trays

Stack dryer / drying rack, size 100 x 140 cm, 25 / 50 tiers. Professional stack dryer in size 100 x 140 cm. Stack dryer model IV, with 25 / 50 tiers. Professional stack dryer on large, sturdy wheels. Ideal for schools, workshops, screen printing companies, etc. The welded grids of the drying rack consist of round 3 mm thick cross bars spaced 75 mm apart. The 4 mm thick longitudinal bars spaced 200 mm apart provide high stability for our stack dryers / drying racks. This ensures easy insertion and sliding of the printed materials. All our stack dryers have a consistent opening angle of 45° for all tiers. Locking bars prevent inserted sheets from slipping through. The spacers are made of steel. Swivel-mounted running wheels with roller bearings (up to 80 °C) allow for good running and turning properties of the fully loaded stack dryer. When used in curing ovens, we supply all drying tiers (for an additional charge) with heat-resistant wheels up to a maximum of 180 °C, and if needed, with other track widths.

Technical data:
Loading area 100 x 140 cm
Footprint 100 x 150 cm
Tier spacing: 50 mm (25 tiers) / 25 mm (50 tiers)
Clearance: 40 mm (25 tiers) / 15 mm (50 tiers)
Grid opening: 75 x 200 mm
Height of the top tier: 140 cm
Total height closed: 158 cm
Total height open: 214 cm
Grid weight: 96 kg (25 tiers) / 160 kg (50 tiers)

Please ensure that access routes (e.g., doors/lifts) are sufficiently wide, as the stack dryer cannot be disassembled! Price includes delivery!.
