Bosch Hausgeräte Flat screen bonnet

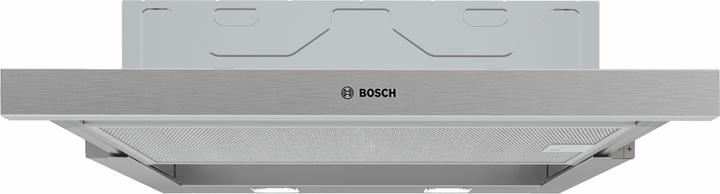

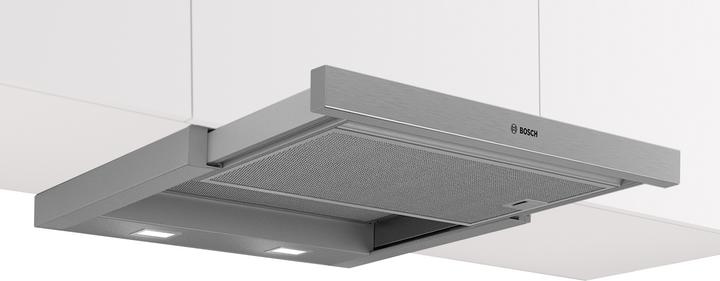

Design: 60 cm flat chimney hood in gray metallic for installation in a 60 cm wide special upper cabinet. Can be operated in either exhaust or recirculation mode. A standard recirculation kit (optional accessory) is required for recirculation operation.

Comfort design with short-stroke buttons and LED display. Electronic control via short-stroke buttons with LED display. Short-stroke buttons (3 power levels and 1 intensive level) with LED display. Side electronic control with short-stroke buttons, 3 power levels, and 1 intensive level. Intensive levels with automatic reset. Fan run-on time of 10 minutes.

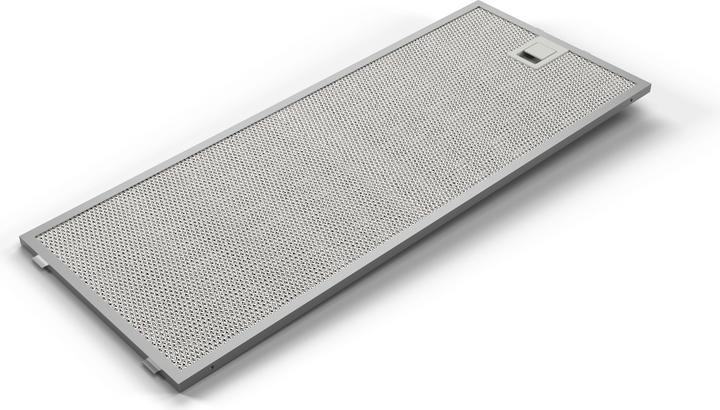

Features: Even, bright lighting with 2 x 1.5 W LED module. Color temperature: 3500 K. Illuminance: 294 lux. Cassette with aluminum frame. Metal grease filter, dishwasher safe.

Operating mode and performance: Exhaust performance according to EN 61591: max. Normal operation 268 m³/h, intensive level 400 m³/h. Fan performance according to EN 61591 in exhaust operation: Max. Normal level: 268 m³/h, intensive level: 400 m³/h. Noise levels according to EN 60704-2-13 in exhaust operation: Max. Normal level: 62 dB(A) re 1 pW, intensive level: 69 dB(A) re 1 pW. Noise min./max. Normal level: 49/62 dB.

High-performance fan: Eco Silence Drive - the powerful and energy-saving motor.

Planning and installation information: Device dimensions (HxWxD): 203 x 598 x 290 mm. Installation dimensions (HxWxD): 162 x 526 x 290 mm. Exhaust duct Ø 150 mm (Ø 120 mm included). Supplied with backdraft damper. Length of the connection cable: 1.75 m with plug.

Environment and safety: Energy efficiency class: A (on an energy efficiency class scale from A+++ to D). Average energy consumption: 21 kWh/year. Fan efficiency class: B. Lighting efficiency class: A. Grease filter efficiency class: C. Total connection value: 74 W.
