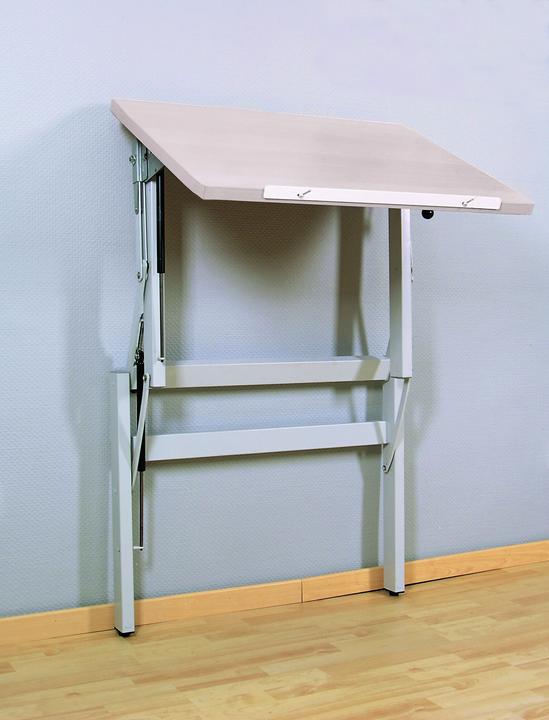

Möckel Wall-mounted folding table ergo S 47 W

Möckel Wall-Mounted Folding Table Ergo S 47 W

Simply ergonomic! The wall-mounted folding table Ergo S 47 W from Möckel is equipped with a gas spring. With a hand lever, you can easily adjust the height of the ergonomic table. The height-adjustable therapy table can be individually tailored to the needs of your patients. You can position the tabletop at any angle—vertically, inclined, or horizontally. After use, simply fold the tabletop against the wall. The height can be conveniently adjusted continuously from 47 to 97 cm. The weight setting of the height lift is adjustable from approximately 1 to 30 kg. The frame is environmentally friendly, powder-coated, and particularly robust.

Technical details of the Möckel Wall-Mounted Folding Table Ergo S 47 W:

• Tabletop size 100 x 60 cm
• Continuously variable table height from 47 to 97 cm
• 50 cm lift measured in the flat position
• Tabletop can be tilted continuously from 0 degrees to 90 degrees
• Additional height lift on the left, prevents the tabletop from tipping when the brake is released
• Quick adjustment using a hand lever for convenient table height adjustment
• Easy release and locking of the lamella brake secures the table at any height and angle
• Stable tabletop positions due to braked sliding lamellas
• Complete weight compensation of the tabletop through continuously adjustable height lift, simplest operation on the left via a crank
• Max. load capacity 30 kg
• Frame inner width 72 cm
• Barrier-free and wheelchair accessible
• Mechanism collapsible
• Tabletop coated on all sides with plastic, highly scratch and abrasion resistant
• Frame environmentally friendly powder-coated, light gray RAL 7035
• 2 adjustable screw feet for fine adjustment of the frame on the floor.
