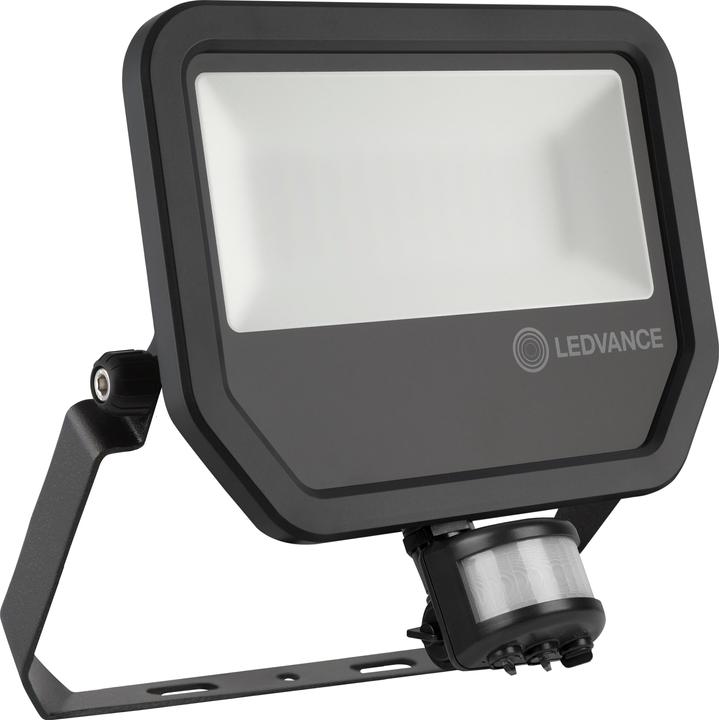

Ledvance Floodlight Sensor

5500 lm, IP65

Luminous flux

2200 lm
30.50
5500 lm
48.10

Floodlight with flexible motion and daylight sensor, up to 6000 lm luminous flux. Product features: Flexible motion and daylight sensor. Sensor can be swivelled 350° and tilted 180°.

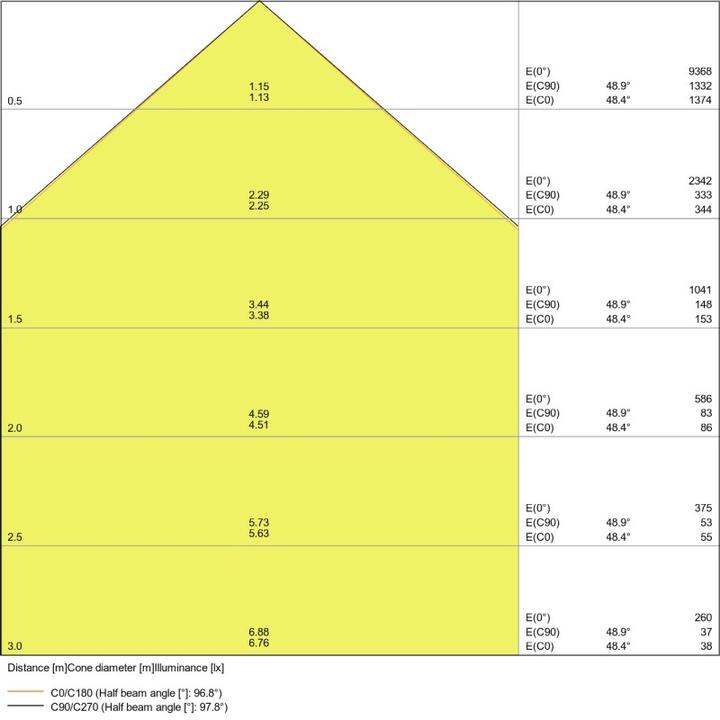

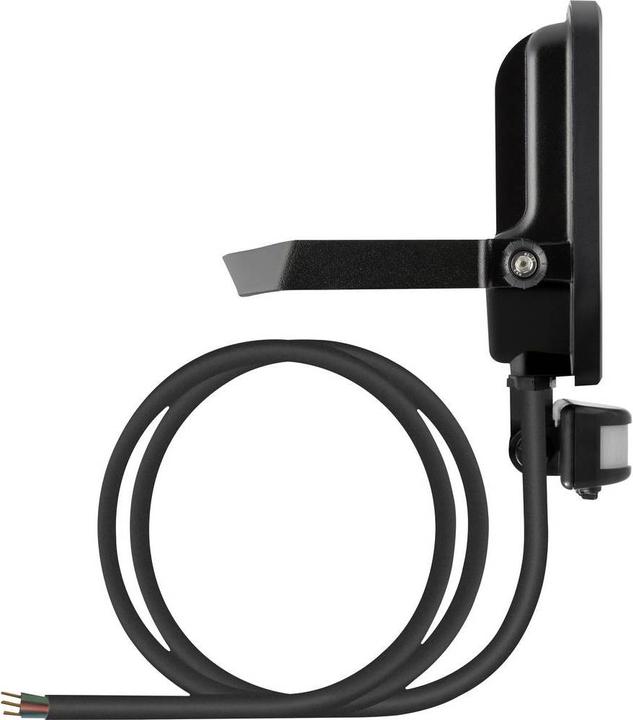

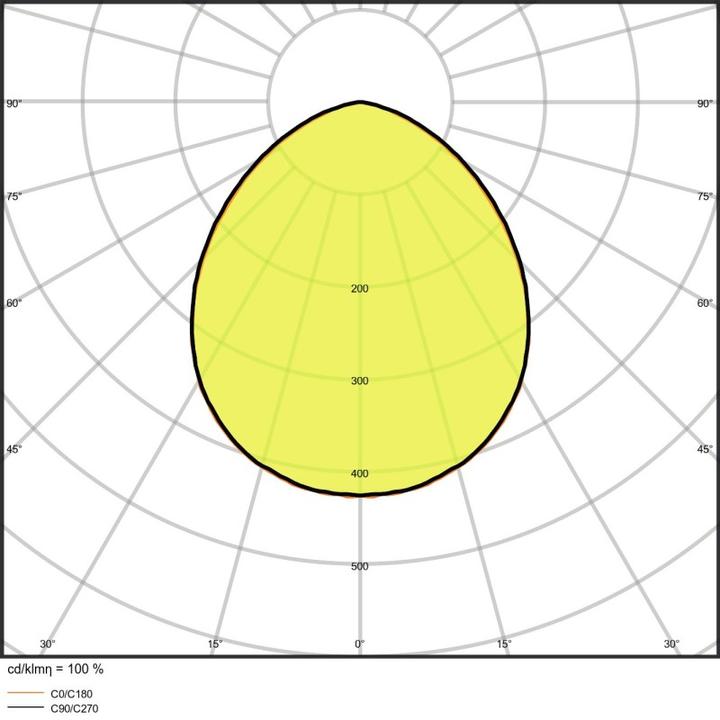

Reflector-based, symmetrical light distribution with 100° x 100° beam angle. Integrated ballast with wide input voltage range, suitable for 100 - 277 V AC. Overvoltage protection: up to 4 kV (L/N-PE), 2 kV (L-N). Mounting bracket with 30° angle and large rotation range. Climatic membrane for optimised air exchange, with constant high IP protection level. Pre-installed, flexible cable (H05RN-F) with 1 m length, 3 x 1.0 mm? crimped.Product advantages: Bright, robust and long-lasting. Demand-optimised lighting thanks to flexible, programmable sensor. Easy adjustment of sensor range, daylight detection and light duration. Continuous operation possible, activation via special switch-on scheme. Safe and very uniform illumination thanks to opal, tempered glass diffuser. No light emission in the upper half-space (ULOR 0%) at 0° inclination. Energy savings of up to 90% compared to halogen lamp floodlights. 5 year guarantee. Fields of application: Replacement for floodlights with halogen lamps. Outdoor application (IP65). Public space. Illumination of facades. Construction sites. Gardens, balconies and other outdoor areas.

Key specifications

Power supply
Electrical connection
Additional functions
Motion sensor
Width
21.90 cm
Height
5.90 cm
Application range
Outdoor
Exact colour description
Black
Item number
15804335

General information

Manufacturer
Category
Outdoor wall lamp
Manufacturer no.
460997
Release date
5/6/2021
Sales rank in Category Outdoor wall lamp

Colour

Colour group
Black
Exact colour description
Black

Material

Material group
Glass

Application range

Application range
Outdoor

Lamp properties

Dimmability
Not dimmable
Additional functions
Motion sensor
Adjustability
Pivoting

Bulb properties

Scope of illuminant
incl. fixed light bulb
Bulb type
LED light
Luminous flux
5500 lm
Light colour
White
Colour temperature
3000 K
Colour rendering index
89
Shielding angle
80°
Lamp service life
70000 h
Number of lights
1 x
Number of circuits
100000
Max. power per lamp
50 W

Smart home features

Smart Home
Not compatible
Smart home ecosystem
IFTTT
Smarthome communication standard
IFTTT

Power supply

Power supply
Electrical connection
Output voltage
230 V

Safety

Protection type (IP code)
IP65
Protection class
Protection class I

Scope of delivery

Items per sales unit
1 x
Scope of delivery
LED floodlight

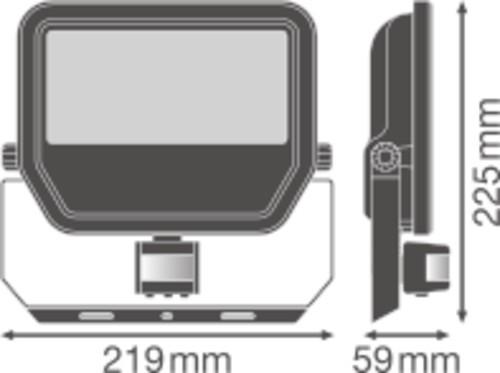

Product dimensions

Length
22.50 cm
Width
21.90 cm
Height
5.90 cm
Weight
1060 g

Package dimensions

Length
28.13 cm
Width
23.26 cm
Height
6.56 cm
Weight
1.13 kg
