Top rated Lighting controllers
Here's a ranking of the top rated products in this category. To give you a quick overview, we've also added some key information about the products.
1. Eurolite DMX Interface USB-DMX512 PRO M
USB DMX interface with integrated processor for stable DMX output. This professional USB DMX interface allows you to control DMX devices with a computer. It supports FreeStyler, DMXControl 3, PC Dimmer, and Lightkey (Mac). The interface offers an output of up to 512 DMX channels and ensures stable DMX output thanks to its integrated processor. It is compatible with Windows 7, 8, and 10, Mac OS X, and Linux. Connections include a 3-pin XLR socket (Neutrik) and USB 2.0/1.1 B. The DMX output is galvanically isolated against voltage damage, and the sturdy metal housing is designed for tough stage use.
2. Eurolite USB-DMX512 PRO cable interface
The USB-DMX512 PRO cable interface from Eurolite is a highly advanced solution for controlling DMX devices via a computer. With an integrated processor, this interface ensures stable DMX output suitable for professional applications. Its compact design, with the microelectronics board integrated into the XLR connector, makes the device particularly portable and ideal for on-the-go use. It supports a variety of software solutions, including FreeStyler, DMXControl 3, PC_DIMMER, and Lightkey for Mac, allowing for flexible usage. The interface is compatible with common operating systems such as Windows 7, 8, 10, Mac OS X, and Linux, and can control up to 512 DMX channels. The simple USB connection ensures easy handling and integration into existing setups.
- Integrated processor for stable DMX output
- Compatible with various DMX software solutions
- Compact design for easy portability
- Supports up to 512 DMX channels
- Simple USB connection for hassle-free use.
3. SoundSwitch Control One
SoundSwitch Control One.
4. BeamZ Dmx-240
192-channel DMX lighting controller with jog wheels for easy use of pan and tilt. 192 DMX channels. 12 scanners with 20 channels. 30 banks, 8 programmable scenes. 6 programmable chasers with 240 scenes. Jog wheels for easy use of pan and tilt.
The housing of the DMX-240 lighting control panel from BeamZ is suitable for 19" rack mounting and offers numerous control options. Light engines can be connected to the control panel via a 3-pin XLR connector. The controller manages up to 192 DMX channels. The built-in jog wheels allow convenient operation of the pan and tilt functions. Convenient and effective control. The control panel can manage up to twelve scanners with 16 channels each. A total of 30 memory locations are available for control, each with eight freely programmable scenes for your light shows.
Furthermore, up to six different chases with 240 scenes each can be stored in advance. Two end devices can be connected at the same time for simplified data exchange. Everything under control. The DMX-240 offers you eight faders to control the individual channels. The fade time can be set individually. The individual shows can be music-controlled if required. The microphone required for this is already built into the housing.
5. Eurolite QuickDMX radio receiver
Compact DMX Wireless System 2.4 GHz
The Eurolite QuickDMX transmitter and receiver are designed for the wireless transmission of DMX512 signals. The complete technology is housed in an extended 3-pin XLR connector (female) with a swiveling antenna. The device functions as a transceiver, allowing it to be used both as a transmitter and a receiver.
By using this device, the complicated cabling between the DMX light controller and your lighting equipment is eliminated. Thanks to GFSK technology (Gaussian Frequency Shift Keying), interference-free operation is possible even alongside Bluetooth and Wi-Fi. The range is up to 400 meters with a clear line of sight.
Quick setup is incredibly easy with plug & play, featuring a button to connect and disconnect QuickDMX receivers.
- User-friendly 3-pin XLR connector (female) with a swiveling antenna
- Wireless DMX eliminates the complicated cabling between DMX controllers and DMX-controlled devices in lighting systems
- GFSK modulation with 78 channels enables interference-free operation alongside other QuickDMX receivers and other wireless devices in the 2.4 GHz band (such as Wi-Fi and Bluetooth)
- One transmitter can control 1 to 512 QuickDMX receivers
- Plug & Play: Simple and quick setup with a button for connecting/disconnecting QuickDMX receivers
- LED function indicator
- Transceiver, usable as both transmitter and receiver
- Power supply via included power adapter
- 2.4 GHz ISM band - registration and fees free worldwide
- Can receive and process up to 512 DMX channels
- Controllable via DMX; QuickDMX built-in
- Range of up to 400 m.
6. Showtec Db-1-8/Rdm
The DB models from Showtec are universal DMX-512 splitters. They are designed to distribute the incoming DMX signal in daisy-chain configurations to multiple separate outputs with an additional "Through" port. They can be mounted in any 19" rack or on the truss using the M10 nut at the rear of the device. The unit features clear LEDs to indicate the DMX signal status of each output and input. Four models are available: DB-1-4 with or without RDM with 4 outputs and 3- and 5-pin XLR connectors, as well as DB-1-8 with or without RDM with 8 outputs and 3-pin XLR connectors.
7. Eurolite QuickDMX set 1x transmitter + 4x receiver
EUROLITE Set QuickDMX 1x transmitter + 4x receiver (20000646).

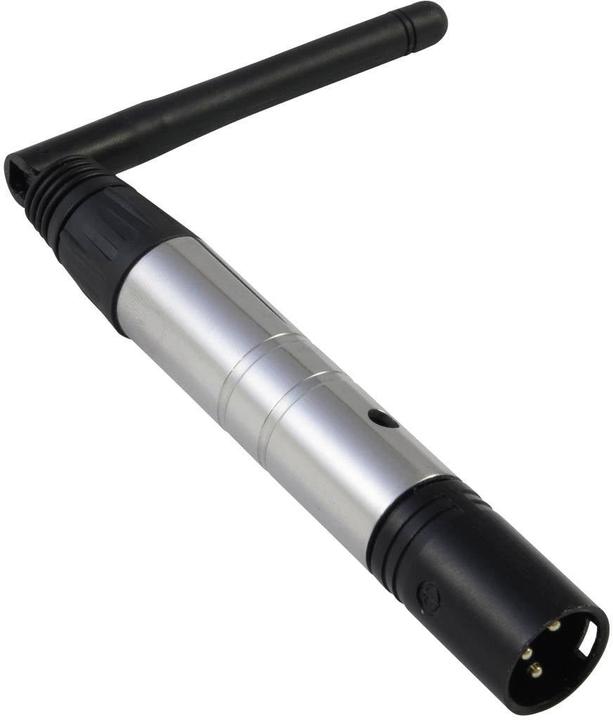

8. Eurolite QuickDMX radio transmitter
The Eurolite QuickDMX wireless transmitter is a compact and user-friendly solution for the wireless control of DMX-controlled lighting systems. Operating at a frequency of 2.4 GHz, this transmitter allows for the easy transmission of up to 512 DMX channels, ensuring flexible and interference-free communication between DMX controllers and the corresponding devices. The QuickDMX transmitter features a swivel 3-pin XLR connector for easy connection. Thanks to GFSK modulation and the ability to operate up to six transmitters simultaneously, it can control up to 3072 DMX channels. The plug & play functionality ensures quick setup, while the LED function indicator displays the current operating status. The transmitter can also be used as a transceiver, providing additional flexibility.
- Easy setup with plug & play using a single button
- Interference-free operation thanks to GFSK modulation and 78 channels
- Simultaneous operation of up to 6 transmitters for expanded control
- Range of up to 400 m for flexible applications
- Transceiver functionality allows use as both transmitter and receiver.
9. Showtec Db-1-4/Rdm
The DB models from Showtec are universal DMX-512 splitters. They are designed to distribute the incoming DMX signal in daisy-chain configurations to multiple separate outputs with an additional "Through" port. They can be mounted in any 19" rack or on the truss using the M10 nut at the rear of the device. The unit features clear LEDs to indicate the DMX signal status of each output and input. Four models are available: DB-1-4 with or without RDM with 4 outputs and 3- and 5-pin XLR connectors, and DB-1-8 with or without RDM with 8 outputs featuring 3-pin XLR connectors.
10. Showtec Db-1-8
DMX Booster with 8 Channels
The DB models from Showtec are universal DMX-512 splitters. They are designed to distribute the incoming DMX signal in daisy-chain configurations to multiple separate outputs with an additional "Through" port. They can be mounted in any 19" rack or on a truss using the M10 nut at the rear of the device. The unit features clear LEDs to indicate the DMX signal status of each output and input. Four models are available: DB-1-4 with or without RDM with 4 outputs and 3- and 5-pin XLR connectors, as well as DB-1-8 with or without RDM with 8 outputs featuring 3-pin XLR connectors.
DMX splitter for 8 outputs
Electrically isolated inputs and outputs
DMX status LEDs at the inputs and outputs
3-pin XLR outputs
M10 nut on the back for a truss clamp.
