Robotics moduleavailable in a few days
CHF27.90
Purecrea 42x42x40mm Stepper Motor Nema 17 17HS4401 1.7A 0.45Nm
Motor
Best Purecrea products in the Robotics module category
On this page you'll find a ranking of the best Purecrea products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

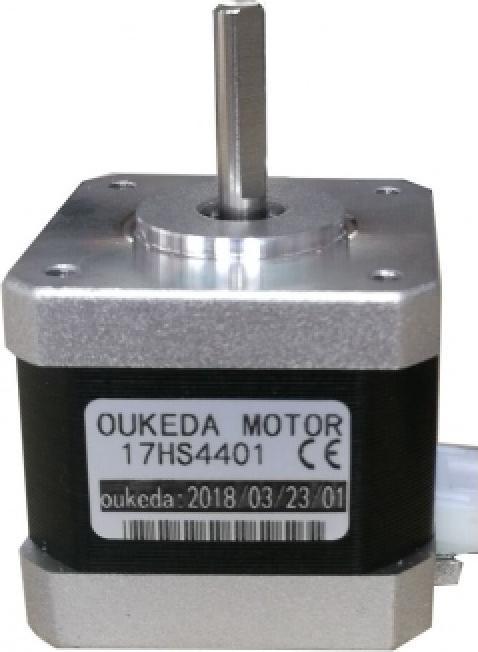

1. Purecrea 42x42x40mm Stepper Motor Nema 17 17HS4401 1.7A 0.45Nm
This OUKEDA 17HS4401 stepper motor is perfect for 3D printers, CNC machines or simply for mechanical Arduino projects. If you want to operate the stepper motor with the Arduino, we recommend you to buy an A4988, DRV8825 or TMC2208 driver.
Recommended accessories:
Driver:A4988 Stepper Motor Driver Stepper Driver Module
DRV8825 Stepper Motor Driver Stepper Driver Module
SilentStepStick TMC2208
SilentStepStick TMC2209 V2
Single Stepper Motor Stepper Control Board A4988
CNC Shield A4988 Arduino for 3D Printers and Milling Machines (GRBL)
GRBL CNC Shield V4 Nano for 3D printers and milling machines.
Connection cable:
6p PH2.0 to 4p XH2.54 stepper motor cable 1m Nema17
6p PH2.0 to 4p Dupont2.54 stepper motor cable 1m Nema17
Technical Details:
Model: 17HS4401
shaft length: 22mm
Shaft diameter: 5mm
Step angle: 1.8
Current consumption: 1.7A / phase
Maximum torque: 0.45Nm
Dimension: 42 x 42 x 40mm
Weight: 310g
Scope of delivery:
1x 42x42x40mm stepper motor Nema 17 17HS4401 1.7A 0.45Nm.
2. Purecrea 56x56x76mm Stepper Motor Nema 23 v 4.2A 1.8Nm
This powerful stepper motor is perfect for 3D printers, CNC machines or simply for mechanical Arduino projects. If you want to operate the stepper motor with the Arduino, we recommend buying a TB6600 or HY-DIV268N-5A driver.
Recommended accessories:
Purecrea TB6600 compatible stepper motor driver 4A
Purecrea HY-DIV268N stepper motor driver 5A
Technical Details:
Model: 57H1876-420-8-21B
Shaft length: 20mm
Shaft diameter: 8mm
Step angle: 1.8
Current consumption: 4.2A / phase
Maximum torque: 1.8 Nm
Connection cable length: 50cm
Size: 42 x 42 x 60mm
Weight: 1063g
Scope of delivery:
1x 56x56x76mm stepper motor Nema 23 57H1876 4.2A 1.8Nm.
Robotics moduleavailable in a few days
CHF67.90
Purecrea 56x56x76mm Stepper Motor Nema 23 v 4.2A 1.8Nm
Motor
3. Purecrea HY-DIV268N Stepper Motor Driver 5A
This HY-DIV268N-5A stepper motor driver is suitable for larger stepper motors with up to 5A current. The micro stepping and the current can be easily adjusted via DIP switches. The electrical input signal for the control is TTL compatible.
Technical details:
Colour: Black
Material: metal
Input current: 1 to 5A
Output current: 0.2 to 5A
Max current: 5A
Supply voltage: 12 to 48VDC
Operating temperature: -10 to 45°C
Dimension: 106 x 85 x 34mm
Weight: 240g
Scope of delivery:
1x HY-DIV268N-5A Stepper Motor Driver 5A.
4. Purecrea Gear motor 1:48 Single Shaft
With this Single Shaft Gear Motor you can bring movement into your Arduino projects. It is perfect for building a robot, paddle boat or any Arduino controlled vehicle. You can control the motor with our Motor Control Shield and control the speed.
Technical details:
Operating voltage: 3V to 7.2V DC
Current consumption: max. approx. 250mA
Torque: max. 0.8kg/cm
Gear ratio: 1:48
Speed: approx. 90 RPM at 3V, 200RPM at 6V
Dimensions: 69 x 22.5 x 27.5mm
Weight: 24g
Scope of delivery:
1x Gear Motor 1:48 Single Shaft.

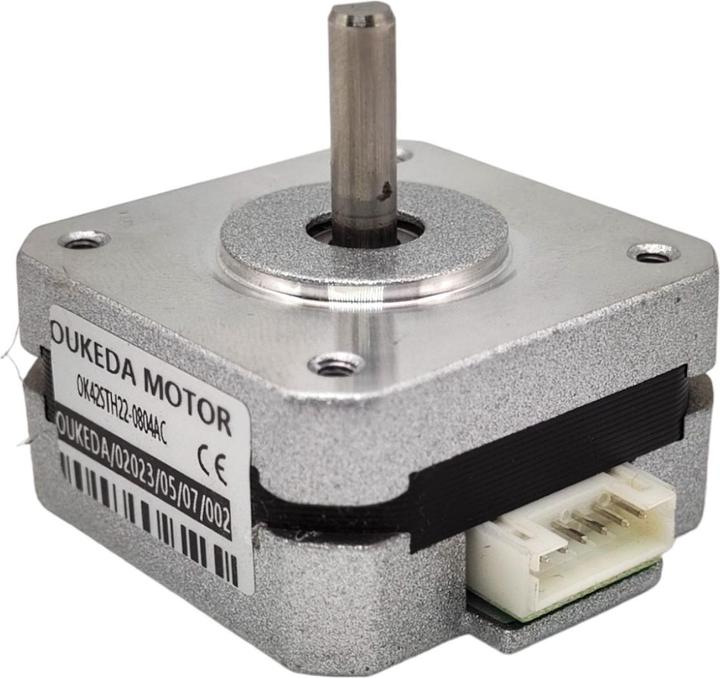

5. Purecrea 42x42x22mm stepper motor Nema 17 pancake 0.8A 0.09Nm OK42STH22-0804AC
Discover the compact and powerful 42x42x22mm stepper motor Nema 17 Pancake 0.8A 0.09Nm OK42STH22-0804AC, the perfect choice for your demanding applications. This stepper motor is characterised by its compact design and high precision. With a current consumption of just 0.8A and a holding torque of 0.09Nm, it is ideal for projects where energy efficiency and precision are paramount. The robust design ensures a long service life and reliability, even under demanding operating conditions. Thanks to its small size, it can be easily integrated into a wide range of applications. Whether in robotics, 3D printers or CNC machines, the Nema 17 pancake is your first choice when it comes to precision and reliability.
Recommended accessories:
Stepper motor cable Connection cable
A4988 Stepper motor driver Stepper driver module
DRV8825 Stepper Motor Driver Stepper Driver Module
SilentStepStick TMC2208
Single Stepper Motor Stepper Control Board A4988
CNC Shield A4988 Arduino for 3D printers and milling machines (GRBL)
Features:
Compact dimensions of 42x42x22mm for installation in tight spaces.
Power consumption of only 0.8A, ideal for energy efficient applications.
A holding torque of 0.09Nm provides precise control over your projects.
Long service life and high reliability thanks to robust construction.
Easy integration into a wide range of applications thanks to universal design.
Application examples:
Perfect for use in 3D printers to realise the finest printing details.
Ideal for small CNC machines that require precise control.
In robotics for controlling robot arms and other moving parts.
Used in DIY projects that require precise motion control.
Technical details:
Shaft length: 17mm
Shaft diameter: 5mm
Current consumption: 0.8A/phase
Holding torque: 0.09Nm
Connection type: 4-wire
Step angle: 1.8°
Dimension: 42 x 42 x 22mm
Weight: 117g
Scope of delivery:
1x stepper motor Nema 17 Pancake 0.8A 0.09Nm OK42STH22-0804AC.
Robotics moduleavailable in a few days
CHF29.90
Purecrea 42x42x22mm stepper motor Nema 17 pancake 0.8A 0.09Nm OK42STH22-0804AC
Motor
6. Purecrea 42x42x60mm Stepper Motor Nema 17 42HS60-1704A 1.7A 0.7Nm
The stepper motor is perfect for 3D printers, CNC machines or simply for mechanical Arduino projects. If you want to operate the stepper motor with the Arduino, we recommend buying an A4988, DRV8825 or TMC2208 driver.
Recommended accessories:
Driver:A4988 Stepper Motor Driver Stepper Driver Module
DRV8825 Stepper Motor Driver Stepper Driver Module
SilentStepStick TMC2208
SilentStepStick TMC2209 V2
Single Stepper Motor Stepper Control Board A4988
CNC Shield A4988 Arduino for 3D Printers and Milling Machines (GRBL)
GRBL CNC Shield V4 Nano for 3D Printers and Milling Machines
Technical details:
Model: 42HS60-1704A
shaft length: 20mm
Shaft diameter: 5mm
Step angle: 1.8°
Current consumption: 1.7A / phase
Maximum torque: 0.7Nm
Size: 42 x 42 x 60mm
Weight: 482g
Scope of delivery:
1x 42x42x60mm stepper motor Nema 17 42HS60-1704A 1.7A 0.7Nm (connection cable must be purchased separately).
Robotics moduleavailable in a few days
CHF38.90
Purecrea 42x42x60mm Stepper Motor Nema 17 42HS60-1704A 1.7A 0.7Nm
Motor
