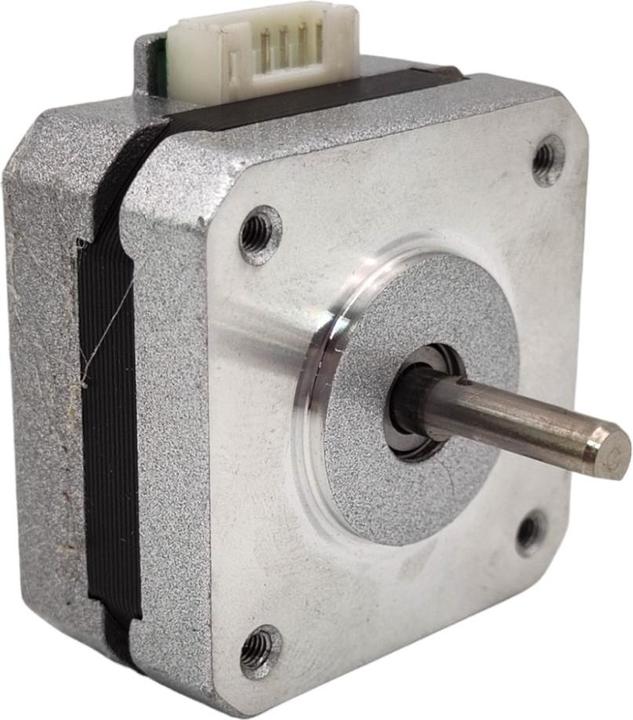

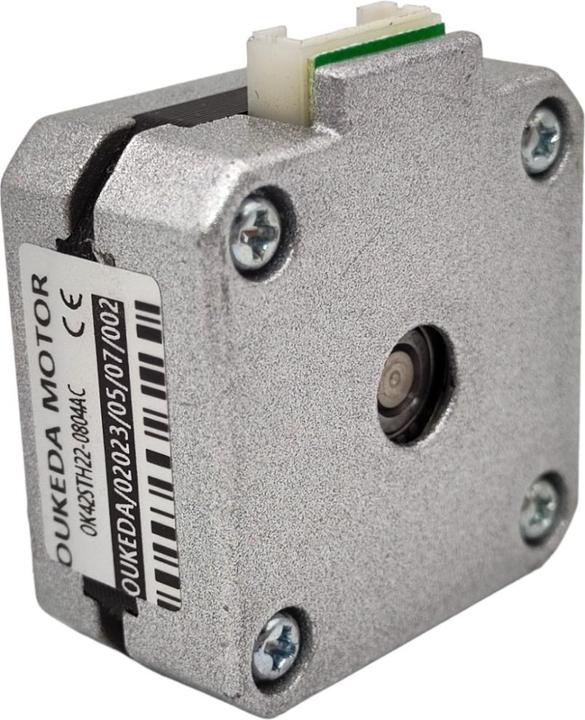

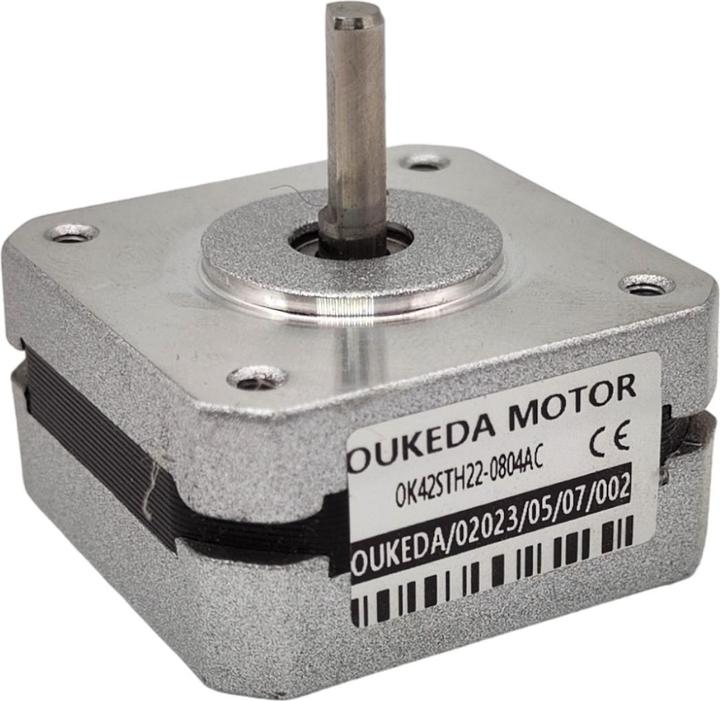

Purecrea 42x42x22mm stepper motor Nema 17 pancake 0.8A 0.09Nm OK42STH22-0804AC
MotorSupplied by
Product details
Discover the compact and powerful 42x42x22mm stepper motor Nema 17 Pancake 0.8A 0.09Nm OK42STH22-0804AC, the perfect choice for your demanding applications. This stepper motor is characterised by its compact
design and high precision. With a current consumption of just 0.8A and a holding torque of 0.09Nm, it is ideal for projects where energy efficiency and precision are paramount. The robust design ensures a long service life and reliability, even under demanding operating conditions. Thanks to its small size, it can be easily integrated into a wide range of applications. Whether in robotics, 3D printers or CNC machines, the Nema 17 pancake is your first choice when it comes to precision and reliability.
Recommended accessories:
Stepper motor cable Connection cable
A4988 Stepper motor driver Stepper driver module
DRV8825 Stepper Motor Driver Stepper Driver Module
SilentStepStick TMC2208
Single Stepper Motor Stepper Control Board A4988
CNC Shield A4988 Arduino for 3D printers and milling machines (GRBL)
Features:
Compact dimensions of 42x42x22mm for installation in tight spaces.
Power consumption of only 0.8A, ideal for energy efficient applications.
A holding torque of 0.09Nm provides precise control over your projects.
Long service life and high reliability thanks to robust construction.
Easy integration into a wide range of applications thanks to universal design.
Application examples:
Perfect for use in 3D printers to realise the finest printing details.
Ideal for small CNC machines that require precise control.
In robotics for controlling robot arms and other moving parts.
Used in DIY projects that require precise motion control.
Technical details:
Shaft length: 17mm
Shaft diameter: 5mm
Current consumption: 0.8A/phase
Holding torque: 0.09Nm
Connection type: 4-wire
Step angle: 1.8°
Dimension: 42 x 42 x 22mm
Weight: 117g
Scope of delivery:
1x stepper motor Nema 17 Pancake 0.8A 0.09Nm OK42STH22-0804AC.
Recommended accessories:
Stepper motor cable Connection cable
A4988 Stepper motor driver Stepper driver module
DRV8825 Stepper Motor Driver Stepper Driver Module
SilentStepStick TMC2208
Single Stepper Motor Stepper Control Board A4988
CNC Shield A4988 Arduino for 3D printers and milling machines (GRBL)
Features:
Compact dimensions of 42x42x22mm for installation in tight spaces.
Power consumption of only 0.8A, ideal for energy efficient applications.
A holding torque of 0.09Nm provides precise control over your projects.
Long service life and high reliability thanks to robust construction.
Easy integration into a wide range of applications thanks to universal design.
Application examples:
Perfect for use in 3D printers to realise the finest printing details.
Ideal for small CNC machines that require precise control.
In robotics for controlling robot arms and other moving parts.
Used in DIY projects that require precise motion control.
Technical details:
Shaft length: 17mm
Shaft diameter: 5mm
Current consumption: 0.8A/phase
Holding torque: 0.09Nm
Connection type: 4-wire
Step angle: 1.8°
Dimension: 42 x 42 x 22mm
Weight: 117g
Scope of delivery:
1x stepper motor Nema 17 Pancake 0.8A 0.09Nm OK42STH22-0804AC.
| Engine type | Step motor |
| Item number | 43806201 |
| Manufacturer | |
| Category | |
| Release date | 3/18/2024 |
| Maximum order quantity | 85 |
| Module type | Motor |
| Engine type | Step motor |
| Length | 42 mm |
| Width | 42 mm |
| Height | 22 mm |
| Weight | 117 g |
| Weight | 117 g |
