Best Eltako products in the Relays category
On this page you'll find a ranking of the best Eltako products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Eltako ER12-001-UC
Wechsler potential-free 16A 250V AC, 230V LED lamps up to 200W, incandescent lamps 2000W. No standby loss. Rail-mounted device for installation on DIN-EN60715 TH35 mounting rails. Division unit 18mm wide, 58mm deep. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. Universal control voltage 8..230V UC. Low switching noise. Control indication with LED. Integrated freewheeling suppression diode A1=, A2= -. Safe isolation according to VDE 0106, part 101, therefore also usable as a coupling relay. By using a bistable relay, there is no coil loss and no heating even when switched on. The relay contact can be open or closed during commissioning and will synchronize on the first actuation. This relay is not suitable for feedback with the switching voltage of a dimmer switch. For this purpose, only the relays ESR12DDX-UC, ESR12NP-230VUC, or ESR61NP-230VUC should be used. The electronics have no independent power supply and therefore no standby loss. Only when the control contact is closed is the microcontroller activated, which switches the bistable relay in the correct direction. When the control contact is opened or the control voltage drops, it switches back. ER12-001-UC.
2. Eltako FR12-230V
1 non-potential-free switch 16A/250V AC. 230V LED lamps up to 200W, incandescent lamps 2300W. Self-learning. Standby loss only 0.8 watts. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high switching capacity of special relays. The field disconnector interrupts the power supply after the shutdown of downstream consumers, thereby preventing disturbing electromagnetic fields. Small consumers with a current draw of up to 200mA are allowed, which do not prevent the field disconnection after larger consumers are switched off. The threshold does not need to be set manually but is learned automatically by the FR12 using a patented method. Consumers with a current draw of more than 200mA are always defined as consumers that should trigger the connection of the mains voltage. As long as no larger consumer is switched on, the monitored circuit remains disconnected from the mains in a single-pole manner. Neutral and protective conductors are not switched to prevent an antenna effect. A low ripple adjustable DC voltage is present for monitoring. Therefore, bridging the working contact is not permitted and will lead to the destruction of the device. When a consumer is switched on, the field disconnector reconnects the monitored phase with a delay of about 1 second, and the LED lights up red.
3. Eltako Staircase lighting timer
The Eltako stair light timer switch TLZ61NP-230V is a reliable time relay designed for installation. With an input voltage of 230 V AC, this device is suitable for controlling lighting systems in stairwells and other areas where timed lighting is necessary. The switch offers a time setting from 1 to 12 minutes, allowing for flexible adjustment to individual needs. By using a bistable relay, it achieves high energy efficiency, as there is no coil loss in the switched-on state. Additionally, the zero-crossing switching protects the contacts and lamps, extending the lifespan of the components. The stair light timer switch is compatible with various types of lamps, including LED lamps, energy-saving lamps, and incandescent bulbs, and offers additional features such as a switch-off warning and the ability to activate continuous light.
- Energy-efficient design with only 0.7 watts standby loss
- Automatic detection of circuit type for easy installation
- Switch-off warning with visual flickering 30 seconds before expiration
- Continuous light function that automatically turns off after 60 minutes
- Compatible with various lamp types up to 2000W.
4. Eltako Eud12npn-Uc
Universal dimmer switch with automatic lamp detection. Standby loss is only 0.1 watts. Minimum or maximum brightness and dimming speed are adjustable. Equipped with children's room and snooze functions. The dimmer switch is dependent on ventilation conditions and supports dimmable energy-saving lamps (ESL) as well as dimmable 230V LED lamps, depending on the lamp electronics. Switching occurs at zero crossing with soft start and soft off to protect the lamp. There is a universal control voltage that is galvanically isolated from the supply and switching voltage. No minimum load is required. Short control commands turn the light on or off, while a continuous signal adjusts the brightness to the maximum value. Interrupting the control signal changes the dimming direction. The set brightness level is saved when turned off (memory). In the event of a power failure, the switching position and brightness level are saved and can be turned on again when the supply voltage returns. From 110V control voltage, the glow lamp current is 5mA. An automatic electronic overload protection and over-temperature shut-off are also included.
5. Eltako Multifunktions-Zeitrelais
Analogue adjustable multifunction time relay with 18 functions. Stand-by loss only 0.02 - 0.6 watts. Simply connect the N conductor to the terminal (N) and L to 15 (L). This results in an additional standby consumption of only 0.1 watts. Universal control voltage 8..230V UC. Supply voltage as the control voltage. Times between 0.1 seconds and 40 hours can be set. Thanks to the use of a bistable relay, there is no coil power loss or heating even when switched on. After installation, wait for the short automatic synchronisation before connecting the switched load to the mains. Two different function levels can be selected depending on whether the power supply is connected to terminals B1-A2 or B2-A2.
6. Eltako R12-110-230V switching relay 1S+1OE (V) 16A 2211003
The Eltako R12-110-230V switching relay is an electromechanical relay designed for controlling electrical loads. It offers a rated voltage of 230V and a maximum switching current of 16A. The relay features a normally closed contact and a normally open contact, allowing for flexible application in various electrical circuits. With a duty cycle of 100%, it is suitable for continuous operation. Manual operation and a switching position indicator ensure easy handling and monitoring of the switching state. The device is designed for mounting on a DIN rail and occupies a width of 18mm. The high test voltages of 2000V between the contacts and 4000V between the control terminals and the contacts ensure high safety and reliability in operation.
- Duty cycle of 100% for continuous operation
- Manual operation and switching position indicator for easy handling
- High test voltage of 2000V between contacts
- Test voltage of 4000V between control terminals and contacts
- Suitable for mounting on DIN rail (18mm width).
7. Eltako Time relay Current relay. 1 changeover contact potential free 16A/250V AC
Rail-mounted device for installation on a mounting rail (1 TE). Simply connect the neutral conductor to the terminal (N) and the live conductor to 1 (L). This results in an additional standby consumption of only 0.1 watts. If the contact is used to control switching devices that do not switch at zero crossing, (N) should not be connected, as the additional closing delay would otherwise have the opposite effect. An internal ring core current transformer compares the alternating current flowing through a load V1 from 0.1 A to a maximum of 32 A with the set value, and if exceeded, a relay disconnects a load V2 connected to terminal 2 within 0.5 seconds or switches on a load V3 connected to terminal 3. Setting accuracy is ±5%. The relay always switches on at 25 A. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. The current base A is set using the lower locking rotary switch A.

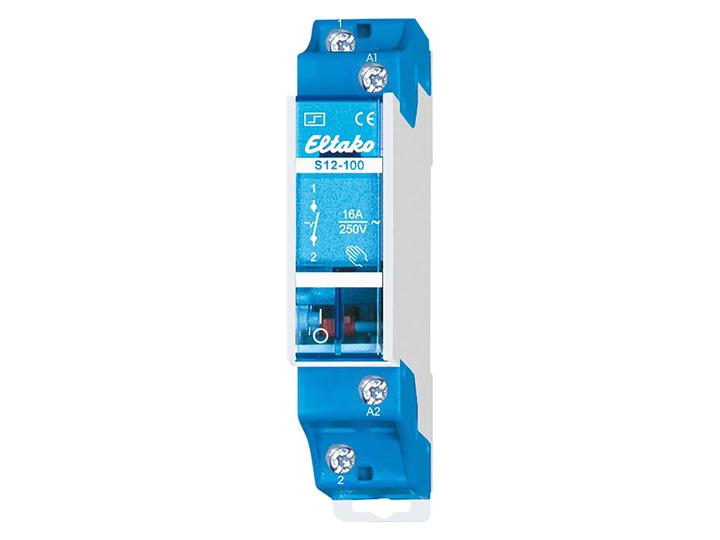

8. Eltako Impulse switch
Eltako current impulse switch f.series S12-100-12V
Manufacturer: Eltako
Designation: Current impulse switch f.series
Type: S12-100-12V
Function: Other
Mounting type: DIN-rail
Width in pitch units: 1
Mounting depth: 55 mm
Number of contacts as normally open: 1
Control voltage 1: 12 V
Control voltage type 1: AC
Frequency of control voltage 1: 50 Hz
Rated breaking current: 16 A
Max. incandescent lamp load: 2300 W
Max. fluorescent lamp load: 2300 VA
Max. fluorescent lamp load (duo circuit): 2300 VA
Max. fluorescent lamp load (parallel compensated): 2300 W
Fluorescent lamp load (parallel compensated): 500 VA
Max. switching current (cos phi: 0 A)
Switching current (cos phi: 0.6): 10 A
Suitable for manual operation: Yes
Electromechanical current impulse switch with manual operation and switch position indication. Duty cycle 100%. Control power requirement 5-6 W. Contact spacing 3 mm. Distance control terminals/contact > 6 mm. Suitable for connection to SELV mains.
EAN: 4010312100455.
9. Eltako Time relay changeover contact potential free
Analog adjustable time relay with a standby loss of only 0.02 to 0.4 watts. This time relay is identical in design to the multifunction time relay but has only one function. With the type EAW12DX-UC, you can select between the functions of on-delay (EW), off-delay (AW), or on and off delay (EAW) using a rotary switch. The neutral conductor is connected to terminal (N) and L to 15 (L), resulting in an additional standby consumption of only 0.1 watts. It has a universal control voltage of 8 to 230 V UC, with the supply voltage corresponding to the control voltage. The time range extends from 0.1 seconds to 40 hours. By using a bistable relay, there is no coil power loss or heating even in the switched-on state. After installation, the automatic short synchronization should be waited for before connecting the switched load to the power supply. A LED under the large rotary switch indicates the time elapsed.
10. Eltako Multifunction time relay Functions changeover contact potential-free
Digital adjustable multifunction time relay with 18 functions. Standby loss is only 0.05 to 0.5 watts. Simply connect the neutral wire to terminal (N) and the live wire to terminal 15 (L). This results in an additional standby consumption of only 0.1 watts. Universal control voltage of 8 to 230 V AC. Supply voltage is the same as the control voltage. Both the function and the times are entered with a button press and displayed digitally on an LCD. Only two buttons need to be operated for this. When setting the time, all values can be entered within the selected time frames (0.1 to 9.9 or 1 to 99 seconds, minutes, or hours). The maximum time is 99 hours. A total of 600 time settings are possible. The entered time(s) is (are) constantly displayed digitally. By using a bistable relay, there is no coil loss and no heating even when switched on. After installation, wait for the automatic short synchronization.
