Best Alfa Network products in the Network cards category

On this page you'll find a ranking of the best Alfa Network products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

1. Alfa Network AWPCIE-AX200U - High-Efficiency Intel AX200 mini PCIe WiFi6 and BT5 Card

AWPCIE-AX200U - High-Efficiency Intel AX200 mini PCIe WiFi6 and BT5 Card

AWPCIE-AX200U is a half-size mini PCIe WiFi6 card, based on high-efficiency Intel AX200

AWPCIE-AX200U
supports the latest WiFi6 (IEEE 802.11ax) with special features like OFDMA, 1024QAM and MU-MIMO. The module also includes a Bluetooth 5.0 radio, is backward compatible (IEEE 802.11a/b/g/n/ac) and operates in the 2.4 and 5 GHz bands.

Thanks to its mini PCIe form factor (half-size) and IPEX/U.FL antenna connectors, owners of legacy products can use the latest wireless technologies with up to 2.4 Gbps data rate.

The wide support in modern operating systems (Microsoft Windows 10, Linux, Chrome OS) helps with seamless module integration.

- Intel product code: AX200D2WL (Intel AX200 Cyclone Peal 2 series)

- IEEE 802.11 standards: a/b/g/n/ac/ax

- Special features: OFDMA, 1024QAM, MU-MIMO, TPC/DFS, TWT

- Frequency: 2.4 GHz, 5 GHz

- Data rate: 2.4 Gbps

- Bluetooth: 5.0

- Antenna connectors: 2x IPEX/U.FL

- Interface: 1x PCIe (WiFi), USB 2.0 (Bluetooth)

- Operating systems: Microsoft Windows 10, Linux, Chrome OS

- Form factor: Half-size mini PCIe

- Dimensions: 30 x 26,8 x 2,75 mm.


Alfa Network AWPCIE-AX200U - High-Efficiency Intel AX200 mini PCIe WiFi6 and BT5 Card (USB 2.0, PCIe)
Network cards
CHF61.90

Alfa Network AWPCIE-AX200U - High-Efficiency Intel AX200 mini PCIe WiFi6 and BT5 Card

USB 2.0, PCIe

2. Alfa Network AWPCI085ALR - 802.11a high-power miniPCI Module

ALFA AWPCI085ALR - 802.11a high-power miniPCI Module

802.11a miniPCI is compliant with the IEEE 802.11a standard and can be used to provide a variety of high-power
wireless network interface cards.

Features:

- Fully IEEE 802.11a standard compliant to provide wireless speeds of 108 Mbps data rates

- High power

- Allows auto-fallback data rate for optimized reliability, throughput and transmission range: 54/48/36/24/18/12/11/9/6/5.5/2/1 Mbps

- Super A mode supports up to 108 Mbps for 802.11a

- Strong network security with 802.1x, Wi-Fi Protected Access, and WEP encryption

- Driver/Utility supports most commonly used operating systems including Windows 98/SE/ME/2000/XP/Vista/7

- Conform to industry-standard miniPCI Card Type III-B specification

- Chip Set: Atheros(AR5006X AR5414)

- Interface Type: MiniPCI Type III B

- Frequency Band - IEEE 802.11a:

- 5150 MHz –5250 MHz (Japan)

- 5150 MHz –5350 MHz / 5470 MHz5725 MHz (Europe)

- 5150 MHz –5350 MHz / 5725 MHz5850 MHz (USA)

- Channels - IEEE 802.11a:

- 4 Channels (Japan)

- 19 Channels (Europe)

- 13 Channels (USA)

- Emission Type: OFDM, DSSS

- Output power: 23 dBm

- Frequency Stability: Within + 20 ppm

- Data Modulation Type:

- BPSK (6 / 9Mbps) / QPSK (12 / 18Mbps) / CCK (5.5 / 11 Mbps)

- 16QAM (24 / 36Mbps) / 64QAM (48 / 54 Mbps)

- Power: 3.3 Volt + 5%

- Power Consumption:

- TX: under 1000 mA

- RX: under 450 mA

- Antenna connector: 1x Diversity MMCX connector

- Antenna port impedance: 50 Ohm

- Bus Interface: MiniPCI 1.0 compliant

- Security: Hardware 64/128-bit WEP/TKIP/AES-CCM/ 802.1x, WPA

- Operating Temperature: -20°C to +65°C

- Storage Temperature: -20°C ~ 75°C

- Humidity: 5 ~ 95% non-condensing

- Sensitivity: -76 dBm (at) 64Qam (typ.)

- Dimensions: 59.75 x 44.6 x 5 mm.


Alfa Network AWPCI085ALR - 802.11a high-power miniPCI Module (PCI)
Network cards
CHF39.70

Alfa Network AWPCI085ALR - 802.11a high-power miniPCI Module

PCI

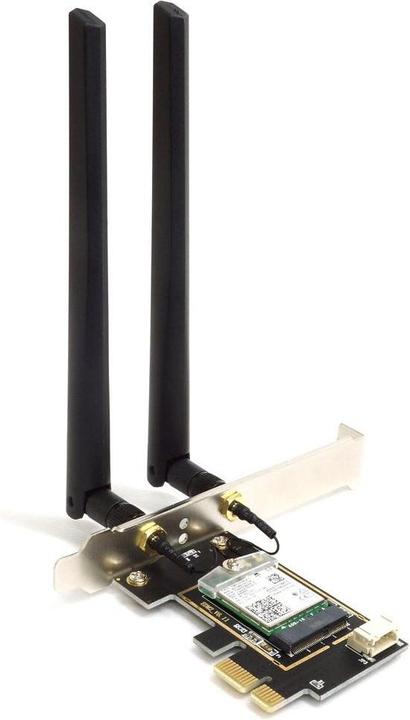

3. Alfa Network AIT-AX210 - WiFi 6E and Bluetooth 5 card w/ 2x dipole antennas

WiFi 6E and Bluetooth 5 Card w/ 2x Dipole Antennas

AIT-AX210 is a WiFi 6E PCIe card, based on the Intel AX210 module.

AIT-AX210 supports the latest WiFi 6E (IEEE
802.11ax) standard with special features like OFDMA, 1024QAM and MU-MIMO. The module also includes Bluetooth 5.2, is backwards compatible and operates in the 2.4, 5 and 6 GHz bands.

The PCI Express interface allows using this set in any desktop PC equipped with a x1, x4, x8 or x16 PCIe slot.
Intel product code: AX210NGW; Intel WiFi 6E (Gig+)/Typhoon Peak series
IEEE 802.11 standards: a/b/g/n/ac/ax
Special features: OFDMA, 1024QAM, MU-MIMO, TPC/DFS, TWT
Frequency: 2.4 GHz; 5 GHz; 6 GHz
Data rate: Up to 2.4 Gbps
Bluetooth: 5.2 (USB 2.0 cable included)
Antenna type: 2x tri-band dipole (5 dBi gain)
Antenna connectors (adapter): 2x RP-SMA (pigtail RF cables included)
Antenna connectors (module): 2x IPEX4 (MHF4)
Interface: 1x PCIe (Wi-Fi); USB 2.0 (Bluetooth)
Operating systems: Microsoft Windows 10 and 11; Linux (kernel 5.10 and above)
Form factor (adapter): 1x PCI Express (compatible with x1, x4, x8 and x16 slot type)
Form factor (module): M.2/NGFF A+E-key 2230
Bundle contents: 1x Intel AX210NGW module, 1x PCIe x1 to M.2/NGFF A+E-key 2230 adapter board, 2x dipole antennas with IPEX4 (MHF4) to RP-SMA female pigtail, 1x plastic IPEX4 (MHF4) connectors cover, 1x USB 2.0 cable for Bluetooth, assembly accessories (screws, etc.).


Alfa Network AIT-AX210 - WiFi 6E and Bluetooth 5 card w/ 2x dipole antennas (USB 2.0, PCIe)
Network cards
−18%
CHF63.90 was CHF77.90

Alfa Network AIT-AX210 - WiFi 6E and Bluetooth 5 card w/ 2x dipole antennas

USB 2.0, PCIe

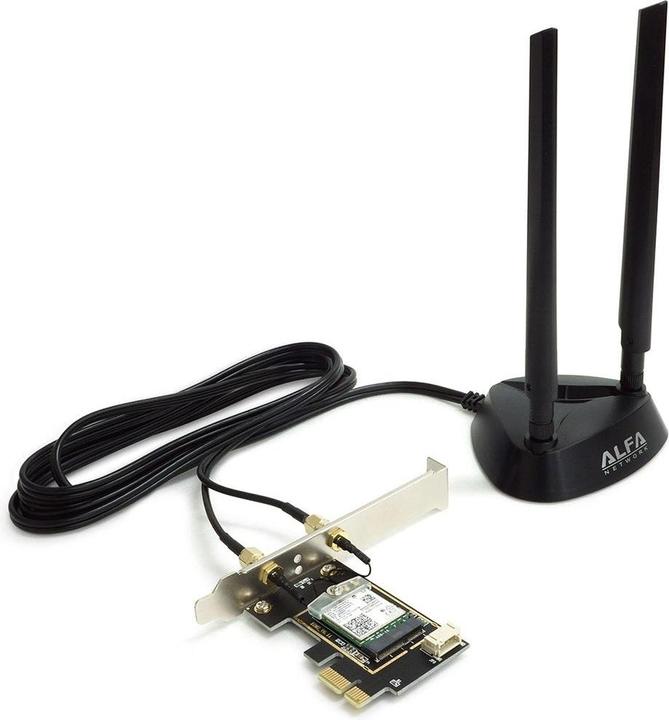

4. Alfa Network AIT-AX210-EX - WiFi 6E and Bluetooth 5 card w/ 2x dipole antennas and stand

WiFi 6E and Bluetooth 5 Card w/ 2x Dipole Antennas and Stand

AIT-AX210-EX is a WiFi 6E PCIe card, based on the Intel AX210 module.

AIT-AX210-EX supports the latest
WiFi 6E (IEEE 802.11ax) standard with special features like OFDMA, 1024QAM and MU-MIMO. The module also includes Bluetooth 5.2, is backwards compatible and operates in the 2.4, 5 and 6 GHz bands.

The PCI Express interface allows using this set in any desktop PC equipped with a x1, x4, x8 or x16 PCIe slot.

- Intel product code: AX210NGW; Intel WiFi 6E (Gig+)/Typhoon Peak series

- IEEE 802.11 standards: a/b/g/n/ac/ax

- Special features: OFDMA, 1024QAM, MU-MIMO, TPC/DFS, TWT

- Frequency: 2.4 GHz; 5 GHz; 6 GHz

- Data rate: Up to 2.4 Gbps

- Bluetooth: 5.2 (USB 2.0 cable included)

- Antenna type: 2x tri-band dipole (5 dBi gain, ARS-AS02T dual magnetic antenna stand with 2-meter RG-174 RF cable included)

- Antenna connectors (adapter): 2x RP-SMA (pigtail RF cables included)

- Antenna connectors (module): 2x IPEX4 (MHF4)

- Interface: 1x PCIe (Wi-Fi); USB 2.0 (Bluetooth)

- Operating systems: Microsoft Windows 10 and 11; Linux (kernel 5.10 and above)

- Form factor (adapter): 1x PCI Express (compatible with x1, x4, x8 and x16 slot type)

- Form factor (module): M.2/NGFF A+E-key 2230

- Bundle contents: 1x Intel AX210NGW module, 1x PCIe x1 to M.2/NGFF A+E-key 2230 adapter board, 1x ARS-AS02T magnetic antenna stand, 2x dipole antennas with IPEX4 (MHF4) to RP-SMA female pigtail, 1x plastic IPEX4 (MHF4) connectors cover, 1x USB 2.0 cable for Bluetooth, assembly accessories (screws, etc.).


Alfa Network AIT-AX210-EX - WiFi 6E and Bluetooth 5 card w/ 2x dipole antennas and stand (PCIe, USB 2.0)
Network cards
CHF52.90

Alfa Network AIT-AX210-EX - WiFi 6E and Bluetooth 5 card w/ 2x dipole antennas and stand

PCIe, USB 2.0

5. Alfa Network ALMC1308U - 8-channel LoRaWAN(TM) concentrator, mini PCIe module with USB interface

ALMC1308U - 8-channel LoRaWAN(TM) concentrator, mini PCIe module with USB interface

ALMC1308U is a full-size mini PCIe LoRaWAN(TM) concentrator module based on
Semtech(TM) SX1308.

The ALMC1308U concentrator module series allows building certified LoRaWAN(TM) gateways on any system equipped with standard mini PCIe slot and USB 2.0 interface.

Open source software and firmware availability, easy USB DFU-based firmware upgrades and a large community gathered around LPWAN technologies will help to kick start your LoRa(TM) network project.

Key features

- Semtech(TM) SX1308 digital baseband chipset

- Dual Semtech(TM) SX1257 transceivers

- Skyworks(TM) SE2435L-R front-end

- Standard mini PCIe form factor

- USB 2.0 interface (with optional SPI)

- Full body metal shielding design

- RX/TX LEDs

- Chipset: Semtech(TM) SX1308 + 2x SX1257

- Frequency: 863 ~ 870 MHz (EU)

- Modulation: LoRa(TM)

- TX power: 21 dBm

- RX sensitivity (EU, 125 kHz bandwidth): -124 dBm (SF7); -138 dBm (SF12)

- Antenna connector: 1x IPEX/U.FL

- Interface: USB 2.0, SPI (option)

- LED: 1x TX; 1x RX

- Form factor: Full-size mini PCIe

- Operating humidity 10 % ~ 90 % RH, non-condensing

- Operating temperature: TBA.


Alfa Network ALMC1308U - 8-channel LoRaWAN(TM) concentrator, mini PCIe module with USB interface
Network cards
CHF98.90

Alfa Network ALMC1308U - 8-channel LoRaWAN(TM) concentrator, mini PCIe module with USB interface

6. Alfa Network US036NFM - 802.11n USB Module (RT5370)

ALFA Network US036NFM 802.11n USB Module (RT5370)

The US036NFM is a WiFi board for an USB stick. It has USB pin holes and an internal antenna.

- USB Pin Hole

- Internal Antenna (2dBi)

Feature:

- Ralink RT5370

- WPS connector

- Compliant with 802.11b/g/n

- Speed up to 150 Mbps

- Soft AP supported

- Supports Windows 2000/XP/ Vista/Win7/Win8, Linux, MAC driver

Application:

- IP camera

- Media Box

- Android TV Box

- POS system

- Medical device

- Self-service KIOSK

Model: US036NFM

Chipset: Realink RT5370

Standards: Wireless: IEEE 802.11b/g/n

Frequency Range: 2.412 ~ 2.483 GHz

Data Rate:

- 802.11b: UP to 11 Mbps

- 802.11g: UP to 54 Mbps

- 802.11n: UP to 150 Mbps

Serial interface: 4 pin header for RS232

OS Supported: Windows 2000, XP, Vista, Win7, Win8, Mac 10.4, 10.5, 10.6 and Linux, Support Soft AP

Channels:

- 1~11 channels ( North America )

- 1~13 channels ( General Europe)

- 1~14 channels (Japan)

Sensitivity:

- 11b: -96 dBm

- 11g: -91 dBm

- 11n: -87 dBm

Data modulation type: BPSK,QPSK, CCK and OFDM

Power voltage: 5 V + 5%

Security:

- WEP 64/128, 802.1X support

- Wi-Fi Protected Access (WPA),

- WPA-PSK, WPA II-PSK

- Cisco CCX support

- WAPI-PSK, WAPI-CERT

Operating temperature: 0°C ~ 50°C

Storage temperature: -40°C ~ 70°C

Humidity: 5% ~ 98% non-condensing

Dimensions: 46*18 mm.


Alfa Network US036NFM - 802.11n USB Module (RT5370)
Network cards
CHF15.70

Alfa Network US036NFM - 802.11n USB Module (RT5370)

7. Alfa Network AWPCIE-1900U - 802.11ac AC1900 USB mini PCIe adapter

AWPCIE-1900U - 802.11ac AC1900 USB mini PCIe adapter

AWPCIE-1900U is an 802.11ac AC1900 USB to Mini PCIe adapter which uses the most common and high performance
4x3 Realtek RTL8814AU chipset. It supports diverse platforms like Windows, Mac OSX and Linux and is suitable for all kinds of embedded applications such as POS, Medical Machine, IoT.. etc.

- Chipset: RTL8814AU

- Standard: 802.11a/ac/b/g/n

- Frequency :2.412 - 2.472 GHz; 5.150 - 5.825 GHz

- Host interface: PCI-Express 1.1 standard

- Operating voltage: 3.3 V DC

- Power consumption: Typical: 1 A (at) 3.3 V

- Antenna connector: 4x U.FL connector

- Data rate: 600 Mbps (at) 2.4 GHz; 1300 Mbps (at) 5 GHz

- Environment temperature: Operating: -20°C to +55°C; Storage: -40°C to + 80°C

- Environment humidity: Operating: 10% to 90%; Storage: 5% to 95%.


Alfa Network AWPCIE-1900U - 802.11ac AC1900 USB mini PCIe adapter (PCI Express 1.1)
Network cards
CHF48.90

Alfa Network AWPCIE-1900U - 802.11ac AC1900 USB mini PCIe adapter

PCI Express 1.1

8. Alfa Network AHMC7292S WiFi HaLow™ mini PCIe module

AHMC7292S is world's first WiFi HaLow™ mini PCIe module

The AHMC7292S module series allows building long range, ultra-low power WiFi networks in sub 1 GHz license-exempt
bands. WiFi HaLow™ enables connectivity for many applications, including sensors and wearables.

With support for standalone and host based modes, up to 15 Mbps data throughput and complete SDK, getting started with this new WiFi standard will be straightforward.


Alfa Network AHMC7292S WiFi HaLow™ mini PCIe module
Network cards
CHF84.90

Alfa Network AHMC7292S WiFi HaLow™ mini PCIe module

9. Alfa Network AWPCI085S - AR5006x a/b/g mini PCI Module

AWPCI085S - AR5006x a/b/g mini PCI Module

Industrial level 802.11a/b/g Atheros mini PCI module.

Features:

- Wide temperature range (-20ºC ~ +65ºC)

- Chipset:
Atheros AR5006XS AR5414

- Operates in the 802.11a/b/g 2.4/5 GHz frequency

- Supports Windows 2000/XP, Linux drivers

- High power 100 mW antenna, connector: U.FL diversity for 11a/b/g

- 64/128-bit WEP encryption, WPA

- Model: AWPC085S

- Chip set: AR5414

- Interface type: Mini PCI type III B

- Frequency bands: IEEE 802.11a: 5150 MHz – 5250 MHz (Japan), 5150 MHz – 5350 MHz/5470 MHz - 5725 MHz (Europe), 5150 MHz – 5350 MHz/5725 MHz - 5850 MHz (USA); IEEE 802.11g/b: 2400 MHz – 2483.5 MHz (for USA, Canada & Europe)

- Channel: IEEE 802.11a: 4 channels (Japan), 19 channels (Europe), 13 channels (USA); IEEE 802.11g/b: 14 channels (Japan), 13 channels (Europe), 11 channels (USA)

- Emission type: OFDM, DSSS

- Output power: IEEE 802.11a: 14 dBi +/- 1 dBi; IEEE 802.11g/b: 19 dBi +/- 1 dBi

- Frequency stability: Within + 20 ppm

- Data modulation type: BPSK (6/9 Mbps)/QPSK (12/18 Mbps)/CCK (5.5/11 Mbps)/16QAM (24/36 Mbps)/64QAM (48/54 Mbps)

- Power: 3.3 Volt + 5%

- Power consumption TX: under 1300 mA; RX: under 300 mA

- Antenna connector: U.FL connector, 2x antenna ports

- Impedance: 50 ohm

- Bus interface: Mini PCI 1.0 compliant

- Security: Hardware 64/128-bit WEP/TKIP/AES-CCM/ 802.1x, WPA

- Data rate: 802.11a: Up to 54 Mbps(108 Mbps @ Turbo Mode); 802.11g: Up to 54 Mbps; 802.11b: Up to 11 Mbps

- Operating temperature: -40°C to +75°C

- Humidity: 5 ~ 95%, non-condensing

- Sensitivity: -74 dBm @ 64Qam (typ.)

- Dimension: 59.75 x 44.6 x 5 mm.


Alfa Network AWPCI085S - AR5006x a/b/g mini PCI Module
Network cards
CHF32.90

Alfa Network AWPCI085S - AR5006x a/b/g mini PCI Module

10. Alfa Network US036NFM-I - US036NFM-1 802.11n USB Module w/ USB Pin Hole + IPEX Connector

ALFA Network US036NFM-1 802.11n USB Module w/ USB Pin Hole + IPEX Connector

The US036NFM-1 is a WiFi board for an USB stick with USB pin holes and an IPEX connector
for an external antenna.

- USB Pin Hole

- External Antenna (IPEX)

Features:

- Ralink RT5370

- WPS connector

- Compliant with 802.11b/g/n

- Speed up to 150 Mbps

- Soft AP supported

- Supports Windows 2000/XP/ Vista/Win7/Win8, Linux, MAC driver

Applications:

- IP camera

- Media Box

- Android TV Box

- POS system

- Medical device

- Self-service KIOSK

Model: US036NFM

Chipset: Realink RT5370

Standards: Wireless: IEEE 802.11b/g/n

Frequency Range: 2.412 ~ 2.483 GHz

Data Rate:

- 802.11b: UP to 11 Mbps

- 802.11g: UP to 54 Mbps

- 802.11n: UP to 150 Mbps

Serial Interface: 4 Pin Header for RS232

OS Supported: Windows 2000, XP, Vista, Win7, Win8, Mac 10.4, 10.5, 10.6 and Linux, Support Soft AP

Channels:

- 1~11 channels ( North America )

- 1~13 channels ( General Europe)

- 1~14 channels (Japan)

Sensitivity:

- 11b: -96 dBm

- 11g: -91 dBm

- 11n: -87 dBm

Data Modulation Type: BPSK,QPSK, CCK and OFDM

Power Voltage: 5 V + 5%

Security:

- WEP 64/128, 802.1X support

- Wi-Fi Protected Access (WPA),

- WPA-PSK, WPA II-PSK

- Cisco CCX support

- WAPI-PSK, WAPI-CERT

Operating Temperature: 0°C ~ 50°C

Storage Temperature: -40°C ~ 70°C

Humidity: 5% ~ 98% non-condensing

Dimensions: 46*18 mm.


Alfa Network US036NFM-I - US036NFM-1 802.11n USB Module w/ USB Pin Hole + IPEX Connector
Network cards
CHF19.90

Alfa Network US036NFM-I - US036NFM-1 802.11n USB Module w/ USB Pin Hole + IPEX Connector
