Best selling Lab power supplies from Peaktech
This page always stays fresh and updates automatically.
1. Peaktech P 6227 Switched-mode power supply unit
This newly developed laboratory power supply offers an adjustable 0...60V or 0...6A DC main output with a maximum continuous power of 150W. For developers, this lab power supply offers two switchable USB outputs with their own LCD display with voltage and current values. If you use a load up to 2.5A, you can regulate the output voltage up to 60V. If you want to use a higher current up to 6A, regulate the load to a maximum of 25V. Of course, all levels in between are also adjustable, such as 30V/5A, 40V/3.7A or 50V/3A. The current and voltage setting is also done when the output is switched off. By pressing the rotary knob for current or voltage, the setting resolution can be switched fine/coarse from 1mA to 100mA or 10mV to 1V. Due to the high range of functions and the simple operation with the best price/performance ratio, this laboratory power supply is ideal for the training, hobby, developer and service area.
What our customers think
Pro
- Power, compact, precise measurement
- Simple operation
- Easy to operate
Contra
- Airflow?
- No power display
- see comment
2. Peaktech P 6225 A Switched-mode power supply unit
This laboratory power supply offers a variable DC voltage output of 0 - 30 V or 0 - 5 A. The current and voltage settings are made via digital potentiometers, allowing both values to be adjusted even when the output sockets are turned off. By pressing the respective rotary knob for current or voltage, the adjustment resolution can be switched from 10 mA to 100 mA or from 10 mV to 1 V. To ensure safe measurements, there is a button on the front of the PeakTech 6225 A that is used to control the output of the voltage on and off. The display also indicates when the output is active. Another notable feature is the CV and CC function of the laboratory power supply. With this function, the voltages and currents can be set to constant values that do not change when a load is connected. These features make the PeakTech 6225 A a remarkable companion for any hobbyist in electronics, as well as for any specialist.
What our customers think
Pro
- Light and small
- Small and compact
3. Peaktech P 6080 A Linear laboratory power supply unit
The new PeakTech 6080 A is a linear regulated laboratory power supply with passive cooling and high resolution digital display (1mA and 10mV). This model features coarse/fine control via separate potentiometers for precise selection of current and voltage settings. Due to the linear technology used, this model does not generate any high-frequency interference and a safety transformer in accordance with EN-61558-2-6 has also been used, which outputs a safety extra-low voltage (SELV) to ensure the greatest possible user safety. This power supply unit in modern design has been specially designed for the service and training sector and convinces with its excellent price/performance ratio.
What our customers think
Pro
- Current/voltage limitation
- Clean output voltage.
- Just enough for what it is
4. Peaktech P 6226 Switched-mode power supply unit
This laboratory power supply offers an adjustable DC voltage output of 0 - 30 V or 0 - 10 A. The current and voltage settings are made via digital potentiometers, allowing both values to be adjusted even when the output sockets are turned off. By pressing the respective rotary knob for current or voltage, the setting resolution can be switched from 10 mA to 100 mA or from 10 mV to 1 V. To ensure safe measurements, there is a button on the front of the PeakTech 6226 that is used to control the output of the voltage. The display also indicates when the output is active. With the CV and CC functions, the voltages and currents can be set to constant values that do not change when a load is connected. These features make the PeakTech 6226 a remarkable companion for any hobbyist electronics enthusiast as well as for any specialist.
What our customers think
Pro
- Inexpensive, small, compact
- Precisely adjustable current / voltage
- bzzzzz electricity
5. Peaktech P 6220 Mini -switching power supply
The PeakTech 6220 is a compact and lightweight DC power supply that impresses with its high performance and excellent price-performance ratio. Thanks to the switching power supply technology used, it ensures high power output in a small size and low weight. The output voltage is continuously adjustable via a potentiometer on the front, while the current is limited to a maximum of 2 A. The 4 mm terminal blocks allow for easy connection of individual wires as well as 4 mm banana plugs. The power cable with a Euro plug is permanently attached to the device, and it is turned on and off using the power switch on the front. This handy power supply fits on any workbench and is versatile for use in hobbies, service work, or training.

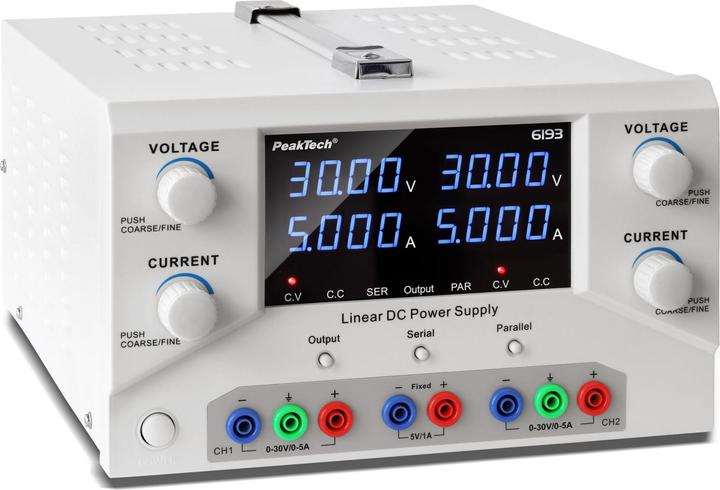

6. Peaktech Laboratory Power Supply with USB and Software
The PeakTech 6193 is a highly advanced dual-channel laboratory power supply that offers a precise and stable DC power source for demanding applications. With the ability to provide 0-30 V DC and up to 5 A of current per channel, this device is ideal for laboratories and technical applications that require a reliable power supply. The linear regulation and integrated isolation transformer ensure outstanding stability and minimize noise and voltage fluctuations, which is particularly important for sensitive electronic circuits. The user-friendly LED displays allow for clear monitoring of the current voltage and current values, while the ability to preset output values enables exact adjustments to specific requirements. The device can be configured for both series and parallel operation, providing additional flexibility in use. With a robust metal housing and a safety design, the PeakTech 6193 is suitable for use in safety-critical environments.
- Dual-channel power supply with 0-30 V and 0-5 A per channel
- Linear regulation for stable and low-noise output voltages
- LED displays for precise monitoring of current and voltage
- Presettable output values for exact adjustment to projects
- Configurable for series or parallel operation to adjust output power.

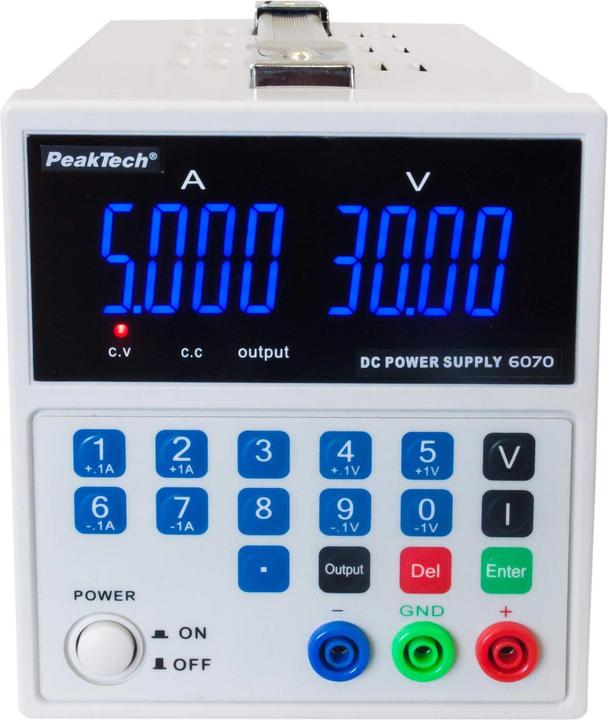

7. Peaktech Laboratory power supply 1 Kan....30 VDC 5 A (6070)
The laboratory power supply P 6070 allows for a wide range of applications in laboratories, workshops, and industry. A modern microprocessor controls the generation of current and voltage.
The ammeter features a 4-digit LED screen. The large digital display is resolved across the entire range with 1 mA and 10 mV, allowing for quick reading of the measured values.
The output values for current and voltage can be set via button input or adjusted in increments of 0.1 V / 0.1 A or 1 V / 1 A. Input via a rotary encoder is not required.
Thanks to the USB port for remote control and the PC software, this overload and short-circuit-proof device is versatile. It also includes additional passive cooling and 4 mm safety sockets.
Output voltage: 0 - 30 V DC; Output current: 0 - 5 A DC; Output power: 150 Watts. Included: power cable, software CD, USB cable, and user manual. Dimensions: 135 x 165 x 275 mm; Weight: 5.5 kg.

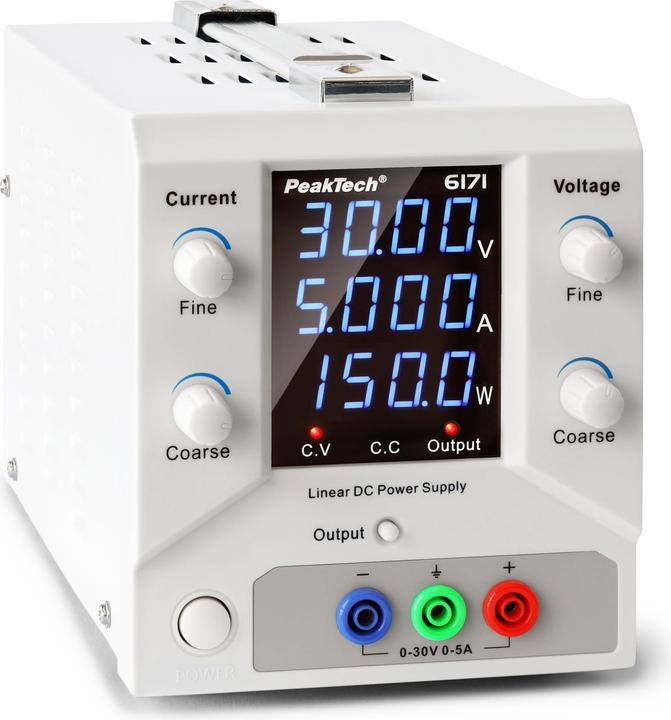

8. Peaktech Laboratory Power Supply
The PeakTech 6171 laboratory power supply is a high-precision power solution designed for a variety of applications in laboratories and technical environments. With an output voltage of 0-30 V DC and a maximum output current of 5 A DC, this device provides a reliable and stable energy source. The SELV classification (Safety Extra Low Voltage) and the integrated isolation transformer ensure safe usage, especially in sensitive applications where safety is of utmost importance. The linear regulated design guarantees noise-free and stable output voltages, while the clear LED display allows for precise monitoring of current, voltage, and power. The ability to preset voltage and current limits offers additional flexibility and adaptability to specific project requirements. With a robust metal housing and comprehensive safety features, the PeakTech 6171 is a trusted choice for professionals who need a reliable and safe power supply.
- SELV classification for enhanced safety
- Linear regulated output voltages for minimal interference
- High-resolution LED display for precise readings
- Presettable voltage and current limits
- Robust metal housing with comprehensive safety features.

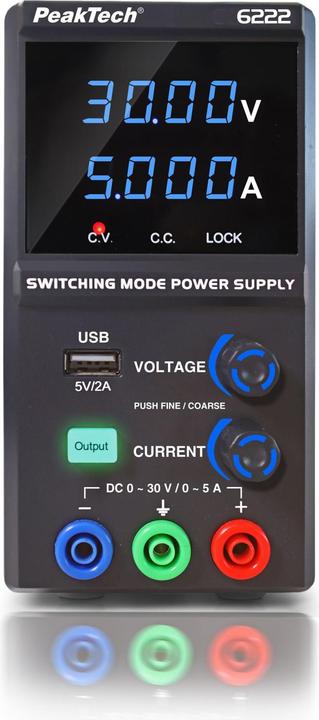

9. Peaktech P 6222 Schaltnetzteil
Our new, sleek laboratory power supply offers precisely adjustable output values of 30V and 5A with a continuous power output of 150W – ideal for use in laboratories, workshops, and development environments. The elegant black housing with a clearly readable blue LED display seamlessly integrates into any workspace. Thanks to the high resolution of 1mA and 10mV, you can make even fine adjustments to optimally power your devices. A special feature is the switchable output, which allows you to set the current and voltage in advance while the output is turned off. Additionally, the power supply is equipped with a convenient USB port (5V/2A) on the front, perfect for charging devices or powering consumers like development boards. The temperature-controlled fan ensures quiet operation and prevents overheating, even during prolonged use. This power supply combines reliable performance with thoughtful design and is the perfect choice for demanding users who value precision and comfort.

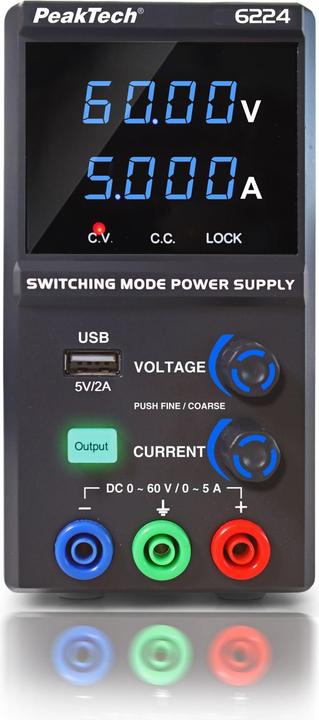

10. Peaktech Laboratory Power Supply
The PeakTech 6224 is a laboratory power supply designed for precise DC voltage and current regulation for electronic testing and development applications. This unit offers an adjustable DC output of up to 60 volts with a maximum current of 5 amperes, featuring a fine resolution of 1 milliampere for current and 10 millivolts for voltage settings. The continuously adjustable control allows for precise management across the entire output range, making it suitable for circuit testing, powering electronic components, and educational work in laboratories. It includes a USB port for additional connectivity options. Built with a focus on reliability, this laboratory power supply provides stable output characteristics that are essential for sensitive electronic measurements. The front panel displays clear digital readouts for voltage and current measurements, along with intuitive adjustment knobs. The unit operates with standard AC voltage input and includes protection features against overload and short circuits. With its precise regulation capabilities and robust construction, this power supply meets the demands of electronics workshops, educational institutions, and research facilities where accurate DC sources are required. The compact design measures approximately 28 cm in width, 10 cm in height, and 25 cm in depth, with a weight of about 3.5 kg. As a successor to previous laboratory power supply designs, it maintains the technical specifications expected from professional electronic testing equipment while integrating modern display and control elements.
