Best Omron Industrial Automation products in the Electronics supplies + Casing category

On this page you'll find a ranking of the best Omron Industrial Automation products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

1. Omron Industrial Automation Terminal Block, Screw, 2.5mm2

Series: XW5G
Wire size: 20 → 14 AWG (with ferrule), 26 → 12 AWG
Cable cross-section: 2.5 mm²
Color: Gray
Number of levels: Single
Connection type: Screw
Operating voltage: 600 V
Minimum operating temperature: -40 °C
Maximum operating temperature: +55 °C

DIN rail screw terminal – Series XW5T-S and XW5G-S. DIN rail grounding terminal blocks are a great space-saving solution for reducing the size of control panels, thanks to their compact design with a width of 3.5 mm. The terminal blocks of the XW5G series are easy to install, and the wires are held firmly and securely in place. Features and benefits: narrow width of 3.5 mm, wires are held with screws, low insertion force and high retention force for reduced wiring effort and high reliability, hands-free structure that holds a plugged-in screwdriver to facilitate wiring compared to fastening crimp terminal blocks. Available in 1- or 2-part models.

2. Omron Industrial Automation E3JKDR112MOMI

Diffuse reflection sensor, Type=E3JKDR112MOMI, Operating voltage, max.=240 VAC/VDC, Operating voltage, min.=24 VAC/VDC, Operating temperature, max.=55 °C, Operating temperature, min.=-25 °C, Width=18 mm, Detection range max.=2.5 m, height=50 mm, load current=3 A, length=50 mm, response time=20 ms, connection type=cable connection, 2 m, optical sensor output type=relay, light type=LED, red, switching type=light ON / dark ON, protection class=IP64, sensor type=reflective sensor, series=E3JK.

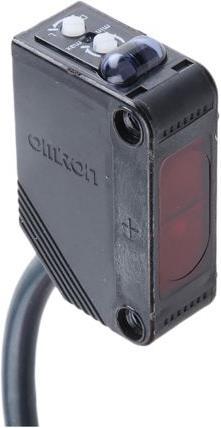

3. Omron Industrial Automation E3Z pre-wired diffuse sensor,PNP 100mm

Sensor type: Cubic
Operating mode: Diffuse
Detection range: 5 to 100 mm
Output type: PNP
Connection: Pre-wired cable
DC voltage max: 26.4V
Optical technology: Phototransistor
Light source: Infrared LED
Protection class: IP69K
Current max: 100 mA
Response time: 1 ms
Housing material: PBT
Operating temperature max: +55°C

Suitable reflector: Order number 171-3779 (3M series). Miniature high-performance sensors E3Z. Photoelectric sensors with transmitted beam (IR LED), reflective (visible red LED), and diffuse scattering (IR LED). PBT housing IP67 with methacrylate lens, PNP and NPN output configurations, ON at light or dark selectable. Small deadband range for detection of near targets. Retroreflective versions with polarized light source for detection of shiny objects. Short-circuit and reverse polarity protection. Protection against mutual interference (reflective and diffuse versions only). Operating temperature range: -25 to +55 °C.

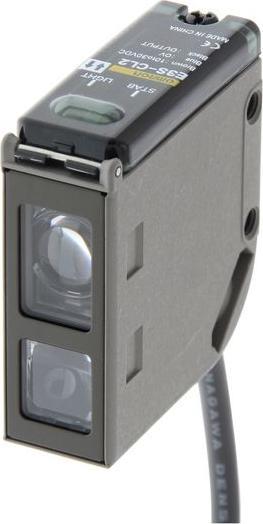

4. Omron Industrial Automation Reflexionslichttaster NPN / PNP 500mm 2ms 30V 100mA IP67 E3S-C
