Best selling Development board accessories from RAK Wireless

Here you’ll find the best Development board accessories from RAK Wireless. The ranking is based on the best-selling products from this brand within the category. In addition to sales volume, factors such as availability, pricing, and overall customer relevance also influence the order. For each product, we include a short description and the most important highlights from customer reviews, giving you a quick overview of the most popular RAK Wireless options. This page always stays fresh and updates automatically.

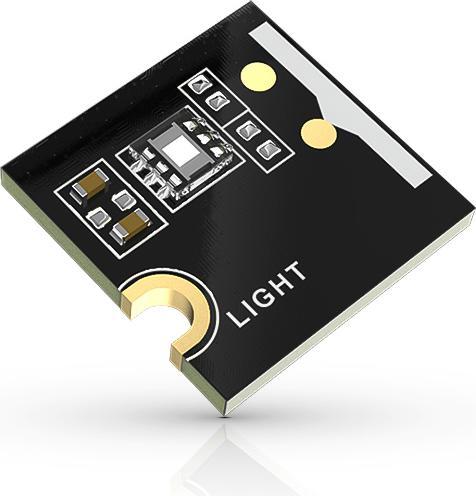

1. RAK Wireless WisBlock RAK1903 Ambient Light Sensor OPT3001

This is a WisBlock OPT3001 ambient light sensor module from RAK Wireless. The integrated TI OPT3001DNPR sensor measures light from 0.01 to 83,865 Lux. The RAK1903 is an ideal replacement for photodiodes, photoresistors, or other ambient light sensors with less adaptation to the visible spectrum and IR suppression. A ready-to-use software library is available to facilitate application development.

The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock Base Board. Unlike traditional connectors, the modules are secured to the Base Board with screws, providing a safe and reliable attachment with industrial quality. Thanks to its modular and compact design, WisBlock is particularly suitable for applications in professional or hobbyist prototyping.

Features:
TI OPT3001DNPR Ambient Light Sensor
Low power consumption of only 1.8 µA
Measurement range of 0.01 to 83,865 Lux
Optical filtering corresponding to the human eye

Technical Details:
Manufacturer: RAK Wireless
Manufacturer SKU: 100011
Model: RAK1903
Sensor: TI OPT3001DNPR
Measurement Range: 0.01 to 83,865 Lux
Voltage: 3.3 V
Power Consumption: 1.8 µA
Dimensions: 10 x 10 x 1.9 mm
Weight: 2.6 g

Package Includes:
1x WisBlock RAK1903 Ambient Light Sensor OPT3001.

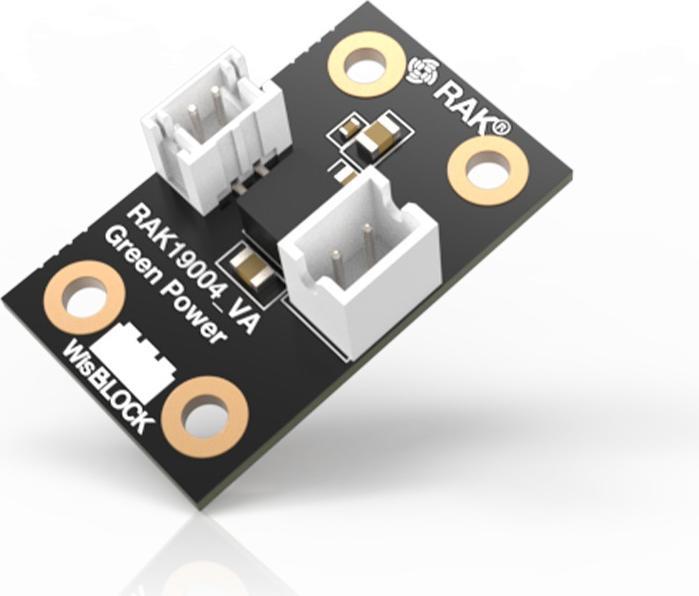

2. RAK Wireless WisBlock Green Power RAK19004 5V converter

This is a DC-DC Buck Converter module for WisBlock from RAK Wireless. The module converts voltages from renewable energy sources such as water, wind, and solar, ranging from 2V to 36V, into 5V. The 5V output from the RAK19004 is connected to the solar input of the base board using the included connection cable.

Note: The module does not have a WisBlock connector and cannot be directly mounted on a WisBlock base board. The RAK19004 is connected to the solar input of the base module using the included connection cable.

Features:
- Texas Instruments TPS55165-Q1
- 2V-36V Input
- 5V Output

Technical Details:
- Manufacturer: RAK Wireless
- Manufacturer SKU: 110049
- Model: RAK19004
- Input Voltage: 2V-36V
- Output Voltage: 5V
- Output Current: up to 1A
- Dimensions: 25 x 15 x 9.5mm
- Weight: 3.8g

Delivery Contents:
- 1x WisBlock Green Power RAK19004 5V Converter
- 1x 15cm cable from RAK19004 to WisBlock Base Solar connection.

3. RAK Wireless WisBlock RAK1901 Temperature and humidity sensor SHTC3

This is a WisBlock SHTC3 sensor module from RAK Wireless. The integrated Sensiron SHTC3 sensor measures temperatures from -40°C to 125°C with a tolerance of ±0.2°C and humidity from 0-100% with a tolerance of ±2.0%. A ready-to-use software library and tutorial facilitate the setup of a system for capturing temperature and humidity data.

The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock Base Board. Unlike traditional connectors, the modules are secured to the base board with screws. This provides a safe and reliable attachment with industrial quality. Due to its modular and compact design, WisBlock is particularly suitable for applications in professional or hobby prototyping.

Features:
Sensiron SHTC3 temperature and humidity sensor
Low power consumption
Temperature measurement range from -40°C to 125°C
Temperature tolerance of ±0.2°C
Humidity tolerance: ±2.0% RH
Humidity measurement range from 0-100%

Technical details:
Manufacturer: RAK Wireless
Manufacturer SKU: 100001
Model: RAK1901
Sensor: Sensiron SHTC3
Temperature measurement range: -40°C to 125°C
Temperature tolerance: ±0.2°C
Humidity measurement range: 0-100% RH
Humidity tolerance: ±2.0% RH
Dimensions: 10 x 10 x 2.5 mm
Weight: 2.5 g

Included:
1x WisBlock RAK1901 temperature and humidity sensor.

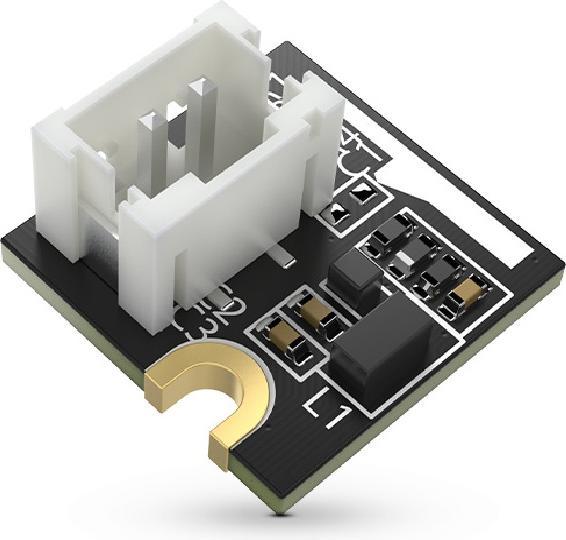

4. RAK Wireless WisBlock Boost RAK19002 3.3V to 12V step-up converter

This is a Step-Up Boost Module for WisBlock by RAK Wireless. The module can supply up to 12V/50mA and is mounted on the sensor slot of a WisBlock Base Board. The output voltage of the module is controlled via the WisBlock Core IO pin.

The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock Base Board. Unlike traditional connectors, the modules are secured to the Base Board with screws. This provides a secure and reliable attachment with industrial quality. Due to its modular and compact design, WisBlock is particularly suitable for applications in professional or hobby prototyping.

Features:
TPS61046 Step-Up Boost Converter
Up to 85% efficiency
On/Off controllable via I/O

Technical Details:
Manufacturer: RAK Wireless
Manufacturer SKU: 100018
Model: RAK19002
Input Voltage: 3.3V
Output Voltage: 12V
Output Current: 50mA
Efficiency: 85%
Dimensions: 10 x 10 x 7mm
Weight: 2.8g

Package Contents:
1x WisBlock Boost RAK19002.

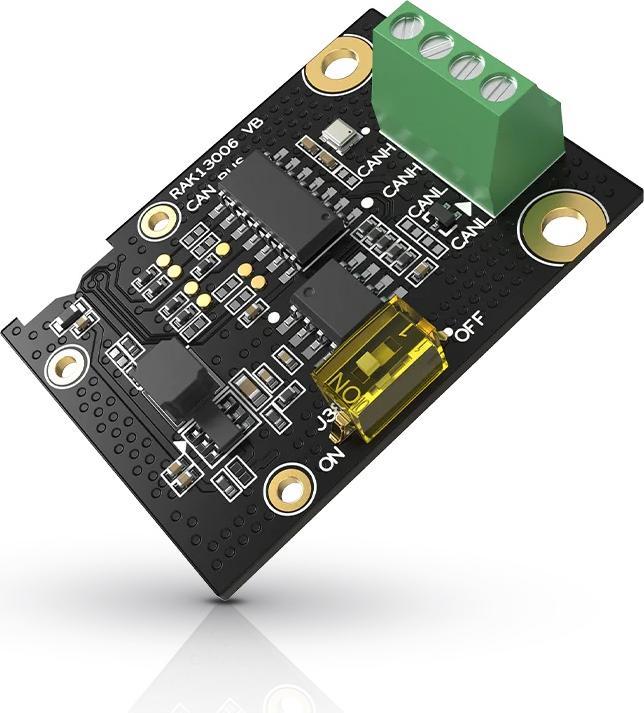

5. RAK Wireless WisBlock RAK13006 CAN Bus Interface MCP2518FD

This is a WisBlock CAN Bus expansion module from RAK Wireless. The RAK13006 with the MCP2518FD microchip enhances your WisBlock project with a CAN (Controller Area Network) interface. It is used in cars, trucks, and building automation, providing secure data transmission as it utilizes differential signals. The RAK13006 supports high-speed CAN up to 1 Mbit/s. The module connects to the 40-pin IO slot of a RAK BaseBoard. The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT-LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock Base Board. Unlike traditional connectors, the modules are secured to the Base Board with screws, ensuring a safe and reliable attachment with industrial quality. Thanks to its modular and compact design, WisBlock is particularly suitable for applications in professional or hobby prototyping.

Features:
CAN Bus Interface
Based on MCP2518FD and ATA6563
Complies with ISO11898-2:2016 and SAEJ2962-2
Configurable termination resistor on the CANH and CANL lines via a slide switch
SPI BUS communication

Technical Details:
Manufacturer: RAK Wireless
Model: RAK13006
Manufacturer SKU: 100099
Voltage: 3.3V
Chip: MCP2518FD, ATA6563
Connection: 4-pin screw terminal
Data rate: 1Mbit/s
Operating temperature: -40°C – 85°C
Dimensions: 25 x 35 x 12.5mm
Weight: 5g

Delivery includes:
1x WisBlock RAK13006 CAN Bus Interface MCP2518FD.

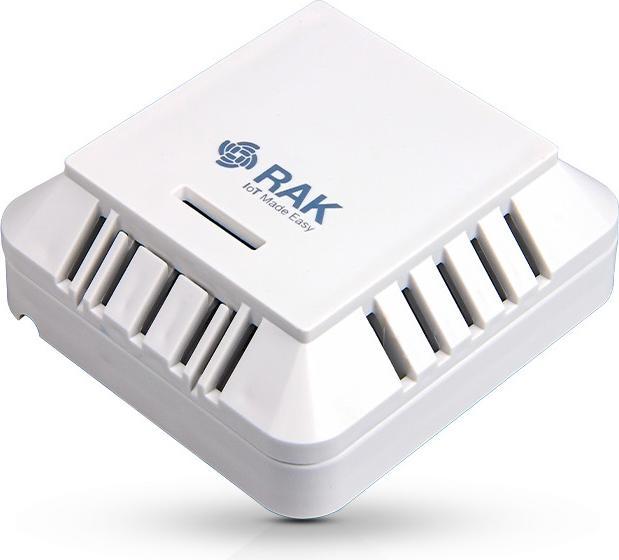

6. RAK Wireless RAKBox-B3 IP20 Indoor Enclosure

This is a plastic indoor enclosure from RAK Wireless. This enclosure is perfect for your WisBlock project. It features a mount where you can attach a RAK5005-O base board with sensors and expansion modules. The RAKBox-B3 is suitable for indoor applications, protecting your WisBlock project from curious little fingers.

The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock base board. Unlike traditional connectors, the modules are secured to the base board with screws. This provides a secure and reliable fastening with industrial quality. Due to its modular and compact design, WisBlock is particularly well-suited for prototyping applications in both professional and hobbyist settings.

Technical details:
Manufacturer: RAK Wireless
Manufacturer SKU: 910012
Model: RAKBox-B3
IP Rating: IP20
Wall thickness: 3mm
Dimensions: 90 x 85 x 34mm
Weight: 100g

Package contents:
1x RAKBox-B3 IP20 indoor enclosure
1x internal mounting plate
1x screw set for assembly
1x screw material for wall mounting including dowels.

7. RAK Wireless WisBlock RAK12013 Radar Sensor Module

This is a WisBlock Radar Sensor Module from RAK Wireless. The RAK12013 is a motion detector based on radar technology. The sensor detects movements at a distance of 5 to 7 meters. The module is mounted on the interface slot of a RAK5005-O base board. It cannot be mounted on a 20-pin sensor slot but requires the 40-pin interface slot. The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock base board. Unlike traditional connectors, the modules are secured to the base board with screws, providing a safe and reliable industrial-grade attachment. Thanks to its modular and compact design, WisBlock is particularly suitable for prototyping applications in both professional and hobbyist settings.

Features:
- Motion detector based on radar
- Range of 5 to 7 m
- Frequency of 3.2 GHz
- 360° measurement angle

Technical Details:
- Manufacturer: RAK Wireless
- Manufacturer SKU: 100067
- Model: RAK12013
- Voltage: 3.3 V
- Range: 5 to 7 m
- Measurement angle: 360°
- Frequency: 3.2 GHz
- Dimensions: 35 x 25 x 3 mm
- Weight: 4.5 g

Package Includes:
1x WisBlock RAK12013 Radar Sensor Module.

8. RAK Wireless WisBlock RAK1904 3-axis acceleration sensor LIS3DH

This is a WisBlock LIS3DH accelerometer module from RAK Wireless. The built-in ST LIS3DH measures acceleration values in 3-axis of up to ±16g. The measuring range can be adjusted to the following ranges: ±2g, ±4g, ±8g or ±16g. The data acquisition rate can be set from 1Hz to 5.3kHz depending on the application. A ready-to-use SW library is available to make your application easy.
RAK Wireless' WisBlock ecosystem offers compact and modular solutions to create your own IoT LoRaWAN nodes. A wide range of CPU, sensor and IO expansion modules can be mounted on a WisBlock base board. Unlike conventional plug-in connections, the modules are fixed to the base board with screws. This creates a secure and reliable mounting with industrial quality. Thanks to the modular and compact design, WisBlock is particularly suitable for applications in prototype construction in the professional or hobby sector.

Features:
ST LIS3DH Triaxial Accelerometer
Low power consumption
Adjustable measurement range of ±2g, ±4g, ±8g or ±16g
Adjustable data acquisition rate from 1Hz to 5.3kHz
Internal buffer for 32 levels of 16-bit data

Technical details:
Manufacturer: RAK Wireless
Manufacturer SKU: 100013
Model: RAK1904
Sensor: ST LIS3DH
Measuring range: ±2g, ±4g, ±8g or ±16g
Data acquisition rate: 1Hz to 5.3kHz
Dimension: 10 x 10 x 2.7mm
Weight: 2.6g

Scope of delivery:
1x WisBlock RAK1904 3-axis accelerometer LIS3DH.

9. RAK Wireless WisBlock RAK12005 Rain Sensor

This is a WisBlock rain sensor module from RAK Wireless. The RAK12005 module is mounted on a WisBlock Base Board and then connected to the external rain sensor via a PH2.0 cable. The RAK12030 is a sensor for detecting water and other electrically conductive liquids. When the detection area is wet, the output of the MCP606 CMOS operational amplifier from Microchip becomes positive, signaling the presence of liquid.

The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock Base Board. Unlike traditional connectors, the modules are secured to the Base Board with screws, providing a safe and reliable attachment with industrial quality. Thanks to its modular and compact design, WisBlock is particularly suitable for applications in professional or hobby prototyping.

Note: Although the RAK12005 is primarily a sensor module, it cannot be mounted on a sensor slot of the Base Board but only on the I/O expansion slot of the RAK5005-O.

Features:
- Digital output
- Configurable detection threshold via trimmer
- Separate sensor connected to the WisBlock board via cable.

Technical Details:
- Manufacturer: RAK Wireless
- Manufacturer SKU: 110033
- Model: RAK12005/12030
- Sensor: MCP606
- Voltage: 3.3V
- Dimensions: 15 x 25 x 6.2mm / 25 x 35 x 7.2mm
- Weight: 9.5g

Included in the package:
1x RAK12005
1x RAK12030
1x PH2.0 cable 10cm.

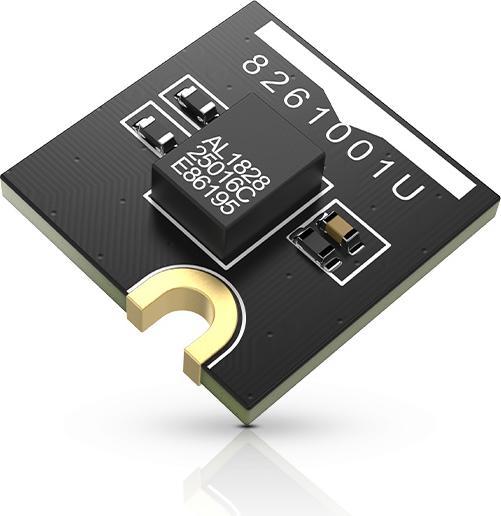

10. RAK Wireless WisBlock RAK15001 Flash Memory Module

This is a WisBlock NOR Flash memory module from RAK Wireless. The RAK15001 is a GD25Q16CNIG SPI Flash memory with a capacity of 16 MBit (2 MByte). With this memory, you can store larger files such as images or spreadsheets in your WisBlock project. The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock Base Board. Unlike traditional connectors, the modules are secured to the Base Board with screws, providing a safe and reliable attachment with industrial quality. Thanks to its modular and compact design, WisBlock is particularly suitable for applications in professional or hobby prototyping.

Technical Details:
Manufacturer: RAK Wireless
Manufacturer SKU: 100022
Model: RAK15001
Voltage: 3.3V
Interface: SPI
Operating Temperature: -40°C – 85°C
Dimensions: 10 x 10 x 2mm
Weight: 2.5g

Package Contents:
1x WisBlock RAK15001 Flash memory module.
