RAK Wireless WisBlock RAK12005 Rain Sensor

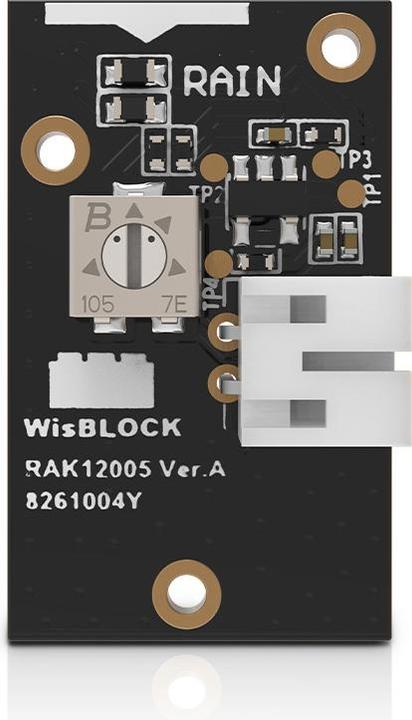

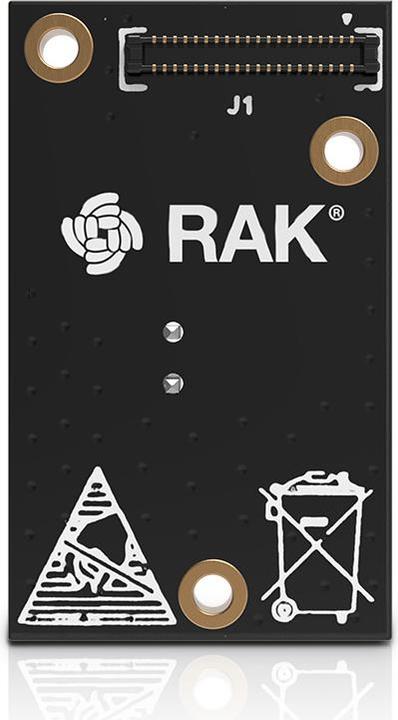

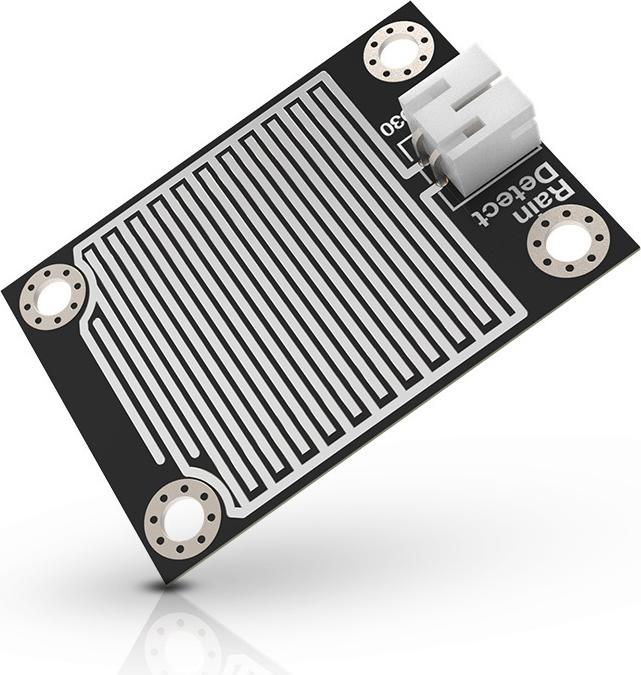

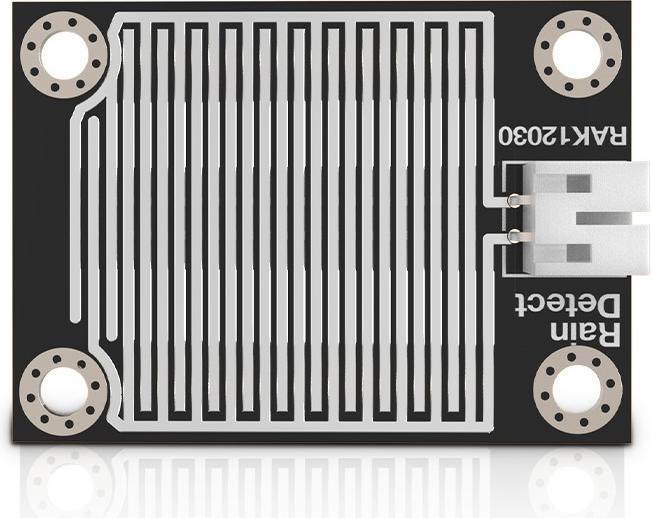

This is a WisBlock rain sensor module from RAK Wireless. The RAK12005 module is mounted on a WisBlock Base Board and then connected to the external rain sensor via a PH2.0 cable. The RAK12030 is a sensor for detecting water and other electrically conductive liquids. When the detection area is wet, the output of the MCP606 CMOS operational amplifier from Microchip becomes positive, signaling the presence of liquid.

The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock Base Board. Unlike traditional connectors, the modules are secured to the Base Board with screws, providing a safe and reliable attachment with industrial quality. Thanks to its modular and compact design, WisBlock is particularly suitable for applications in professional or hobby prototyping.

Note: Although the RAK12005 is primarily a sensor module, it cannot be mounted on a sensor slot of the Base Board but only on the I/O expansion slot of the RAK5005-O.

Features:

• Digital output
• Configurable detection threshold via trimmer
• Separate sensor connected to the WisBlock board via cable.

Technical Details:

• Manufacturer: RAK Wireless
• Manufacturer SKU: 110033
• Model: RAK12005/12030
• Sensor: MCP606
• Voltage: 3.3V
• Dimensions: 15 x 25 x 6.2mm / 25 x 35 x 7.2mm
• Weight: 9.5g

Included in the package:
1x RAK12005
1x RAK12030
1x PH2.0 cable 10cm.
