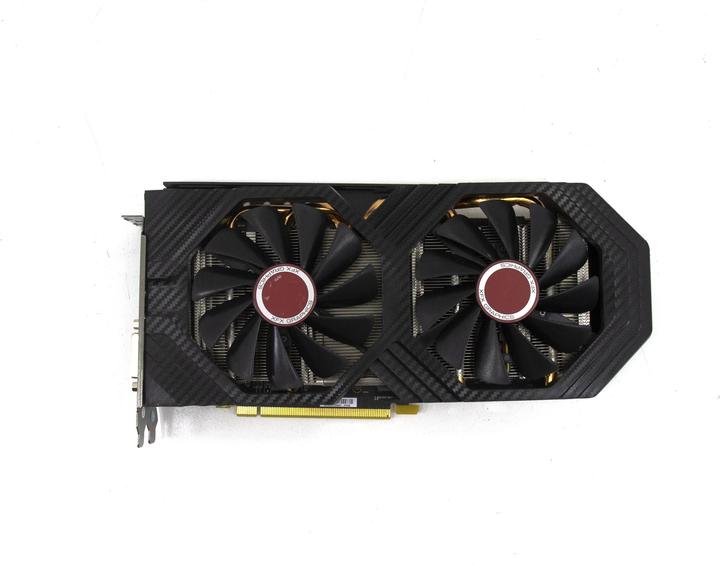

XFX Radeon RX 580 GTS XXX Edition

8 GB
Currently out of stock

Product details

With the Radeon RX 580 graphics cards, you get future-proof technologies, optimized gaming performance, and game-changing control. The XFX graphics cards from the Radeon RX 580 series feature the Polaris architecture with fourth-generation GCN graphics cores, a display engine, multimedia cores, and the revolutionary Next FinFET 14 process technology for enhanced performance and efficiency. XFX knows that enthusiasts love flexible options. The RX580 graphics cards come with a Dual BIOS. If you want optimal gaming performance, just install them and you're good to go. For cryptocurrency mining, simply shut down the system and flip the BIOS switch on the card. The mining BIOS is already tuned to enable increased mining hash rates without any issues. Software-controlled clock rates can be affected by overall computer performance. However, XFX's True Clock is a hardware-controlled optimization of clock speed, ensuring that your card always runs at an optimized performance level. While True Clock operates at a hardware level with a super-fast optimal speed, RX cards with an OC+ rating are factory tested to exceed even XFX's True Clock. XFX recommends trying out these factory-tested speeds using the easy-to-use AMD Wattman utility, which allows you to extract every bit of performance from your card.

Key specifications

Length
27 cm
Number of shaders
2304 x
Graphics card model
Radeon RX 580
Video memory clock
8 GHz
Max. connected monitors
5 x
Max. Video resolution
4096 x 2160 pixels
Power consumption
185 W
Item number
6413013

General information

Manufacturer
XFX
Category
Graphics card
Manufacturer no.
RX580P8DFD6
Release date
31.7.2017
External links

Graphics card properties

Max. connected monitors
5 x
PCI Express version
PCIe 3.0
Max. Video resolution
4096 x 2160 pixels
Expansion card form factor
2 slots
LED colour
without LED

Graphics processing unit

Graphics chip (GPU)
AMD Radeon
Graphics card model
Radeon RX 580
Clock frequency
1366 MHz
Boost frequency
1386 MHz
Number of shaders
2304 x

Video memory

Video memory type
GDDR5
Storage capacity
8 GB
Video memory clock
8 GHz
Memory Interface
256 bits
Memory Bandwidth
259 GB/s

Cooling properties

Graphics card cooling system
Active cooler
Number of fans
2 x

Graphics card technologies

DirectX version
12
OpenGL version
4.50
Multi-GPU technology
AMD CrossfireX

Connections

Video connections
DisplayPort (3x)DVI-D (Dual Link) (1x)HDMI (1x)
HDMI version
2.0
DisplayPort version
1.4

Power supply

Power consumption
185 W
Min. recommended system performance
500 W
Power connectors
8-pin PCI-E

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
27 cm
Width
4 cm
Height
12.40 cm

Package dimensions

Length
34 cm
Width
24 cm
Height
8 cm
Weight
1.26 kg
