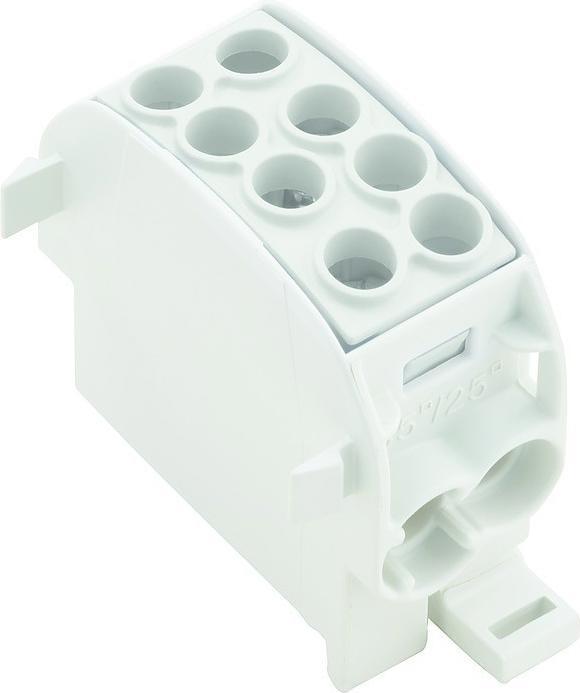

Weidmüller WPD 102 2X35/2X25 Gy

Weidmüller Main Distribution Terminal WPD 102 2X35/2X25 GY

Manufacturer: Weidmüller
Designation: Main Distribution Terminal W-Series, TS 35
Type: WPD 102 2X35/2X25 GY
Rated Current In: 202 A
Rated Voltage: 1000 V
Electrical Connection Type 1: Screw connection
Number of Levels: 1
Number of Terminal Points per Level: 2
Mounting Type: DIN Rail TH35
Material of Insulating Body: Thermoplastic
Operating Temperature: -50..130 °C
Flammability Class of Insulating Material according to UL 94: V0
Width: 22.2 mm
Height: 55.4 mm
Depth: 49.3 mm
End Plate Required: No
Color: Gray
Internally Bridged Levels: Yes

Weidmüller Main Distribution Terminal WPD 102 2X35/2X25 GY: additional details Terminal block for potential distribution with high contact density. EAN: 4050118366686.
