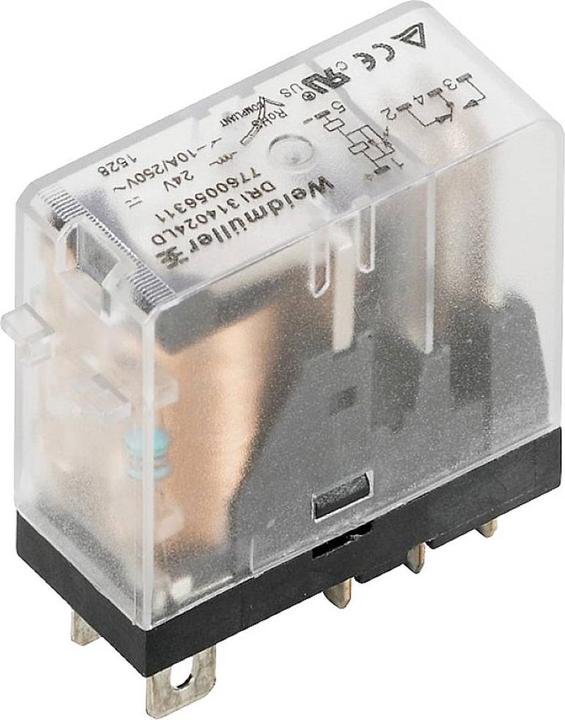

Weidmüller Switching relay 1W IP20 13x31x28mm 7760056312

Ratings
BrandMore from Weidmüller
Delivered between 14.1.2026 and 21.1.2026
5 pieces in stock at third-party supplier
Supplied by
Conrad CH
free shipping

Electric current output3

input voltage3

Product details

The Weidmüller switching relay is a compact and versatile device designed for switching, amplifying, and multiplying digital signals at low electrical loads. Its small form factor makes it ideal for applications where space is limited. The relay supports both AC and DC and offers a maximum switching capacity of 2500 volt-amperes. It is suitable for use in industrial environments and ensures reliable performance over numerous switching cycles. The robust construction and precise workmanship make this relay a dependable choice for various control and automation applications.

  • Compact design for space-saving applications
  • Suitable for AC/DC output current types
  • Maximum switching capacity of 2500 VA
  • High reliability with up to 10 switching cycles.

Key specifications

Scope of delivery
Fixing material, Relays
Output current type
AC/DC
Relay type
Switching relay
Electric current output
10 A
Output voltage
250 V
input voltage
48 V
Item number
32349655

General information

Manufacturer
Weidmüller
Category
Relays
Manufacturer no.
7760056312
Release date
6.12.2022

Relay properties

Relay type
Switching relay
input voltage
48 V
Output voltage
250 V
Electric current output
10 A
Output current type
AC/DC
Resistor
4300 Ω
Switching function
Changer
Max. Switching capacity
2.50 kW

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Fixing material, Relays

Product dimensions

Length
28 mm
Width
13 mm
Height
31 mm
Weight
18.26 g
