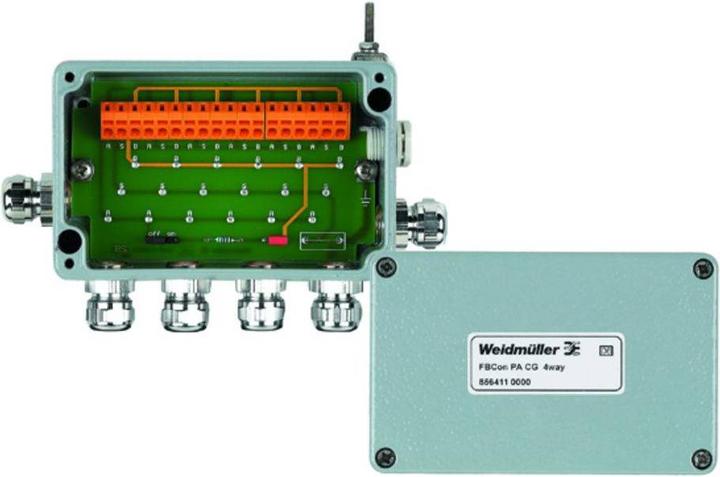

Weidmüller Standard distributor FBCON PA CG

Standard distributor. 4-fold distributor, IP 66. The FBCon fieldbus distributors are available in industrial and EEx (ia) versions. They are used to couple 1 - 8 field devices or sensors. The connection is made via spur lines. The stub line can be connected either as an M12 plug-in connection or directly via an EMC cable gland. The communication and the device supply is carried out via a common 2-wire cable. Depending on the version, the distributors offer the following features: Tension clamp connection technology. With overvoltage protection for the main line. With current limitation (limiter) for each spur line. EMC cable gland. M12 connector. External ground connection. Uninterruptible bus operation . Industrial version. Bus termination integrated (Not EX). EX version ATEX. Pressure compensation element, protection classes IP65, IP66, IP67. Stainless steel version, PROFIBUS-PA compatible.
