Product details

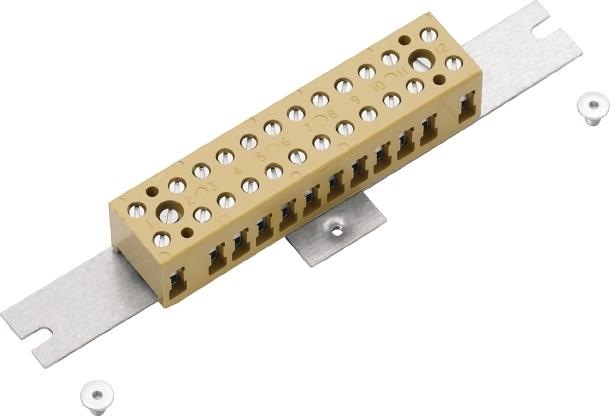

Weidmüller Other terminals MOPL SET BK12 S Manufacturer :Weidmüller Designation :Other terminals general Type :MOPL SET BK12 S Drill hole spacing centre :146 mm Explosion-tested version "Ex e" :yes Connectable conductor cross-section fine-stranded without ferrule :0,5..4 mm² Connectable fine-stranded conductor cross-section with ferrule :0.5..4 mm² Connectable solid conductor cross-section :0.5..4 mm² Connectable stranded conductor cross-section :1.5...4 mm² Rated current In :32 A Rated voltage :400 V Electrical connection version 1 :Screw connection Number of poles :12 Number of clamping points per pole :2 Mounting type :Direct mounting Material of the insulating body :None Operating temperature :-60...130 °C Flammability class of the insulating material according to UL 94 :V0 Width :155 mm Height :92 mm Depth :20 mm End plate required :no Colour :yellow Transparent :no Weidmüller miscellaneous terminals MOPL SET BK12 S: further details Terminal strip for direct screw mounting on the enclosure base. , EAN: 4032248975532.
