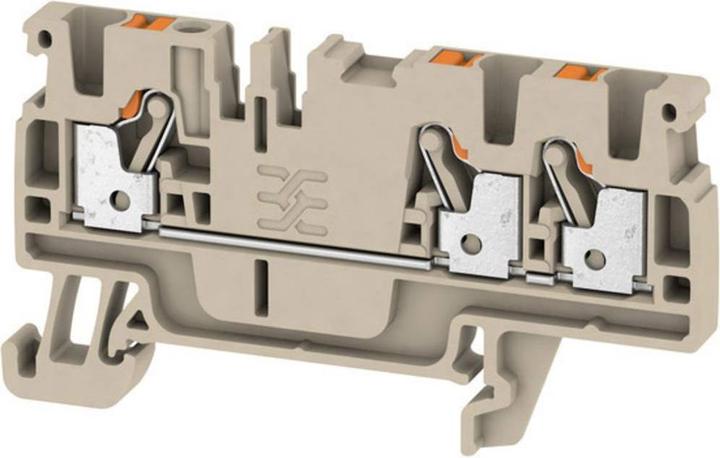

Weidmüller Feed-through terminal

Weidmüller Terminal Block A3C 2.5

Manufacturer: Weidmüller
Description: Terminal block 0.14-2.5 mm², beige
Type: A3C 2.5

Connectable conductor cross-section fine-stranded without ferrule: 0.5..4 mm²
Connectable conductor cross-section fine-stranded with ferrule: 0.5..4 mm²
Connectable conductor cross-section solid: 0.5..2.5 mm²
Connectable conductor cross-section multi-stranded: 0.5..4 mm²

Rated current In: 24 A
Rated voltage: 800 V
Electrical connection type 1: Plug connection
Electrical connection type 2: Plug connection
Number of levels: 1
Number of connection points per level: 3
Suitable for conductor material: Copper
Mounting type: DIN rail TH35
Material of insulating body: Thermoplastic
Operating temperature: -60..130 °C
Flammability class of insulating material according to UL 94: V0

Width: 5.1 mm
Height: 66.5 mm
Depth: 36.5 mm
Explosion-proof version "Ex e": yes
End plate required: yes
Color: beige
Internally bridged levels: no

Weidmüller Terminal Block A3C 2.5: additional details
Rail-mounted terminal for connecting or linking conductors with permanently secure contact. Hardened steel withstands mechanical forces, while tin-plated copper ensures optimal conductivity.
EAN: 4050118328066.
