Weidmüller Connector insert

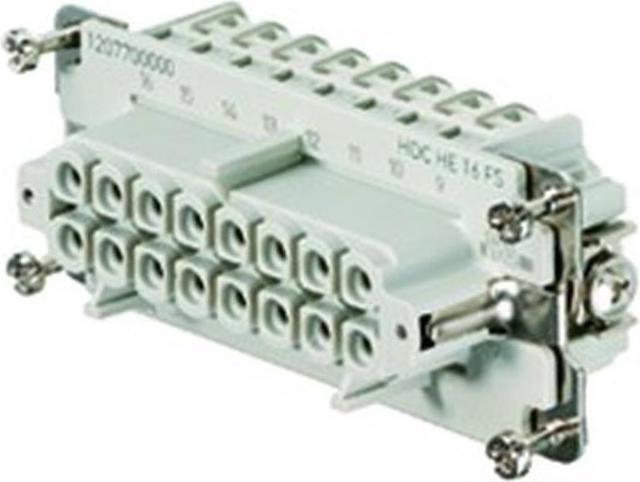

Weidmüller connector insert HDC HE 16 FS

Manufacturer: Weidmüller
Designation: Connector insert
Type: HDC HE 16 FS
Contact insert without contacts: No
Contact design: Socket
Number of poles: 16
Material of connector insert: Thermoplastic
Rated current In: 16 A
Rated voltage: 500 V
Rated impulse voltage: 6 kV
Degree of pollution: 3
Electrical connection type: Screw connection
With wire protection: Yes
Connectable conductor cross-section flexible without ferrule: 0.5 to 2.5 mm²
Connectable fine-stranded conductor cross-section with wire end ferrule: 0.5 to 2.5 mm²
Connectable conductor cross-section solid: 0.5 to 2.5 mm²
Connectable conductor cross-section stranded: 0.5 to 2.5 mm²
Material of contact coating: Silver
Material of contact insert: Thermoplastic
Material of contact: Other copper alloys
Flammability class of insulating material according to UL 94: V0
With protective conductor: Yes
Width: 34 mm
Height: 35.2 mm
Depth: 84.5 mm

Weidmüller connector insert HDC HE 16 FS: Further details
Insert for industrial connectors, consisting of contact element and insulating body.
EAN: 4008190136383.
