Weidmüller 2562940000 - PCB Connectors - Stainless steel - Stainless steel - Cat5e - U/UTP (UTP) - Gold

Ratings
BrandMore from Weidmüller
Delivered between 20.1.2026 and 4.2.2026
More than 10 pieces in stock at supplier
free shipping

Product details

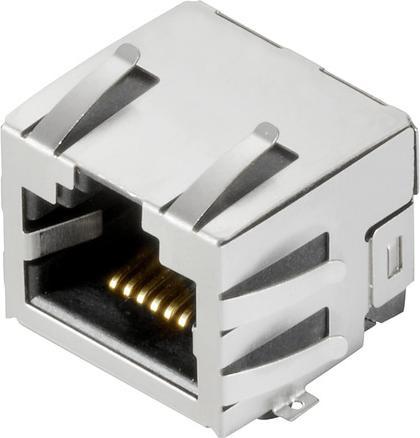

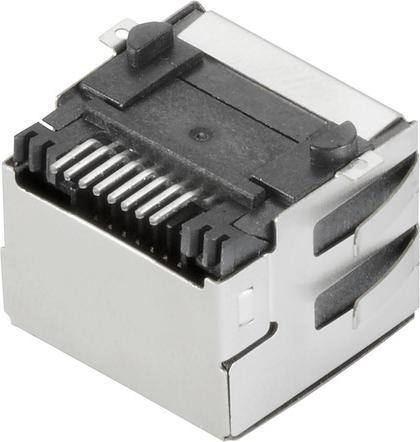

The Weidmüller 2562940000 PCB Connector is a high-quality printed circuit board connector specifically designed for use in Cat5e network applications. This connector provides a reliable connection with an SMD soldering interface and features a compact 90° design. Made from stainless steel, it ensures high resistance and durability. With a pin count of 8 and a special locking option on the top, this connector is ideal for various electronic applications. The shield tabs with 6 tabs enhance signal transmission and reduce interference. The connector is suitable for temperatures ranging from -40 °C to 85 °C, making it versatile for different uses. It is supplied in a convenient packaging unit of 200 pieces, making it a cost-effective choice for high-demand projects.

  • SMD soldering interface for easy assembly
  • 90° design for space-saving applications
  • Made from corrosion-resistant stainless steel
  • Shield tabs with 6 tabs to improve signal quality
  • Temperature range from -40 °C to 85 °C for versatile applications.

Key specifications

Cable + connector type
Male
Item number
25271875

General information

Manufacturer
Weidmüller
Category
Cables + Plugs
Manufacturer no.
2562940000
Release date
12.10.2022

Colour

Colour
Silver

Material

Material group
Metal
Material
Stainless steel

Cable + Connector Features

Cable + connector type
Male
Max. temperature
85 °C
Min. temperature
-40 °C

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
200 piece

Product dimensions

Length
1.57 cm
Width
1.88 cm
Height
1.47 cm
