Product details

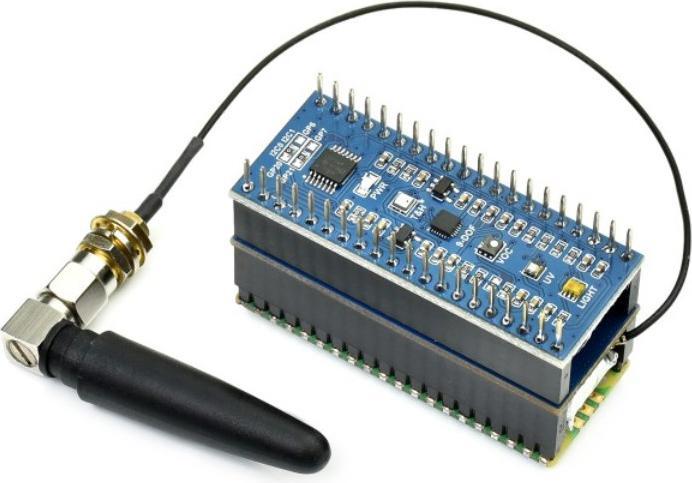

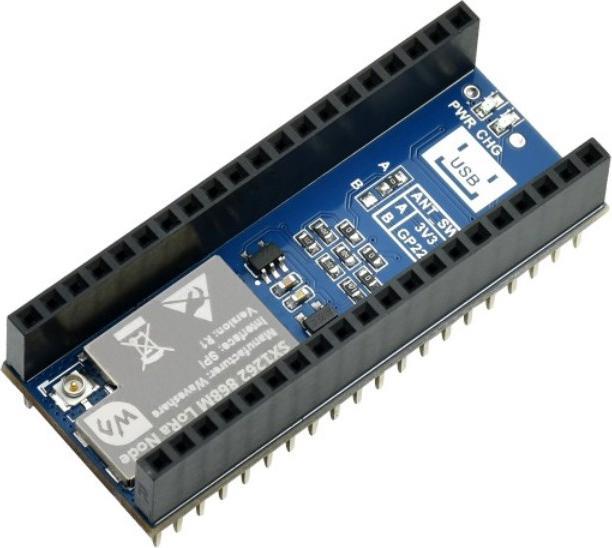

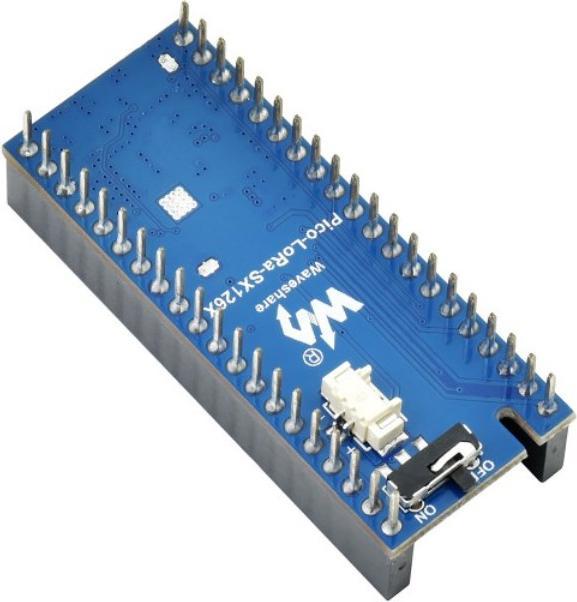

This is a LoRa Node module from Waveshare for the Raspberry Pi Pico. The SX1262 chip from Semtech allows you to build a compact LoRa Node with your Raspberry Pi Pico. The module comes with a 600mAh Li-po battery to make your LoRa Node portable. The LoRa antenna connects to the module via an IPEX1 connector.

Features:

  • Standard Raspberry Pi Pico header, compatible with all Raspberry Pi Pico boards
  • LoRaWAN EU868MHz
  • PH1.25 battery
  • 2x status LEDs
  • Programming examples and instructions (example in C)

Technical Details:

  • Manufacturer: Waveshare
  • Manufacturer SKU: 20682
  • Chip: Semtech SX1262
  • Frequency: 868MHz
  • Voltage: 3.3V
  • Power Consumption: 45mA@14dBm (transmitting), 5.3mA@125KHz (receiving)
  • Communication Bus: SPI
  • Operating Temperature: -40°C to 85°C
  • Dimensions: 52 x 21 x 15mm
  • Weight: 54g

Package Contents:

  • 1x Pico LoRa Node module for Raspberry Pi Pico SX1262
  • 1x 3.7V 600mAh Li-po battery
  • 1x 2dB 868MHz antenna
  • 1x IPEX1 to SMA cable.

Key specifications

Development board type
Kit
Item number
25041048

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Manufacturer no.
Pico-LoRa-SX1262-868M
Release date
5.4.2023

Development board properties

Development board type
Kit

Power supply

Power supply
Battery operated
Operating voltage
18.18 V

Wireless transmission

Wireless transmission
Radio Frequency (RF)

Connections

Additional connections
SPI

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2dB 868MHz antenna, 3.7V 600mAh Li-po battery, IPEX29 to SMA cable, Pico LoRa Node Module for Raspberry Pi Pico SX26262

Product dimensions

Length
21 mm
Width
22 mm
Height
15 mm
Weight
23 g
