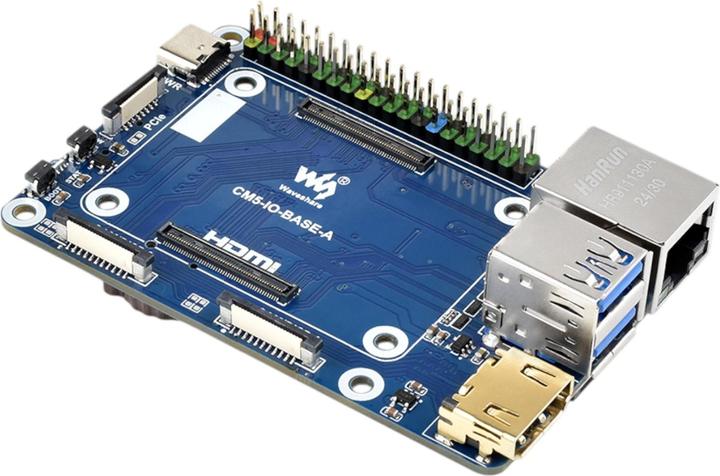

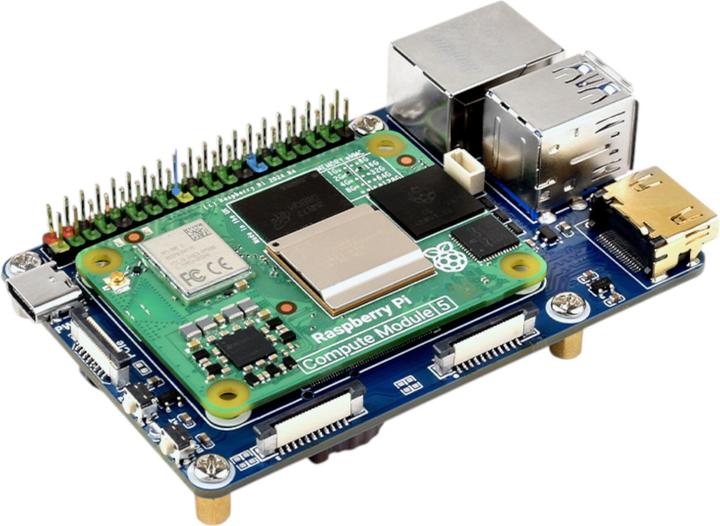

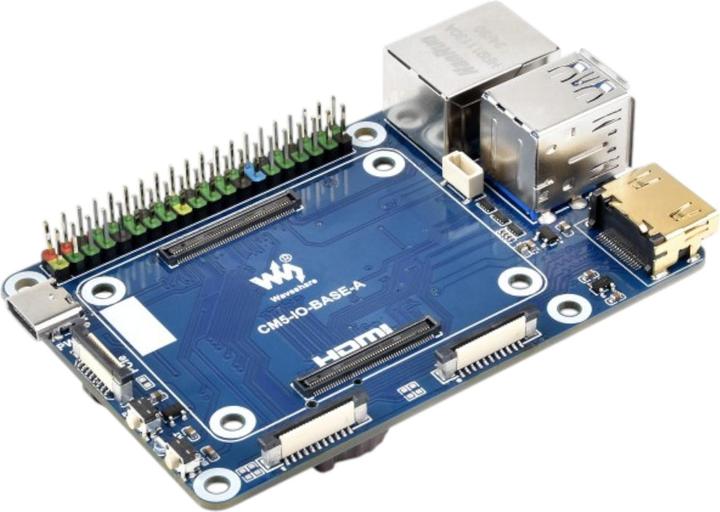

WaveShare Mini Base Board (A) für Raspberry Pi Compute Module 5

With the Raspberry Pi Compute Module 5 Base Board, you get a powerful and flexible foundation to make the most of your CM5 module. The base ensures that all important connections such as HDMI, USB, Ethernet, and GPIO are easily accessible. Whether you're developing a prototype, starting your own smart home project, or implementing industrial applications, this board provides the perfect base. Additionally, the integrated PCIe interface allows for even more flexibility in building your systems. The Base Board is specifically designed to unleash the full potential of the CM5. With standardized connections, you can access a wide range of compatible modules and accessories. The power supply and heat dissipation are also optimally addressed. Its compact design makes the board an ideal choice for many different projects. Whether at home, in the lab, or in an industrial environment – you are well-equipped with this board.

Recommended Accessories:
Raspberry Pi Compute Module
Raspberry Pi Compute Module 5 3007 Fan 5V

Technical Specifications:
Manufacturer: Waveshare
Manufacturer SKU: 30489
Supported Modules: Raspberry Pi Compute Module 5
Display Outputs: 2x HDMI (1x connector, 1x flat cable)
USB Ports: 2x USB 3.2 Gen1
Network: Gigabit Ethernet
Storage Expansion: Micro-SD card slot
Expansion: PCIe slot available
Power Supply: 5V via USB-C
Additional Features: Real Time Clock (RTC) support

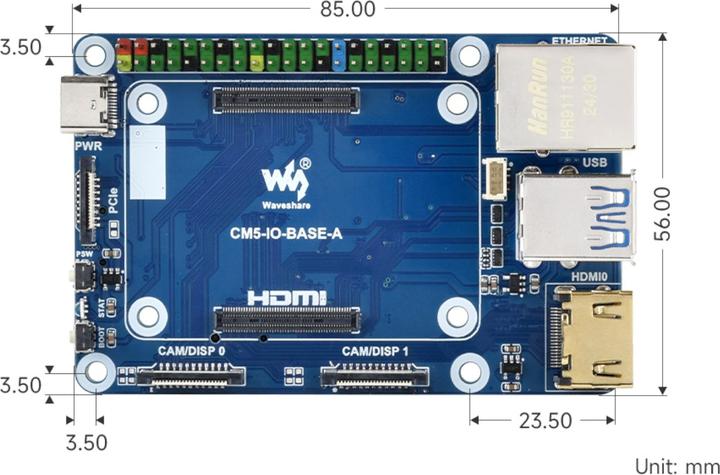

Dimensions: 88 x 67 x 20mm
Weight: 56g

Delivery Contents:
1x Mini Base Board (A) for Raspberry Pi Compute Module 5 (Raspberry Pi CM module not included)
1x Screw Set.
