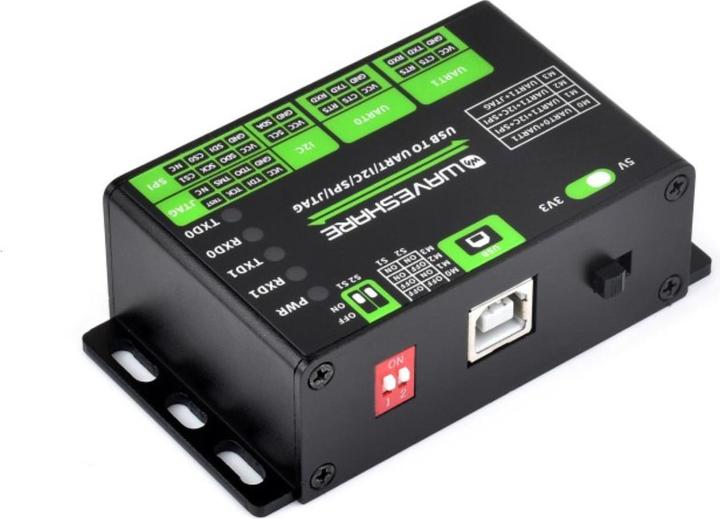

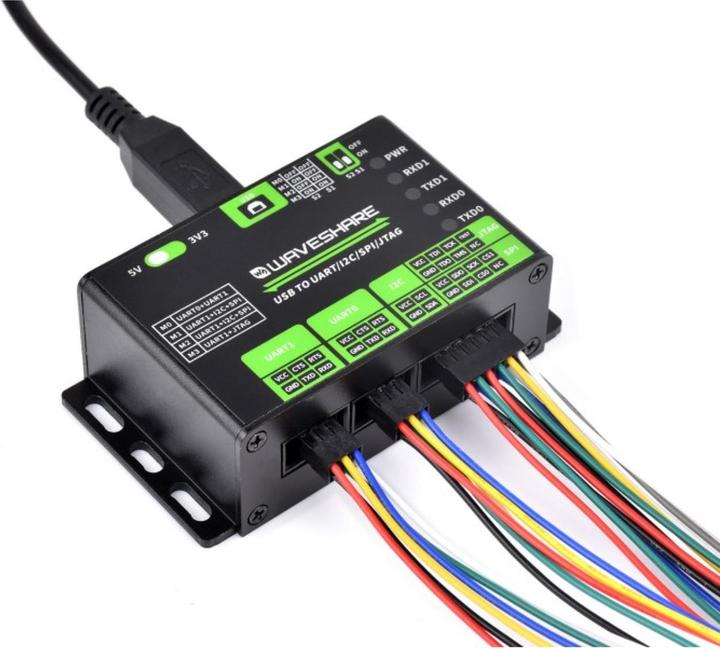

WaveShare Industrial USB to UART/I2C/SPI/JTAG converter

Ratings
BrandMore from WaveShare
Delivered between Tue, 5.8. and Wed, 6.8.
6 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

This USB to UART/I2C/SPI/JTAG converter from Waveshare is your ideal companion for connecting a variety of interfaces to your PC. It supports multiple interfaces and is compatible with 3.3V and 5V, making it a flexible solution for your projects. With built-in protection circuits and support for multiple systems, this converter is ready for demanding applications. The aluminum alloy housing provides a robust shell, while wall and rail mounting support allows for easy installation.

Features:

  • Integrated protection circuits
  • Aluminum alloy housing
  • Support for wall mounting

Application examples:

  • Industrial automation
  • Embedded systems and IoT projects

Technical details:

  • Manufacturer: Waveshare
  • Manufacturer SKU: 25411
  • Host interface: USB-Type-B
  • Power supply connection: USB-Type-B (host interface)
  • Supply voltage switchable: 3.3V, 5V
  • USB port:
  • Connector: USB-Type-B
  • Interface protection: Resettable fuse, ESD protection

UART connector:

  • Number of channels: 2
  • Connection: 6PIN IDC
  • Baud rate: 1200bps to 9 Mbps
  • Hardware flow control: CTS and RTS

I2C port:

  • Number of channels: 1
  • Connector: 12PIN IDC (the first 4PINs are I2C)

SPI connector:

  • Number of channels: 1
  • Connector: 12PIN IDC (the last 8PINs are SPI)

JTAG connector:

  • Number of channels: 1
  • Connection: 12PIN IDC (the last 8PINs are JTAG)

Dimensions: 56 x 48 x 27.6 mm
Weight: 194 g

Scope of delivery:

  • 1x Industrial USB to UART/I2C/SPI/JTAG Converter
  • 1x USB Type-A to Type-B cable 1.2 m
  • 1x 12 PIN cable ~0.2 m
  • 2x 6 PIN cable ~0.2 m.

Key specifications

Item number
39535428

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
24.10.2023

Power supply

Operating voltage
5 V

Connections

USB ports
USB-B

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 12 PIN cable ~0.2m, 1x Industrial USB to UART/I2C/SPI/JTAG converter, 1x USB Type-A to Type-B cable 1.2m, 2x 6 PIN cable ~0.2m

Product dimensions

Length
27.60 mm
Width
56 mm
Height
48 mm
Weight
194 g
