WaveShare ESP8266 Universal Raw e-Paper Driver Board WiFi

Practical universal e-Paper Driver Board with ESP8266 for directly connecting Raw E-Ink displays. With this ESP8266 Driver Board, you can connect our affordable Raw e-Paper displays (e-Paper raw panels without a circuit board) directly to the ESP8266. Waveshare already provides sample code that you can upload to the ESP8266, allowing you to upload and convert images directly via a webpage. The images can then be easily displayed on the e-Paper display.

Features of the universal Raw e-Paper Driver Board:

• This is a universal driver board for e-Paper raw panels.
• Thanks to the ESP8266, a WiFi connection to your network is possible, allowing you to conveniently transfer and display images from your PC or smartphone via WiFi.
• You can also upload your own Arduino programs to the ESP8266.
• ESP8266 Arduino compatible.
• Supports the Floyd-Steinberg dithering algorithm, enabling more color combinations and better shadow rendering for images.
• Supports common image formats: BMP, JPEG, GIF, PNG, etc.
• Detailed user manual available in English.

Technical details:

• WiFi protocol: 802.11b/g/n
• Microcontroller: ESP8266 ESP-12E
• Interface: 3-wire SPI, 4-wire SPI (standard)
• Operating voltage: 5V (via USB)
• Logic voltage: 3.3V
• Operating current: 50mA to 100mA
• Diameter of mounting holes: 2.9mm
• Weight: 15g
• Dimensions: 29.57 x 48.26mm

Included in delivery:

• 1x ESP8266 Universal Raw e-Paper Driver Board WiFi
• 1x e-Paper Raw Adapter
• 1x 24PIN FFC cable

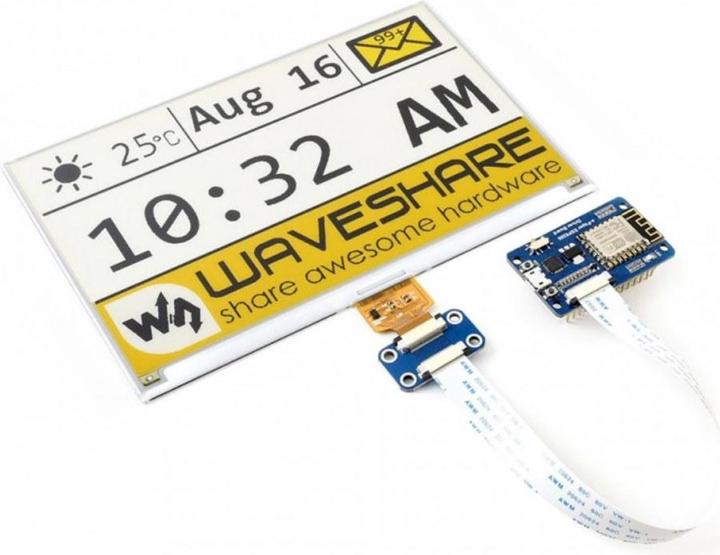

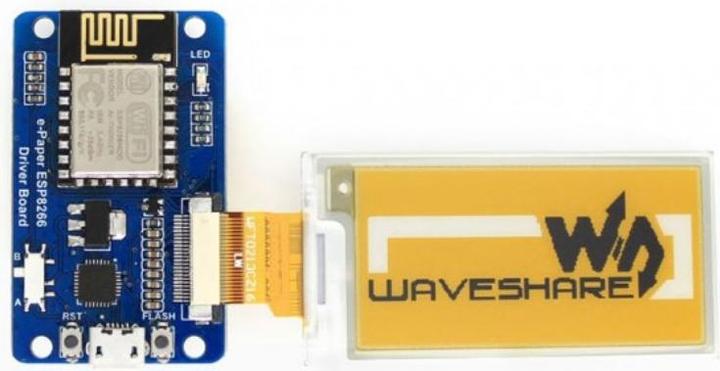

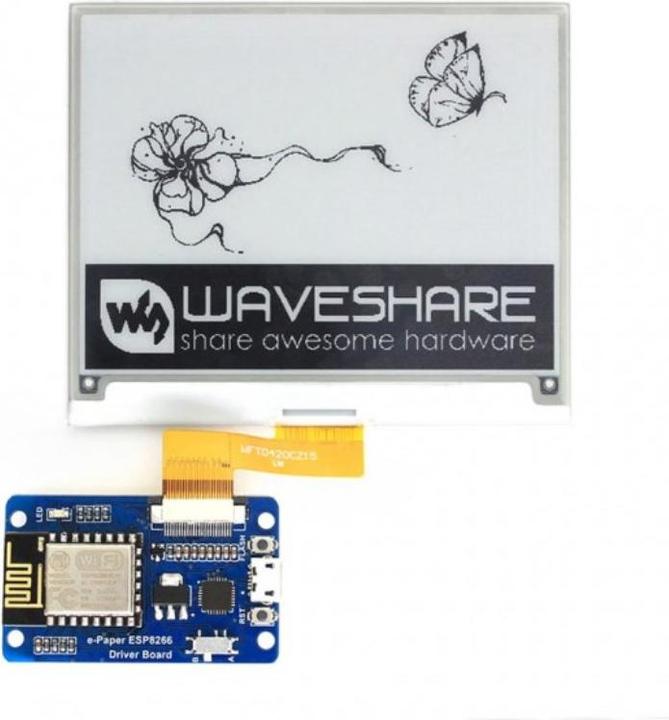

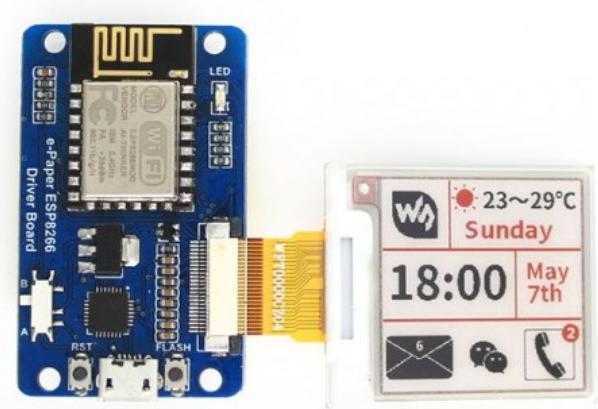

Note: The e-Paper display shown in the photos is not included in the delivery.
