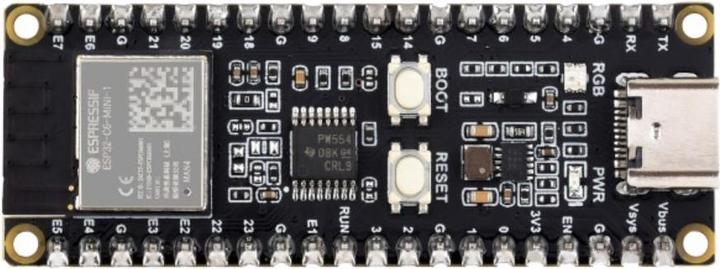

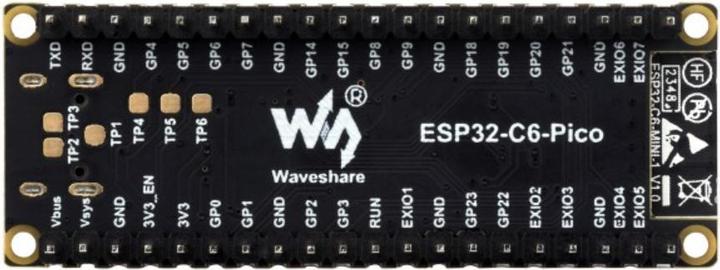

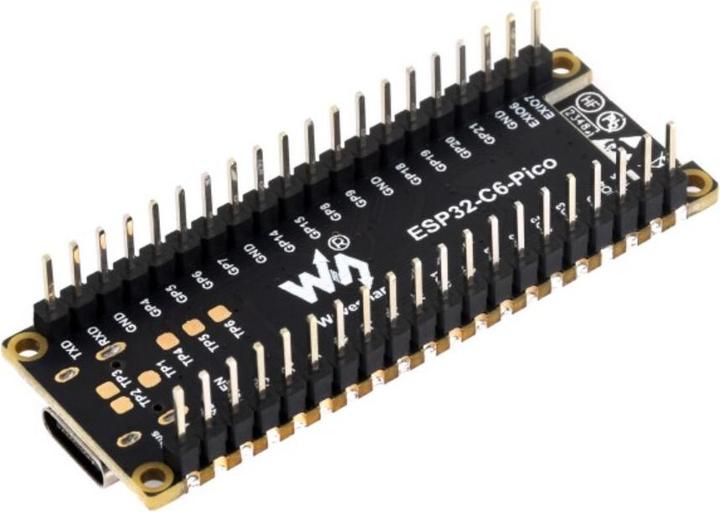

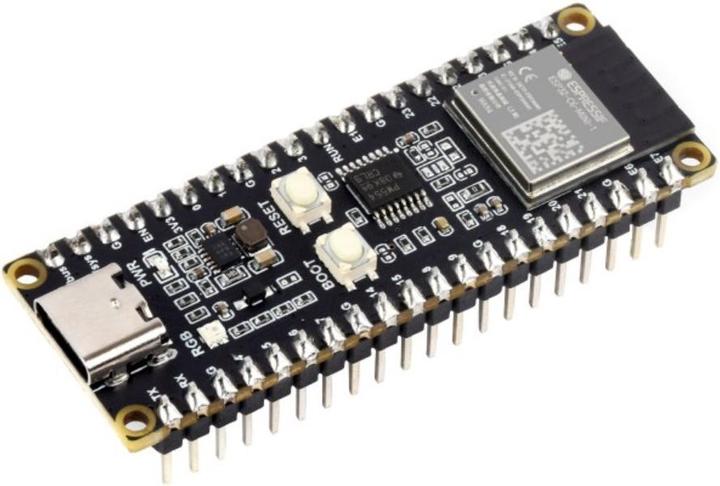

WaveShare ESP32-C6 Pico Mini development board with headers

Ratings
Delivered between Mon, 26.5. and Tue, 27.5.
More than 10 items in stock at third-party supplier
Supplied by

Product details

Discover the powerful and compact ESP32-C6 Pico Mini development board, ideal for versatile IoT applications. Equipped with the highly integrated ESP32-C6-MINI-1 chip, it features a 160 MHz RISC-V 32-bit single-core processor. This board supports WiFi 6 and Bluetooth LE for seamless wireless communication. Thanks to the USB Type-C interface, it is user-friendly and compatible with numerous peripherals through the standardized Raspberry Pi Pico pin headers. The integrated memory resources and diverse interfaces enable quick and easy development of your projects.

Recommended accessories:
USB-C magnetic charging data cable angled 1m

Features:
Equipped with ESP32-C6 chip, it supports Wi-Fi 6, BLE 5, Zigbee, and Thread.
Equipped with USB Type-C for easy connectivity.
Compatible with Raspberry Pi Pico interfaces for advanced peripherals.
Multiple power saving modes for flexible adaptation to different applications.

Application examples:
Home automation systems with wireless control.
Environmental monitoring through wireless sensor networks.
Smart lighting systems with Bluetooth control.
Portable health monitoring systems.
Educational projects for microcontroller programming.

Technical data:
Manufacturer: Waveshare
Manufacturer SKU: 26845
Processor: 160 MHz RISC-V 32-bit single-core
Memory: 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, 4MB Flash
Wireless communication: WiFi 6 (2.4 GHz), Bluetooth LE
Interfaces: USB Type-C
Operating voltage: 3.3V / USB 5V
Dimension: 57.3 x 21 x 11.5mm
Weight: 10g

Scope of delivery:
1 x ESP32-C6 Pico Mini development board with headers.

Key specifications

Development board type
Board
Memory
0.51 MB
Clock speed
160 MHz
Number of cores
1
Item number
45994450

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
23.5.2024

Development board properties

Development board type
Board
Clock speed
160 MHz
Memory
0.51 MB
Number of cores
1
Flash memory
4000 kB

Power supply

Power supply
USB power delivery
Operating voltage
5 V

Wireless transmission

Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Connections

USB ports
USB-C

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 x ESP32-C6 Pico Mini development board with headers
Additionally required (not included)
USB-C magnetic charging data cable angled 1m

Product dimensions

Length
57.30 mm
Width
21 mm
Height
11.50 mm
Weight
10 g
